Portable Temperature Machine
Name:Portable Temperature Machine;
Temperature Range: -20℃～+150 ℃;
Temperature Fluctuation: ± 0.5 ℃;
Temperature Deviation: ± 2.0 ℃;
Humidity Range: 20% ~ 98% RH;
Cooling Rate: 1 ℃ / min;
Heating Rate:3 ℃ / min;
Refrigerant:Environmental refrigerant;
Standard and Custom;
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of portable temperature machine in China, featured by quality products and low price. Welcome to buy CE approved portable temperature machine in stock here and get quotation from our factory. Contact us for discount information.

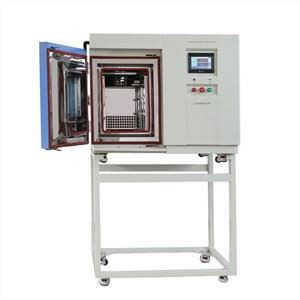

The Portable Temperature Machine is powerful, covers an area of small, exquisite and beautiful workmanship, office and laboratory ordinary door can be entered, temperature and humidity test box is the reliability test equipment for R & D department and quality detection.
Video
Parameters
| Name | Portable Temperature Machine | |
| Model | TH-50 | TH-80 |
| Internal dimension (mm) | 320*350*450 | 400*400*500 |
| Overall dimension (mm) | 800*1050*950 | 900×1100×1000 |
| Temperature range | -20℃ ~+150 ℃ | |
| Low type | Ⅰ: -40℃ Ⅱ: -70℃ Ⅲ: -86℃ | |
| Temperature fluctuations | ± 0.5 ℃ | |
| Humidity Range | 10%~95% | |
| Temperature deviation | ± 2.0 ℃ | |
| Heating rate | 3 ℃ / min | |
| Cooling rate | 1 ℃ / min | |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | |
| Temperature Resolution | ± 0.001 ℃ | |
| Exterior Material | Steel Plate with A protective coating | |
| Interior Material | SUS304 stainless steel | |
| Power Supply | AC220V 50HZ | |
| Environmental conditional | 5℃~+40 ℃ ≤85% RH | |
Details
 |  |  |
LAN & USB | Touch screen controller | 50mm Test Hole |
 |  |
Advantage
●Test hole
The temperature test machine can be used externally with the test power cord or signal line (the aperture or number of holes must be increased to indicate);
●Thermal insulation material
The thermal insulation material of the temperature test chamber is high density glass fiber cotton, the thickness of the insulation layer is 100mm, and the thermal insulation performance is good
●Window of observation
The observation window of the temperature machine is made of multi-layer hollow tempered glass, and the inner side is glued with chip conductive film (can clearly observe the test process);
