Salt spray testing is a crucial process in evaluating the corrosion resistance of materials and protective coatings. A salt spray test chamber is an essential tool for conducting these tests accurately and efficiently. In this comprehensive guide, we'll explore the intricacies of using a salt spray chamber, from setup to result analysis, helping you maximize the effectiveness of your corrosion testing procedures.

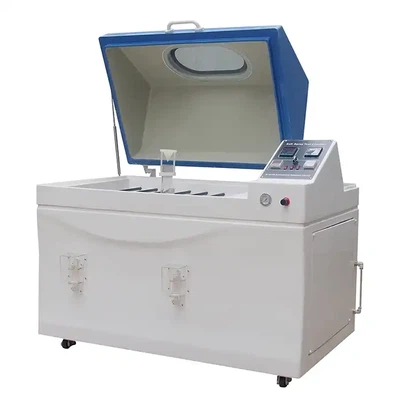

What is the Salt Spray Test Chamber?
A typical salt spray test chamber consists of several crucial elements:
- Spray nozzle: Disperses the salt solution in a fine mist
- Salt solution reservoir: Stores the corrosive salt mixture
- Humidity control system: Maintains the required moisture levels
- Temperature regulation unit: Ensures consistent testing conditions
- Specimen rack: Holds test samples in place during exposure
Operating Principles
The salt spray test chamber operates by creating a controlled corrosive environment. It atomizes a salt solution into a fine mist, which is then dispersed throughout the chamber. This saline atmosphere accelerates the corrosion process, allowing for expedited testing of materials and coatings.
Types of Salt Spray Chambers
There are various types of salt spray chambers available, including:
- Standard salt spray chambers
- Cyclic corrosion test chambers
- Prohesion test chambers
- Copper-accelerated acetic acid salt spray (CASS) chambers
Each type is designed for specific testing requirements and standards.
Preparing for Salt Spray Testing
Proper preparation is key to obtaining accurate and reliable results from your salt spray tests.
Calibrating the Salt Spray Chamber
Before initiating any tests, ensure your salt spray test chamber is properly calibrated. This involves:
- Verifying temperature and humidity settings
- Checking the salt solution concentration
- Inspecting the spray nozzle for optimal mist distribution
Preparing Test Specimens
Careful preparation of test specimens is crucial:
- Clean specimens thoroughly to remove any contaminants
- Apply protective coatings or treatments as required
- Mark specimens for easy identification post-testing
Mixing the Salt Solution
The salt solution used in the chamber typically consists of 5% sodium chloride dissolved in deionized water. Ensure the solution is mixed thoroughly and at the correct concentration for accurate testing.
Operating the Salt Spray Test Chamber
Once preparations are complete, you can begin the testing process.
Loading Specimens
Place prepared specimens on the chamber's specimen rack, ensuring they are:
- Positioned at the correct angle (usually 15–30 degrees from vertical)
- Spaced adequately to allow uniform salt fog exposure
- Secured to prevent movement during testing
Setting Test Parameters
Input the required test parameters into the chamber's control system, including:
- Test duration
- Chamber temperature
- Salt fog dispersion rate
- Humidity levels
Monitoring the Test
Throughout the testing period:
- Regularly check salt spray test chamber conditions to ensure consistency
- Monitor salt solution levels and replenish as needed
- Observe specimens periodically for any unexpected changes
