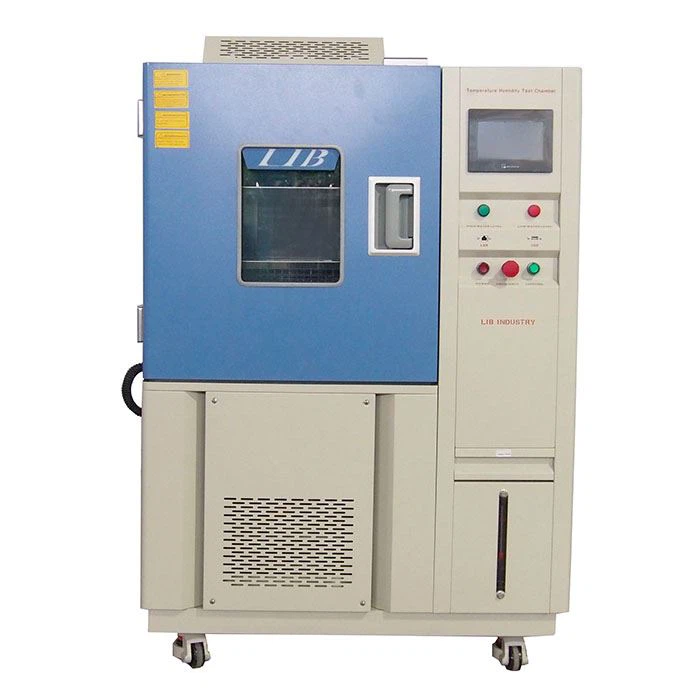

Battery High Temperature Humidity Test Chamber

LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of battery high temperature humidity test chamber in China, featured by quality products and low price. Welcome to buy CE approved battery high temperature humidity test chamber in stock here and get quotation from our factory. Contact us for discount information.



Battery high temperature humidity test chamber,Temperature and humidity cycle test is to evaluate the functional characteristics of components and batteris after circulation or storage in temperature and humidity environment, or operation function in such environment.The ability of the product to perform the specified functions under the specified conditions and within the specified time.



Specification

---

Name	Battery High Temperature Humidity Test Chamber
Model	TH-100	TH-500
Internal dimension (mm)	400*500*500	700*800*900
Overall dimension (mm)	860*1050*1620	1180*1350*2010
Capacity	100L	500L
Temperature range	-20℃ ～+150 ℃
Low type	A: -40℃   B:-70℃   C -86℃
Humidity range	20%-98%
Temperature fluctuations	± 0.5 ℃
Temperature deviation	± 2.0 ℃
Heating rate	3 ℃ / min
Controller	Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
Refrigerant	R404A, R23
Exterior material	Galvanized coated A3 steel sheet
Interior material	SUS304 stainless steel
Timing Function	0.1~999.9 (S,M,H) settable

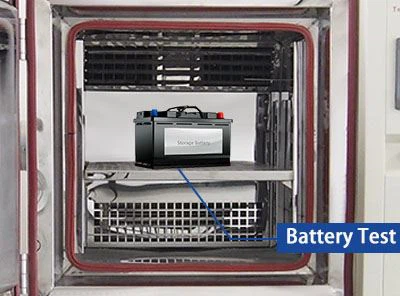

Battery Test

Can test different sizes of batteries models, internal air circulation, stable temperature and humidity range, more accurate test value



Battery Test is Introduced

---

Battery temperature humidity chamber

1. temperature control：

temperature control of the microcomputer, LCD digital display of temperature sensor, automatic display cabinet internal temperature.



2. Stable operation:

adopting a new design of the air duct more air into the wind, temperature constant temperature uniform cooling and heating are reasonable, the air cycle



3. safety design high and low temperature alarm, temperature sense fault alarm, etc



UL

---

Electric damp heat cyclic test chamber

The battery is placed in the test room and subjected to the following cycles :

A) Temp. to 70℃  ±3℃  within 30min, and heat preservation for 4h.

B) Cool the temperature to 20 ±3℃ within 30min and keep the temperature at 2h.

C) Cool the temperature to -40 ±3℃ within 30min and keep the temperature at 4h.

D) Cool the temp. to 20 ±3℃ within 30min.

E) Repeat the cycle 9 times

F) After 10 cycles, the battery is placed for 7 days to be checked.

Results: No fire, no explosion, no leakage.





About more car damp heat steady state test chamber, please contact us!
