In today's world of electronic devices and equipment, protecting against water and dust ingress is crucial. The IP68 rating stands as one of the highest standards for water and dust resistance. This article delves into the requirements for IP68 testing using an IP68 test chamber, exploring the intricacies of this rigorous certification process and its importance in various industries.
What is IP Rating?

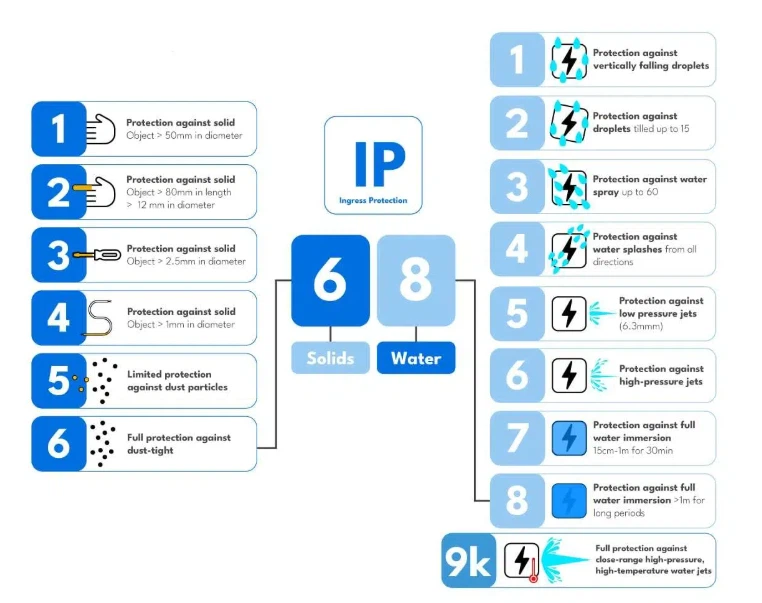

Decoding the IP Code
IP stands for Ingress Protection, a standard developed by the International Electrotechnical Commission (IEC). The two digits following "IP" indicate the level of protection against solid objects and liquids, respectively. In IP68, '6' represents the highest level of dust protection, while '8' signifies the highest water resistance rating.
The Significance of IP68
An IP68 rating indicates that a device is completely dust-tight and can withstand continuous immersion in water beyond 1-meter depth. This level of protection is crucial for devices operating in challenging environments or those frequently exposed to water and dust.
IP68 vs. Other IP Ratings
While IP67 offers protection against temporary immersion, IP68 takes it a step further by ensuring resistance to continuous submersion. This distinction makes IP68-rated devices suitable for more demanding applications and environments.
Requirements for IP68 Testing
Dust Resistance Testing
To achieve the '6' in IP68, a device must undergo rigorous dust resistance testing. This involves exposing the device to fine dust particles in a controlled environment of an IP68 test chamber for an extended period, typically 8 hours. The device must prevent any ingress of dust that could interfere with its operation or compromise safety.
Water Resistance Testing
The '8' in IP68 requires the device to withstand continuous immersion in water. The specific depth and duration of submersion can vary, but it must exceed 1 meter depth and last for at least 30 minutes. Some manufacturers may test their devices at greater depths or for longer durations to demonstrate superior water resistance.
Temperature Considerations
IP68 tests often incorporate temperature variations to simulate real-world conditions. Devices may be subjected to both cold and hot water immersion tests to ensure they maintain their water resistance across different temperature ranges.

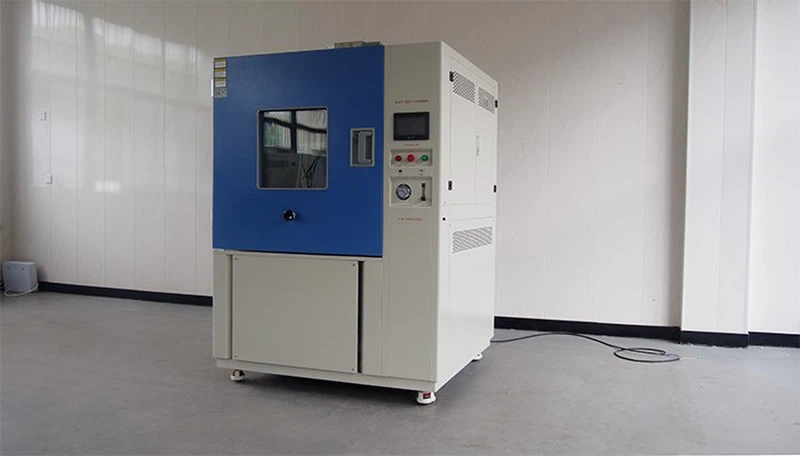

The Role of IP68 Test Chambers
Features of IP68 Test Chambers
IP68 test chambers are specialized equipment designed to simulate the conditions required for IP68 testing. These chambers can create controlled environments for both dust and water ingress testing. Advanced IP68 test chambers offer features such as adjustable water depth, temperature control, and automated test cycles.
Importance of Precision in Testing
The accuracy and reliability of IP68 test chambers are paramount. These chambers must provide consistent and repeatable test conditions to ensure the validity of IP68 certifications. Manufacturers and testing facilities rely on high-quality IP68 test chambers to conduct thorough and reliable assessments of device protection.
Customization Options
Many IP68 test chambers offer customization options to meet specific testing requirements. This can include adjustable chamber sizes, integration with other environmental testing capabilities, and specialized fixtures for testing various device types.
|
Model |
DI-800 |
DI-1000 |
DI-1500 |
DI-2000 |
|
Temperature Range |
Ambient ~ +50℃ |
|||
|
Humidity Range |
< 30% RH |
|||
|
Normal Wire Diameter |
50um |
|||
|
Nominal Width of a Gap Between wires |
75um |
|||
|
Blowing Time |
0 ~ 99H59M |
|||
|
Model |
R78-600 |
|
Pressure |
50m water depth pressure |
|
Open mode |
Pneumatic lid |
|
Water Supply System |
Storage water tank, Automatic water supply |
Industries Relying on IP68 Testing
Consumer Electronics
The consumer electronics industry has embraced IP68 ratings, particularly for smartphones, smartwatches, and other wearable devices. These ratings provide consumers with confidence in their devices' ability to withstand accidental water exposure and use in dusty environments.
Industrial and Manufacturing
In industrial settings, IP68-rated equipment is essential for ensuring reliable operation in harsh environments. This includes devices used in outdoor installations, marine applications, and manufacturing processes where exposure to water and dust is common. Using an IP68 test chamber ensures that these devices meet the necessary standards by simulating the extreme conditions they will encounter, allowing manufacturers to verify their durability and performance before deployment.
Military and Defense
Military and defense applications often require equipment that can operate in extreme conditions. IP68-rated devices are crucial for ensuring communication systems, sensors, and other critical equipment can function reliably in diverse and challenging environments.
Challenges in IP68 Testing
Maintaining Seal Integrity
One of the primary challenges in achieving an IP68 rating is maintaining the integrity of seals and gaskets over time. Devices must be designed to withstand repeated exposure to water and dust without degradation of their protective measures.
Balancing Protection and Functionality
Incorporating IP68 protection can sometimes conflict with other design requirements, such as device aesthetics or the need for external ports. Manufacturers must find innovative solutions to balance protection with functionality and user experience.
Evolving Standards and Requirements
As technology advances and user expectations evolve, the standards for IP68 testing may become more stringent. Manufacturers and testing facilities must stay abreast of these changes and adapt their testing procedures accordingly.
Future Trends in IP68 Testing
Enhanced Testing Methodologies
The future of IP68 testing may involve more sophisticated testing methodologies that better simulate real-world conditions. This could include combined environmental tests that assess water and dust resistance alongside other factors such as temperature cycling, vibration, and impact resistance.
Integration with IoT and Smart Technologies
As the Internet of Things (IoT) continues to grow, IP68 testing may evolve to address the specific needs of connected devices. This could include assessing the impact of water and dust exposure on wireless connectivity and sensor performance.
Sustainability Considerations
With increasing focus on environmental sustainability, future IP68 testing may incorporate assessments of a device's ability to maintain its water and dust resistance while using eco-friendly materials and designs.
Conclusion
IP68 testing plays a crucial role in ensuring the reliability and durability of devices across various industries. The rigorous requirements for achieving an IP68 rating demand precision in testing methodologies and equipment. As technology continues to advance, the importance of IP68 test chambers and comprehensive testing procedures will only grow, driving innovation in both product design and testing capabilities.
Contact Us
For manufacturers and industries requiring high-quality environmental testing solutions, including IP68 test chambers, LIB Industry offers comprehensive turn-key solutions. From research and design to production, commissioning, and training, LIB Industry provides complete products and services tailored to customer requirements.
To learn more about our IP68 test chambers and other environmental testing solutions, please contact us at info@libtestchamber.com. Our team of experts is ready to assist you in meeting your testing needs and ensuring your products meet the highest standards of protection and reliability.
