An AGREE Vibration Test Chamber is a type of environmental testing chamber that combines both vibration testing and environmental conditions (such as temperature, humidity, and pressure) to assess the durability and performance of equipment or materials. These chambers are used to simulate real-world conditions where a device or material may be subjected to both mechanical vibration and extreme environmental factors simultaneously.
The AGREE method of testing is an acronym for The Department of Defense Advisory Group on Reliability of Electronics Equipment. AGREE chambers were originally used to perform specific tests on the reliability of military equipment, but are now more generally used in many other industries.
Main Features of an AGREE Vibration Test Chamber:
- Vibration Simulation

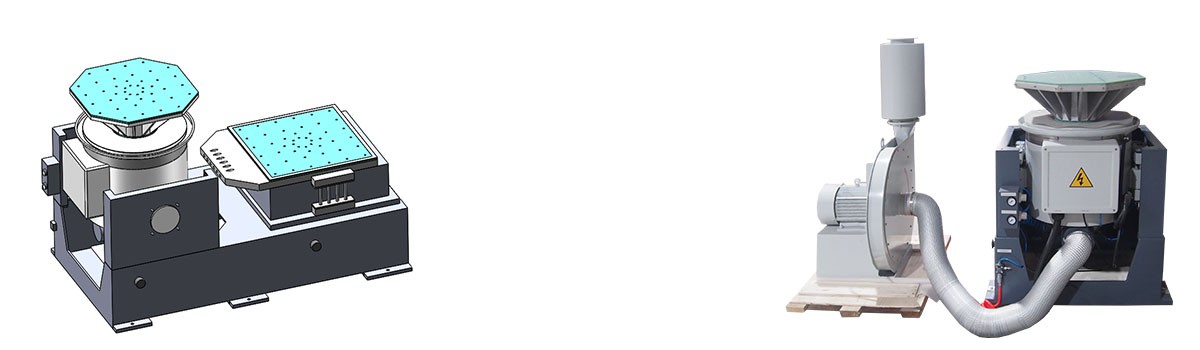

The chamber includes a vibration table or shaker system that simulates different types of mechanical vibrations, such as sinusoidal, random, or shock vibrations. These vibrations can mimic those encountered during transportation, operation, or exposure to external forces (e.g., from machinery or vehicles).
- Environmental Control
Like other test chambers, an AGREE Vibration Test Chamber has systems for controlling temperature, humidity, and pressure. This is critical for testing how products or materials react to environmental stressors like extreme heat or cold, moisture, or high-pressure conditions while also undergoing vibration.
- Simultaneous Vibration and Environmental Stress Testing
One of the key advantages of this type of chamber is that it allows for combined environmental testing, where devices can undergo both vibration and environmental stress at the same time. This simulates the real-world conditions in which many products need to perform reliably, such as in automotive engines, aerospace components, or consumer electronics.
- Data Monitoring and Analysis
The chamber is equipped with sensors and monitoring equipment to track performance during tests, including data on vibration intensity, temperature, humidity, and pressure. These systems help evaluate how the product withstands mechanical stresses and environmental conditions simultaneously.
- Safety Features
Given the potential for high-intensity vibration and varying environmental conditions, AGREE Vibration Test Chambers are often designed with safety features to prevent damage to both the test samples and operators. These may include vibration dampers, overpressure relief valves, and temperature regulation systems to ensure safe testing.
Applications:
Aerospace: Testing components that will experience vibration during launch or flight.
Automotive: Evaluating the durability of vehicle parts that are exposed to both vibration (e.g., from the engine) and environmental conditions (e.g., heat or moisture).
Electronics: Ensuring that electronic devices remain functional under both physical vibrations and environmental changes, often used for rugged electronics or products meant for outdoor use.
Military: Testing equipment that must endure harsh operational environments, including vibrations and varying environmental factors like extreme temperatures.

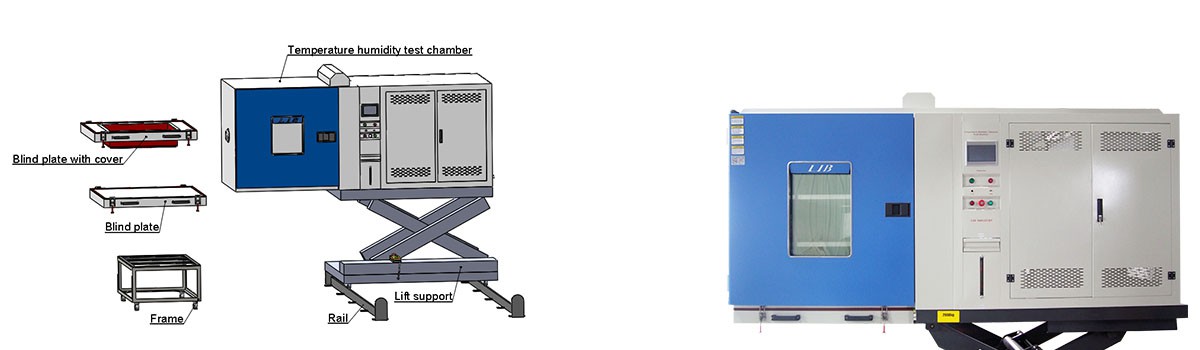

LIB AGREE Vibration Test Chamber
|
Temperature Range |
-50℃ ～ +150 ℃ |
|
Humidity Range |
30% ~ 98% RH |
|
Cooling Rate |
5 ℃ / min |
|
Heating Rate |
5 ℃ / min |
|
Rated Force of Vibration |
1000kgf |
|
Frequency Range of Vibration |
2 to 4000 Hz |
Looking for precise and reliable environmental testing solutions? Our state-of-the-art environmental test chambers provide the accuracy and performance you need for all your testing requirements. Whether you're testing for temperature, humidity, vibration, or other environmental factors, we've got you covered. Reach out today for more information about AGREE Vibration Test Chamber and to request a quote. Get in touch now and ensure your products meet the highest standards!
