Definition
Thermal Shock Chamber also called temperature shock testing or temperature cycling exposes products to alternating low and high air temperatures to accelerate failures caused by repeated temperature variations during normal use conditions. The transition between temperature extremes occurs very rapidly during thermal shock testing, greater than 15 °C per minute. Alternatively, temperature cycle testing uses slower rates of change between high and low temperatures.
 |  |
Thermal Shock Chamber,Equipment with single or multiple chambers may be used to perform thermal shock testing. When using single chamber thermal shock equipment, the products or samples remain in one chamber and the chamber air temperature is rapidly cooled and heated.
This usually results in a slower rate of change in the product response temperature as the entire chamber must be cooled down and heated up. However larger products can be tested in single compartment chambers.
Some equipment uses separate hot and cold chambers with an elevator mechanism that transports the products between two or more chambers. This results in a more rapid rate of change in the air temperature. However, there is a limit to the size and weight than can be put in a chamber with an elevator mechanism.
Description

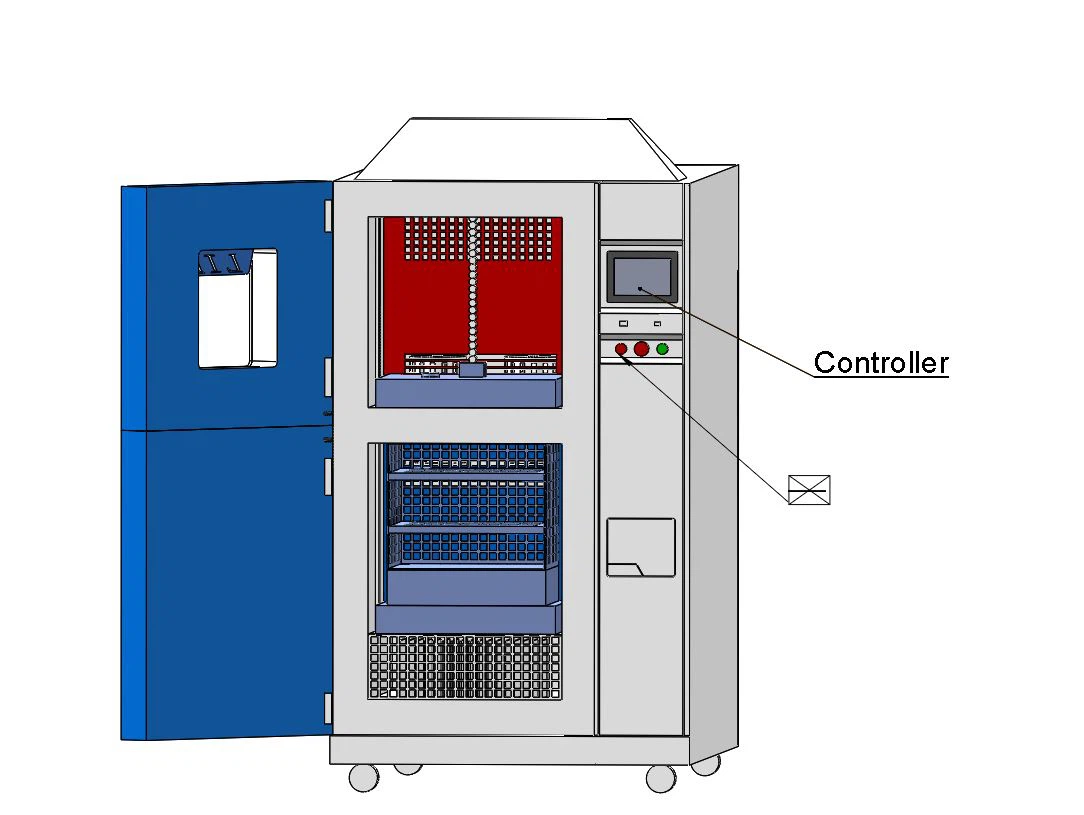

Thermal Shock Chamber
Smooth sample elevator transfer between cold chamber to hot chambers
Temperature recovery time less than 15 minutes
Programmable color LCD touch screen controller
Mechanical compression refrigeration system
Casters, shelf, and cable port are standard
Lamp inside of chamber
Ethernet and USB(option)
Large viewing window
Adjustable and removable sample shelves
Safety protection system
CE mark, ISO17025 calibration
