In today's competitive market, ensuring that your products can withstand rain, splashes, and even high-pressure water jets is critical. Electronics, automotive components, and industrial devices often face harsh real-world conditions, and a single failure can harm your brand reputation or lead to costly recalls. Understanding and validating IPX5 waterproof capabilities isn't just a compliance checkbox-it's essential for reliability and consumer confidence.

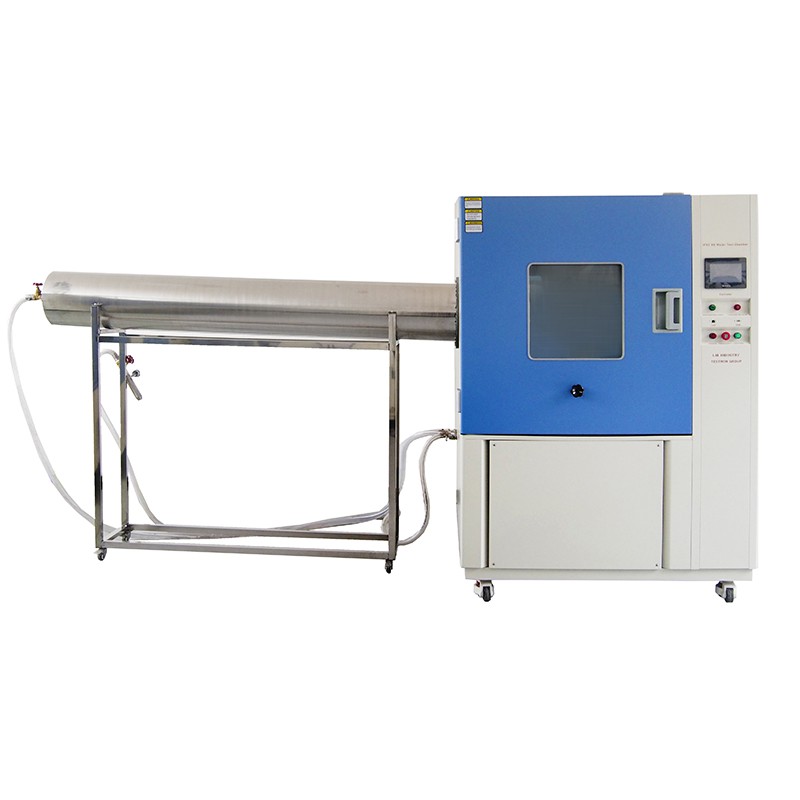

LIB's IPX5/IPX6 Water Jet Test Chambers provide precision-controlled, standards-compliant waterproof testing that saves time, energy, and laboratory space. By integrating high-accuracy nozzle systems, intelligent flow control, and durable construction, LIB ensures every test run is repeatable and aligned with global regulations. Whether you're testing small sensors or large automotive components, LIB delivers consistent results that you can trust.
|
|
|
How the LIB IPX5 Water Jet Test Chamber Brings Long-Term Advantages
 |
|
|
Model |
R56-800 |
|
Workroom dimension (mm) |
800*800*800 |
|
External dimension (mm) |
950*3150*1800 |
|
Interior Volume (L) |
510 |
|
Diameter of Turntable (mm) |
600 |
|
Turntable Rotation Speed |
0~7r/min (Adjustable) |
|
Internal Diameter of IPX5 Nozzle |
6.3 mm |
|
Internal Diameter of IPX6 Nozzle |
12.5 mm |
|
Water Flow Rate IPX5/ IPX6 |
12.5L/min ±5% / 100L/min ±5% |
|
Controller |
Programmable color LCD touch screen controller, Ethernet connection |
|
Water Supply System |
Water tank, booster pump, Automatic water supply, Water purification system |
|
Safety Device |
Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
|
Exterior Material |
Steel Plate with protective coating |
|
Interior Material |
SUS304 stainless steel |
|
Observation Window |
Double layer insulating glass with wiper |
Standards Compliance
To meet international waterproofing standards, the chamber follows IEC 60529 for IPX5 and IPX6 testing:
IPX5: 6.3 mm nozzle, 12.5 L/min flow, 30–100 kPa pressure, 2.5–3 m spray distance, minimum 3 minutes.
IPX6: 12.5 mm nozzle, 100 L/min flow, 100 ± 5 kPa pressure, same spray distance, minimum 3 minutes.
Additional compliance with ISO 20653 and DIN 40050‑9 ensures realistic automotive exposure testing, including high-speed rain and underbody spray scenarios.
Test Precision & Repeatability
Nozzle Accuracy: Machined to maintain a 40 mm spray core at 2.5 m.
Flow Control: Electromagnetic flowmeter with PID control continuously adjusts water flow for exact compliance.
Turntable Rotation: Height-adjustable 350–500 mm, 1 r/min, ensuring uniform water coverage.
Durability & Operational Efficiency
SUS304 stainless steel interior resists corrosion under constant water exposure.

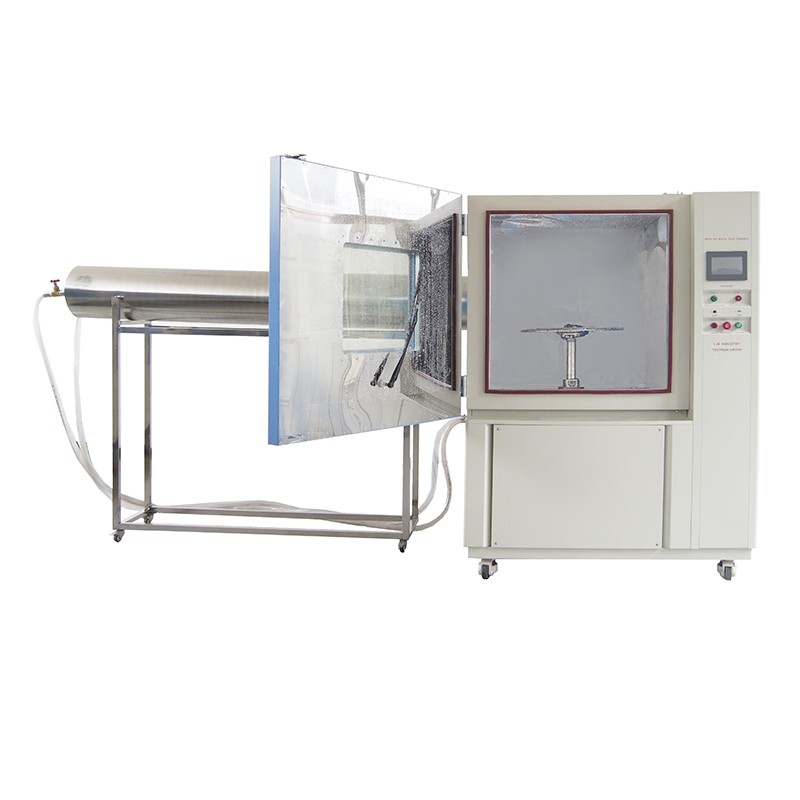

Built-in LED lighting and transparent window allow live observation.
Automated IPX5/IPX6 changeover and internal power supply support real-time powered testing of electronics.

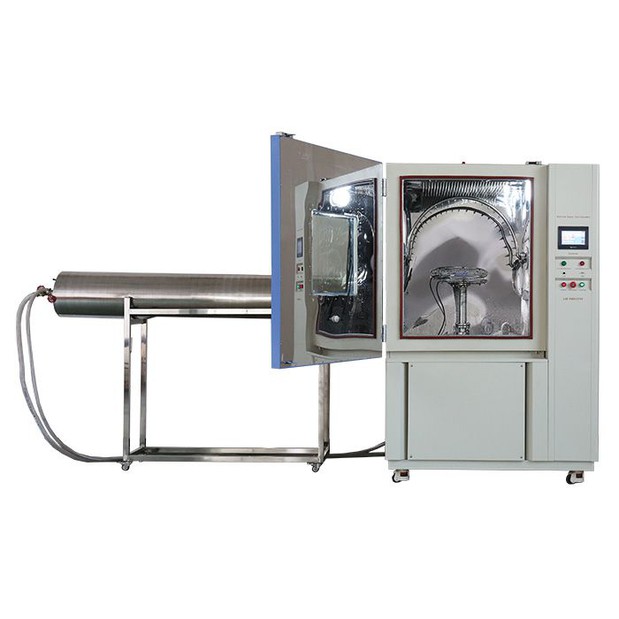

Multi-level integrated testing capability of LIB's Combined Test Chamber (IPX1, X2, X3, X4, X5, X6)
|
|
|

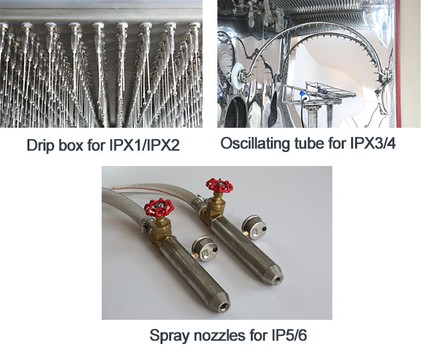

The chamber integrates drip boxes for IPX1 and IPX2, oscillating tubes for IPX3 and IPX4, and high-pressure nozzles for IPX5 and IPX6 within a single unit. This integration significantly reduces laboratory footprint and simplifies operations by combining multiple testing standards into one platform.
Its automatic water circulation system features a closed-loop recycling design, which saves water and energy while supporting eco-friendly operation. This ensures consistent water usage and minimizes resource waste during repeated testing.
The adjustable turntable can support up to 50 kg of load and includes a tilting function specifically designed to meet the requirements of IPX2 testing. This flexibility allows a wide range of products to be tested under realistic conditions.
Comprehensive multi-angle spray systems are built to simulate vertical drips, oblique rainfall, and powerful jet impacts. These configurations ensure that diverse product forms and structures can be tested under conditions that reflect real-world exposure.
Additionally, a transparent observation window equipped with LED lighting provides real-time monitoring during testing. This design not only improves operator visibility but also facilitates accurate experiment logging and documentation.
Contact LIB Industry to request the full LIB INDUSTRY.pdf for detailed product information.
LIB's Comprehensive Service for Waterproof Test Chambers
Long-Term Reliability: Durable stainless-steel interiors and robust components minimize maintenance.
Warranty & Support: 3-year warranty, lifetime maintenance, and free replacement if issues cannot be resolved remotely. 24/7 English-speaking technical team with 2-hour response and 7–15 day on-site spare delivery.
Customization: Power-on testing, adjustable turntables, and optional optical holes or cable shafts tailored to unique product requirements.
With LIB's IPX5/IPX6 Water Jet and multi-level IPX chambers, manufacturers can validate waterproof performance accurately, efficiently, and safely. By combining precision engineering, automated control, and long-term service, LIB ensures your products withstand even the harshest water exposure while meeting global standards.
Contact LIB Industry today to configure your IPX5/IPX6 waterproof testing solution and protect your product's reliability and brand reputation.
