When it comes to environmental testing for military and commercial equipment, MIL-STD-810 is the gold standard. This comprehensive set of test methods ensures that products can withstand the harshest conditions they might encounter during their lifecycle. One crucial aspect of these tests is the operating temperature range. In this article, we'll delve into the specifics of MIL-STD-810 operating temperatures and explore how MIL STD 810 test chambers play a vital role in this process.
Operating Temperature Ranges in MIL-STD-810
1. Basic Operational Temperature Range
The MIL-STD-810 defines several temperature ranges for different scenarios and environments. The basic operational temperature range typically spans from -32 °C to 49 °C (-25.6°F to 120.2°F). This range covers most terrestrial environments where military and commercial equipment might be deployed.
2. Extended Temperature Ranges
For more extreme conditions, the standard outlines extended temperature ranges. These can go as low as -51 °C (-59.8°F) for arctic environments and as high as 71 °C (159.8°F) for hot, dry climates. It's worth noting that these ranges can vary depending on the specific test method and the intended use of the equipment.
3. Storage and Transit Temperature Considerations
MIL-STD-810 also addresses storage and transit conditions, which often have wider temperature ranges than operational requirements. For instance, equipment might need to withstand temperatures from -57 °C to 71 °C (-70.6°F to 159.8°F) during storage or transportation.
LIB Industry Hot MIL STD 810 test chambers

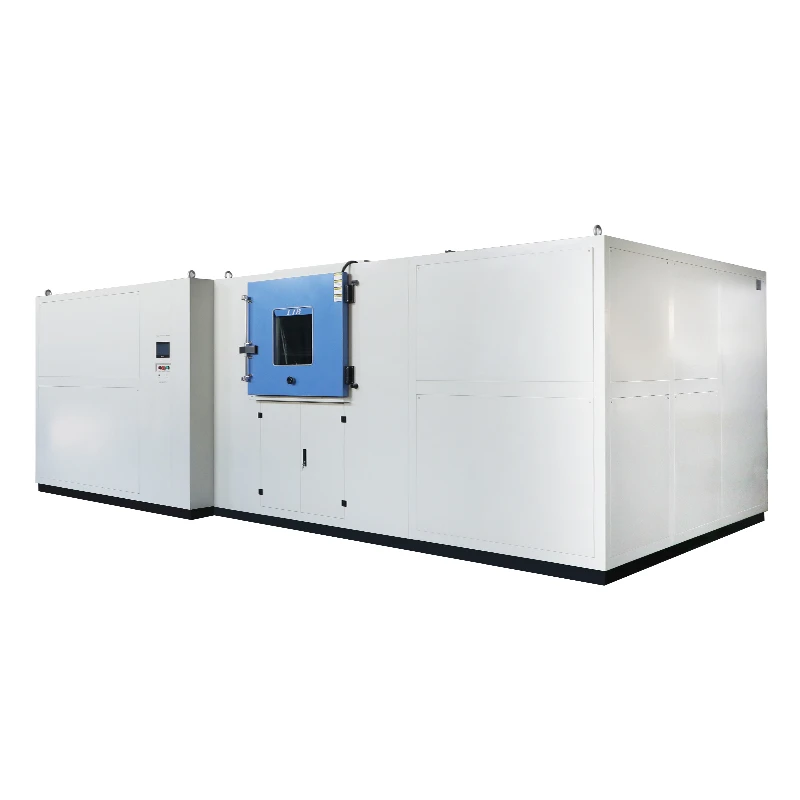

Simulates harsh sand and windblown dust environments, validates enclosure sealing and IP-rated durability

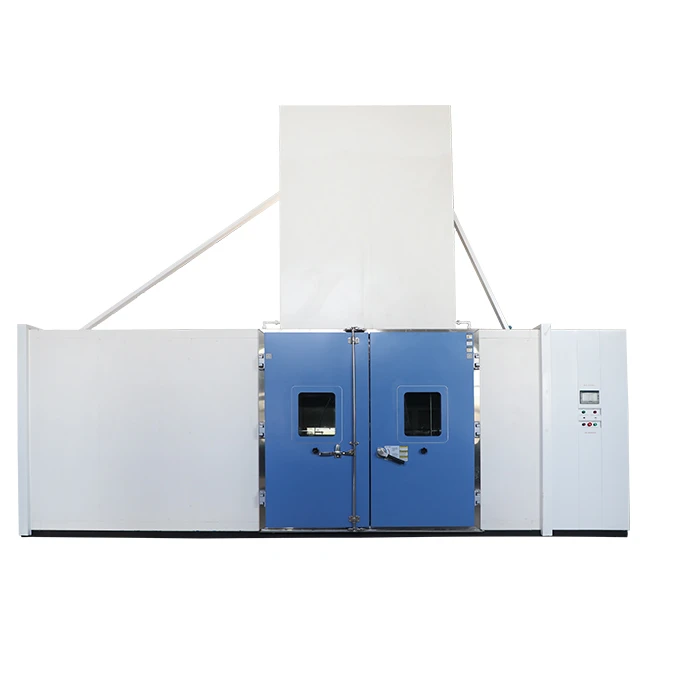

Reproduces driving rain and water ingress conditions, protects your products from real-world downpours

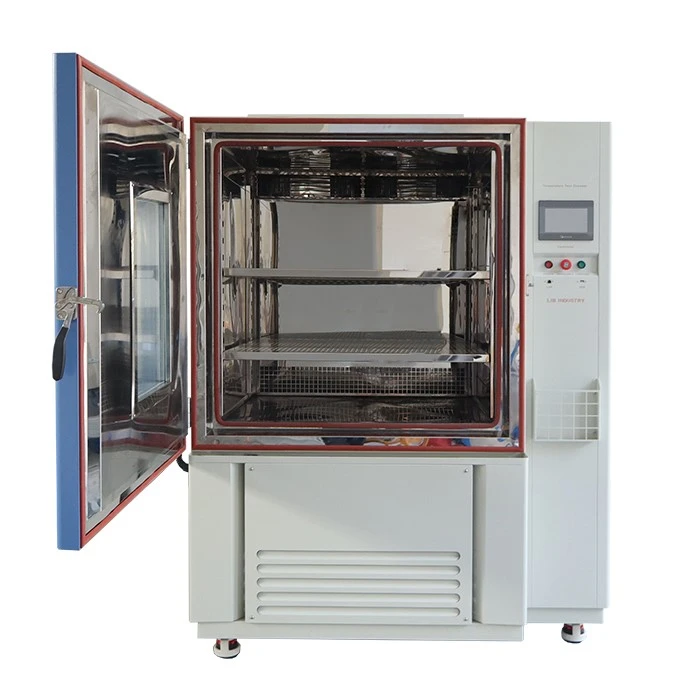

Accelerates material aging under heat, cold, and humidity, predicts long-term composite reliability

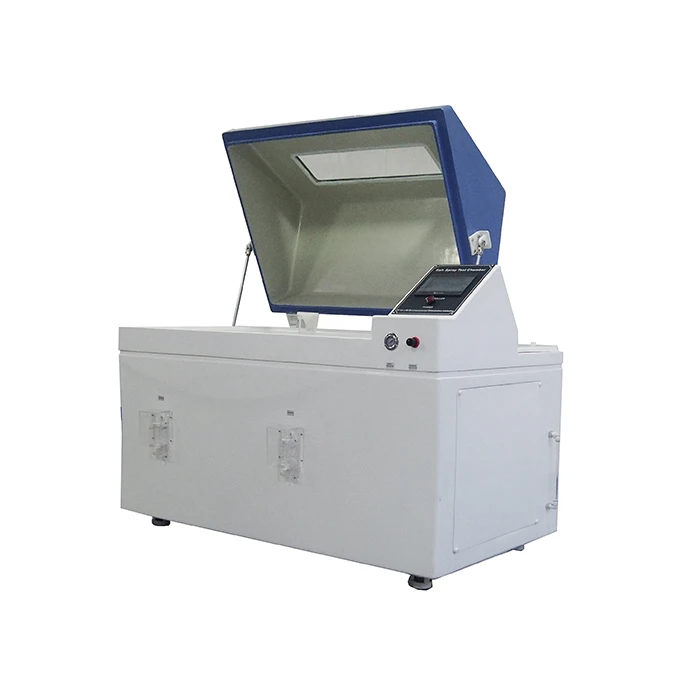

Delivers precise, repeatable corrosion testing, safeguards metal and coating performance in coastal or industrial air

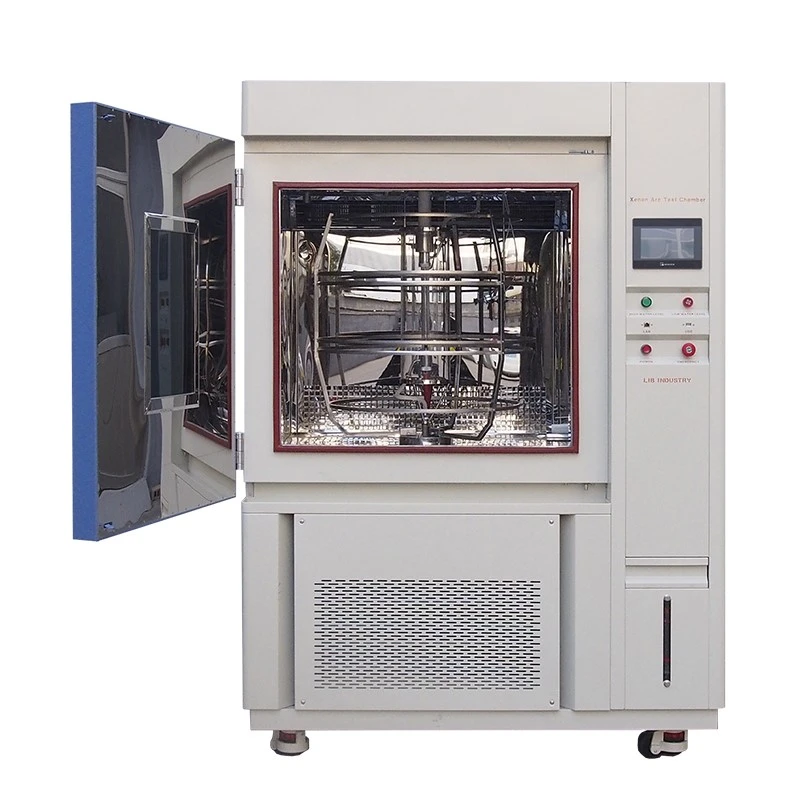

Recreates intense UV and thermal sunlight exposure, exposes fading, cracking, and degradation before customers do

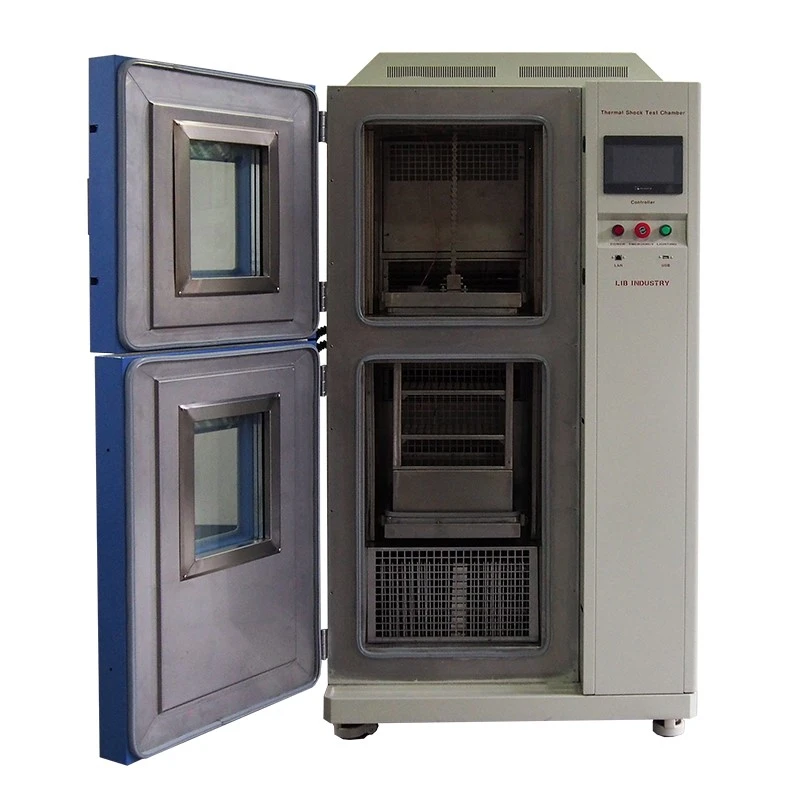

Cycles extreme hot-to-cold transitions in seconds, stress-tests product durability against sudden thermal shock
The Role of Environmental Test Chambers
1. Simulating Extreme Conditions
To accurately test equipment according to MIL-STD-810 specifications, MIL STD 810 test chambers are indispensable. These sophisticated machines can precisely simulate a wide range of temperature conditions, allowing manufacturers to subject their products to the exact scenarios outlined in the standard.
2. Types of Temperature Tests
MIL-STD-810 prescribes various temperature-related tests, including high temperature, low temperature, and temperature shock tests. Each of these requires specific capabilities from the test chamber. For instance, temperature shock tests may require rapid transitions between extreme hot and cold temperatures, necessitating advanced chamber designs.
3. Customization and Flexibility
Modern MIL-STD-810 test chambers offer a high degree of customization to meet specific testing needs. They can be programmed to run complex temperature profiles, simulating real-world conditions with remarkable accuracy. This flexibility is crucial for thorough and reliable environmental testing.

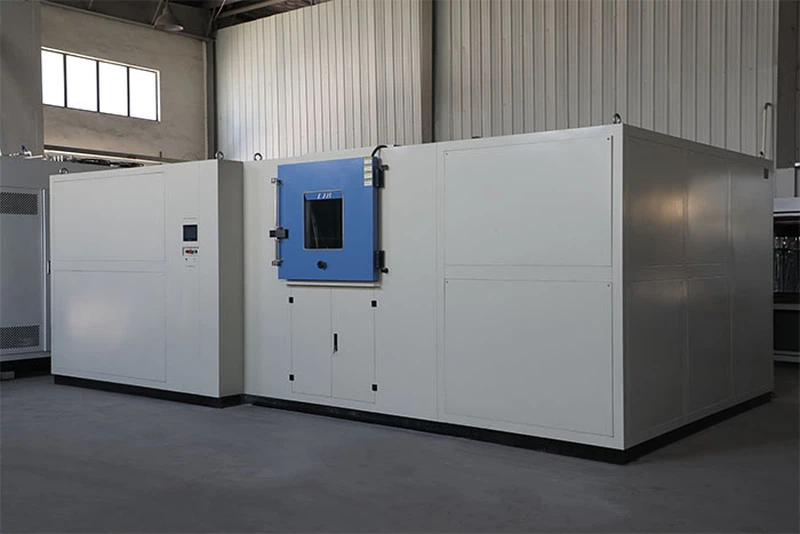

LIB MIL-STD-810 Dust Test Chamber
|
Air velocity |
1.5 -8.9m/s |
|
Concentration of dust |
10.7±7g/ m³ |
|
Dust particles |
＜ 150μm |
|
Blowing sand |
|
|
Air velocity |
18.0 -29.0m/s |
|
Concentration of sand |
0.18+0.2g/m³; 1.1+0.3g/m³; 2.2+0.5g/m³ |
|
Sand particles |
149μm - 600μm, 600μm - 850μm |
|
Controller |
Programmable color LCD touch screen controller, Ethernet connection |
|
Testing Platform Diameter |
600mm |
|
Door Lock |
Electromagnetic lock |
|
Testing Platform Speed |
1-7 r.p.m |
1. High-Velocity Airflow System

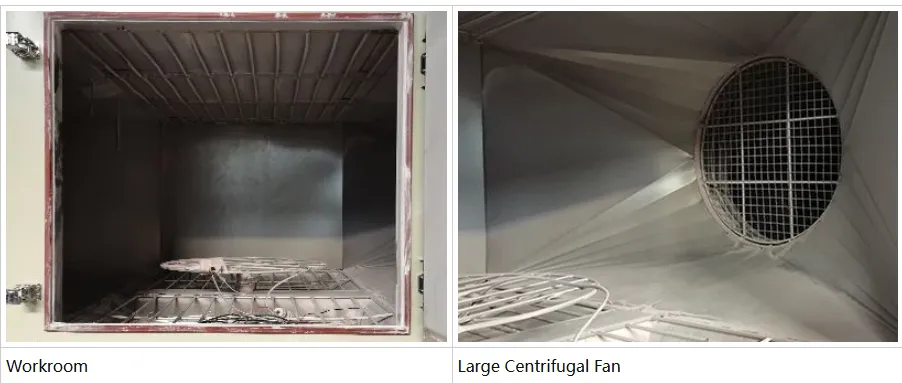

LIB integrates multiple centrifugal blowers with optimized ducting to achieve airflow speeds of 18–29 m/s, ensuring consistent distribution throughout the test chamber. Advanced cooling solutions, including forced-air and optional water-assisted systems, safeguard motor performance during prolonged operation.
2. Durable Structural Design
The chamber interior is constructed from SUS304 stainless steel, providing strong resistance to sand abrasion. The outer casing is treated
with an anti-static coating to minimize dust accumulation and enhance operational safety.
3. Intelligent Control Interface
Equipped with a color touchscreen controller, the system enables precise programming of airflow velocity, exposure duration, rotation speed (1–7 rpm), and pause cycles. Test parameters are automatically recorded for easy tracking and compliance.
4. Real-Time Monitoring System

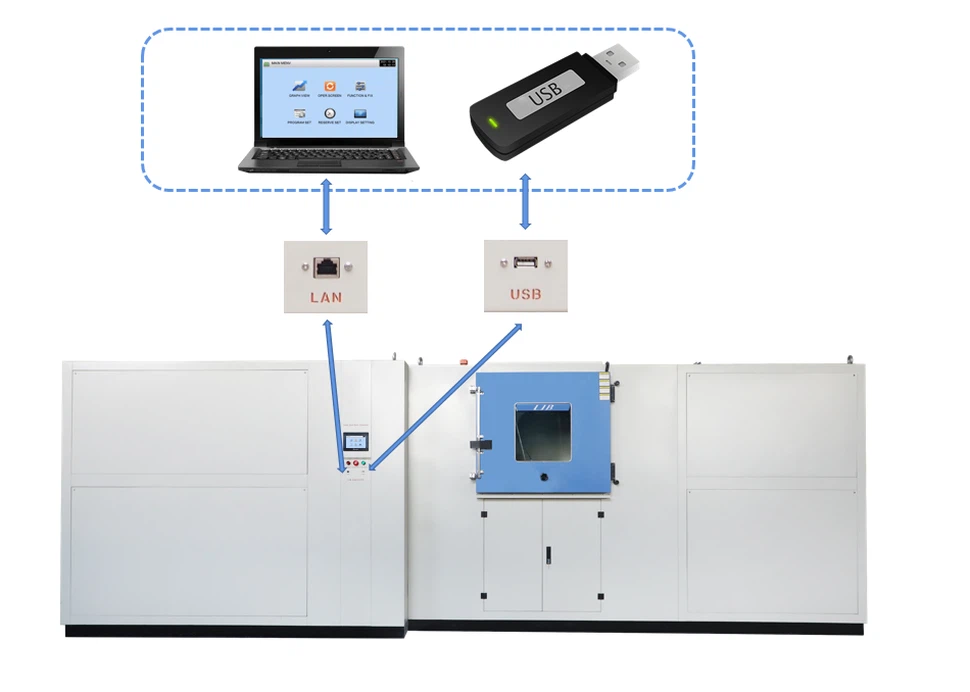

Key conditions such as airflow velocity, particle density, temperature, and humidity are continuously monitored to ensure compliance with MIL-STD-810H standards. Remote access and data export are supported via Ethernet connectivity.
As Robert forom United Arab Emirates noted, LIB Blowing Dust MIL-STD-810 Test Chambers deliver reliable performance in dust, sand, and rain testing, with smooth operation and easy data export for efficient testing.
》》》To receive comprehensive or customized solutions and pricing for the MIL-STD-810H Method 510 Dust and Sand Test Equipment, please contact us at info@libtestchamber.com.
Conducting MIL-STD-810 Temperature Tests
1. Test Planning and Preparation
Before initiating any MIL-STD-810 temperature test, meticulous planning is essential. This involves determining the appropriate test methods, defining the specific temperature ranges, and preparing the test item. The standard provides detailed guidelines for each step, ensuring consistency and reliability in testing procedures.
2. Test Execution
During the actual test, the equipment is placed in the MIL STD 810 test chamber and subjected to the predetermined temperature conditions. The duration and cycling of temperatures are carefully controlled to align with the MIL-STD-810 requirements. Throughout the test, the item's performance is monitored and recorded.
3. Data Analysis and Reporting
After completing the temperature tests, the data collected is thoroughly analyzed. This analysis helps determine whether the equipment meets the specified performance criteria under the tested conditions. Comprehensive reports are then generated, documenting the test procedures, results, and any observed anomalies.
Implications for Product Design and Development
1. Influencing Material Selection
The rigorous temperature requirements of MIL-STD-810 significantly influence material selection in product design. Engineers must choose materials that can maintain their structural integrity and functionality across the entire specified temperature range. This often leads to the use of advanced composites and specially formulated alloys.
2. Thermal Management Strategies
Designing products to operate within MIL-STD-810 temperature ranges often requires sophisticated thermal management strategies. This may include heat sinks, cooling systems, or innovative insulation techniques. The goal is to ensure that internal components remain within their operational temperature limits, even when the external environment reaches extremes.
3. Reliability and Longevity Considerations
By subjecting products to MIL-STD-810 temperature tests, manufacturers can gain valuable insights into long-term reliability and potential failure modes. This information is crucial for refining designs, improving durability, and extending the operational lifespan of equipment destined for challenging environments.
Beyond Temperature: Other Environmental Factors
1. Humidity and Temperature Interactions
While temperature is a critical factor in MIL-STD-810 testing, it doesn't exist in isolation. The standard also addresses humidity, recognizing that the combination of temperature and moisture can create particularly challenging conditions for equipment. Advanced MIL STD 810 test chambers can simulate these complex temperature-humidity scenarios.
2. Altitude Considerations
Altitude can significantly affect how equipment performs at different temperatures. MIL-STD-810 includes specific tests that combine altitude and temperature variations, requiring specialized chamber capabilities to accurately replicate these conditions.
3. Synergistic Effects
MIL-STD-810 acknowledges that environmental factors often work in concert to stress equipment. Some test procedures combine multiple environmental stresses, such as temperature, humidity, and vibration, to more accurately represent real-world conditions. This holistic approach ensures that products are truly ready for the challenges they'll face in the field.
Conclusion
Understanding the operating temperature requirements of MIL-STD-810 is crucial for anyone involved in the design, manufacture, or procurement of military and high-performance commercial equipment. The standard's comprehensive approach to temperature testing, along with other environmental factors, ensures that products can withstand the most challenging conditions they might encounter.
MIL STD 810 test chambers play a pivotal role in this process, providing the means to accurately simulate and test against these rigorous standards. As technology advances and global conditions evolve, the importance of thorough environmental testing will only grow, making MIL-STD-810 and the sophisticated test chambers used to implement it more relevant than ever.
Contact LIB industry
If you're in the market for a MIL-STD-810 Test Chamber, whether it's a MIL-STD-810H Method 510Dust And Sand Test Chamber, MIL STD 810H Rain Test Chamber, Method 501.7/502.7/507 Temperature And Humidity Aging Chamber, Method 509 Salt Fog Test Chamber, Method 505 Solar Radiation Test Chamber, or Method 503.7 Temperature Shock Test Chamber, don't hesitate to reach out.
We're ready to discuss your test methods, sample size, chamber capacity, and space requirements, and help you find the right MIL-STD-810 testing solution for your laboratory.
