IPX1 IPX2 IPX3 IPX4 water spray Chamber
The water spray Chamber built with a water re-circulation system that reduced water use and a series of water pipes. Incorporated rotating turntable can promote even spray of water over the surface of the products under testing. Automatic water supply ensures adequate supply of water and automatic testing. All models are upgrade to programmable controller and Ethernet access that provides simple operation and control. Various size and configuration to suit many types of test conditions.

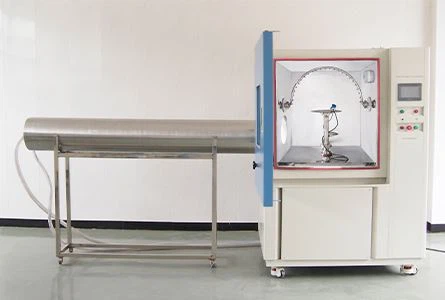

IPX5 IPX6 Water Jetting Test Chamber
IPX5 IPX6 Water Jetting Test Chamber is applied to test the watertightness of enclosures of automotive parts, outdoor lamps and electronics parts.
The chambers built with the water tightness of sealed components such as head lamp, Power connector. Waterproof power connector in the test room can easily supply electricity to the specimens.
IPX5 and IPX6 functions on one test chamber,make testing convenient and cost-effective.
IPX7 IPX8 Water Immersion Tank
IPX7 X8 water immersion tank is used to test to test the water tightness of enclosures of automotive parts, outdoor lamps and electronics parts.
IPX7 IPX8 immersion chamber built with a water re-circulation system that reduced water use and a series of water pipes. Automatic water supply ensures adequate supply of water and automatic testing.
IPX7 and IPX8 functions on one test chamber,make testing convenient and cost-effective.
IPX9K High Pressure High Temperature Water Spray Test Chamber
IPX9K High Pressure High Temperature Water Spray Test Chamber is widely used in the electronics, military and consumer product industries. IPX9K is the highest rating currently available for water ingress protection in accordance with IEC 60529 and ISO 20653.
Products under test is subjected to high pressure (8000 – 10000 Kpa), high temperature (+80°C) and water jets at a flow rate of 14 – 16 L/min.
IPX9K test chamber built with a water re-circulation system that reduced water use and a series of water pipes. Automatic water supply ensures adequate supply of water and automatic testing.
