Xenon Arc Accelerated Weathering Chamber
Name:Xenon Arc Accelerated Weathering Chamber
Temperature Range: Ambient～100℃±2℃;
Humidity Range: 50%~98% RH;
Irradiance: 35~150 W/㎡;
BPT Temperature: 35℃～85℃±2℃;
Free calibration;
Color fastness test;
Xenon lamp radiation;
Two independent water systems, effectively protecting xenon lamp
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of xenon arc accelerated weathering chamber in China, featured by quality products and low price. Welcome to buy CE approved xenon arc accelerated weathering chamber in stock here and get quotation from our factory. Contact us for discount information.
Xenon Arc Accelerated Weathering Chamber reproduces the damage caused by full-spectrum sunlight and rain. In a few days or weeks, the xenon weathering chamber can reproduce the damage that occurs over months or years outdoors.
Xenon Accelerated Weathering Chamber is a full-featured weathering, light fastness and photostability chamber at a breakthrough price. It provides precise control of critical test parameters including spectrum, irradiance, relative humidity, chamber temperature and black panel/black standard temperature.
Technical Parameters
| Name | Xenon Arc Accelerated Weathering Chamber |
|
Model |
XL-S-750 |
|
Internal Dimension (mm) |
950*950*850 mm |
|
Overall Dimension (mm) |
1300*1420*1800 mm |
|
Specimen Holder Size (mm) |
95*200 |
|
Specimen Capacity |
42pcs |
|
Chamber Type |
Rotating Holder |
|
Irradiation Source |
1 piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter |
|
Irradiance Range |
35~150 W/㎡ |
|
Bandwidth Measurement |
300 nm~400 nm (340 nm or 420 nm) |
|
Chamber Temperature Range |
Ambient ～ 100 ℃ ±2℃ |
|
Black Panel Temperature |
BPT 35 ～ 85 ℃ ±2℃ |
|
Humidity Range |
50% ~ 98% RH |
|
Humidity Deviation |
± 5% RH |
|
Water Spray Cycle |
1~9999H59M (Adjustable) |
|
Controller |
Programmable color LCD touch screen controller |
|
Water supply system |
Automatic water supply,Water purification system |
|
Build-in Water Tank (mm) |
270*300*900 |
|
View Window Size (mm) |
250*330 |
|
Air Circulation |
Centrifugal wind fan |
|
Exterior Material |
Steel plate with protective coating |
|
Interior Material |
SUS304 stainless steel |
|
Thermal Insulation |
Polyurethane foam and insulation cotton |
|
Observation Window |
Interior lighting, double-layer thermo stability silicone rubber sealing |
|
Power Supply |
AC380V 50Hz |
|
Maximum Noise |
65 dBA |
|
Environmental Conditional |
5℃～+35 ℃ ≤85% RH |
Details

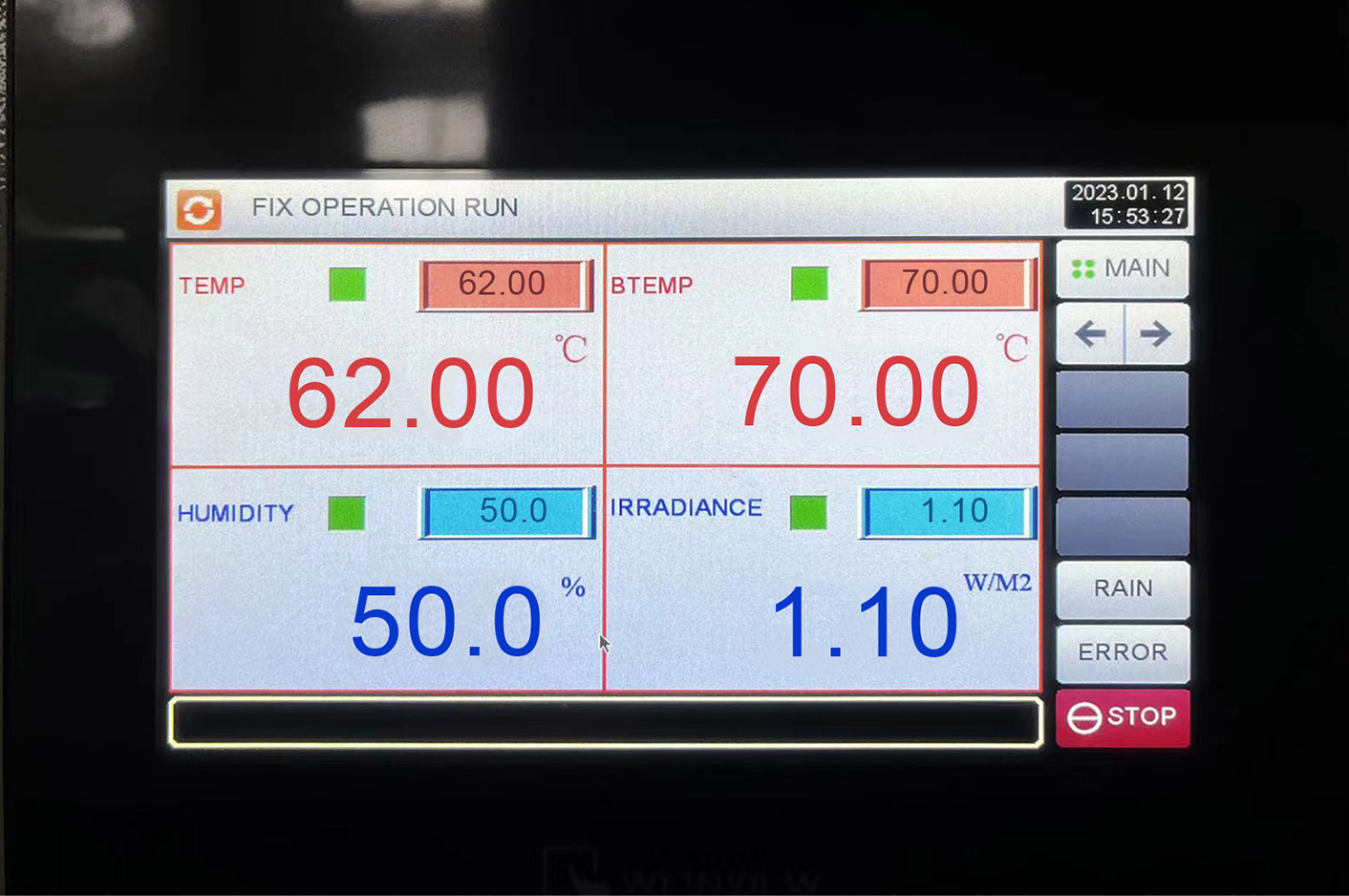

Controller
PID programmable color touch screen controller, network connection computer.
LIB can preset program into the controller based on user testing requirements.
Full Spectrum Xenon Lamps
Xenon arc lamps give the best reproduction of full spectrum natural sunlight. LIB xenon lamps are water-cooled, which makes them more economical, highly efficient and very low maintenance. The XL-S-750 uses one lamp per machine. Enhanced lamps last for 1600 hours at normal irradiance and 1000 hours at high irradiance.
Optional Water Spray
Outdoor moisture attack is simulated via an optional pure water spray in the xenon arc accelerated weathering chamber. A spray nozzle located in the top of the chamber can be programmed to operate during either the dark or light cycle. Note that purified water is required for proper operation of the water spray and RH features in the LIB xl-750.
