What is the difference between IPX4 and other IP ratings

In the world of environmental testing and product development, understanding IP (Ingress Protection) ratings is crucial. These ratings indicate the level of protection a device has against solid objects and liquids. Among these ratings, IPX4 holds a special place, especially when it comes to waterproof testing. In this comprehensive guide, we'll explore the differences between IPX4 and other IP ratings, with a focus on IPX4 waterproof chambers and their significance in various industries.

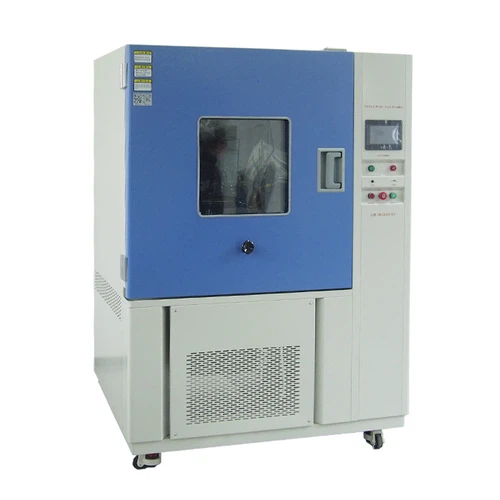

LIB IPX4 waterproof test chambers have more than 7 models for choose, size available 800L, 1200L, 1400L, 2000L and more

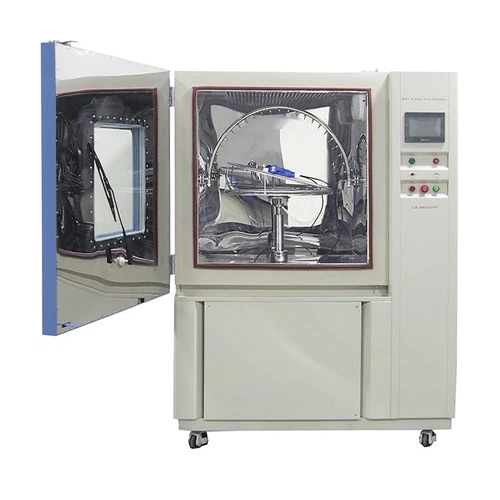

LIB IPX4 water ingress test chamber model R-1200

The Basics of IP Ratings

IP ratings consist of two digits: the first representing protection against solid objects, and the second against liquids. The 'X' in IPX4 indicates that the solid object protection level is unspecified, while the '4' denotes a specific level of water resistance.

The Importance of IP Ratings in Product Development

IP ratings play a vital role in ensuring product durability and safety across various industries. From consumer electronics to industrial equipment, these ratings help manufacturers and consumers understand a product's resilience against environmental factors.

Common IP Ratings and Their Meanings

Let's explore some frequently encountered IP ratings and their implications:

- IP00: No protection against solids or liquids

- IP20: Protected against solid objects over 12.5 mm, no liquid protection

- IP54: Dust protected, splash resistant

- IP67: Dust tight, protected against temporary immersion

- IP68: Dust tight, protected against prolonged immersion

What Does IPX4 Mean?

IPX4 testing, conducted using an IPX4 waterproof chamber, specifically refers to protection against water splashes from any direction. This rating ensures that a device can withstand water spray from all angles for at least 5 minutes without harmful effects.

Applications of lIB IPX4 Rated Products

Products with an IPX4 rating find applications in various sectors:

- Outdoor electronics like speakers and smartwatches

- Kitchen appliances

- Bathroom fixtures

- Certain types of industrial equipment

Limitations of IPX4 Protection

While IPX4 offers substantial water resistance, it's important to note its limitations. IPX4 rated devices are not suitable for submersion or high-pressure water jets, which require higher IP ratings.

The Role of LIB IPX4 Waterproof Chambers in Product Testing

IPX4 waterproof chambers are specialized equipment used to simulate water splash conditions and verify a product's compliance with IPX4 standards. These chambers play a crucial role in quality assurance and certification processes.

Testing Procedures in an LIB IPX4 Waterproof Chamber

The testing process in an IPX4 waterproof chamber typically involves:

- Placing the device under test in the chamber

- Exposing it to water spray from multiple angles

- Maintaining the spray for a specified duration

- Assessing the device for any water ingress or functional issues post-test

Importance of Accurate IPX4 Testing

Accurate IPX4 testing is vital for several reasons:

- Ensures product reliability and safety

- Helps manufacturers meet regulatory requirements

- Builds consumer trust in product durability claims

- Reduces the risk of product failures and recalls

IPX4 vs. IPX3

While IPX3 protects against water sprays up to 60 degrees from vertical, IPX4 offers protection from all directions, making it more versatile for products that may encounter water from various angles.

IPX4 vs. IPX5

IPX5 provides protection against low-pressure water jets, offering a higher level of water resistance compared to IPX4. Products requiring protection against more forceful water exposure often opt for IPX5 or higher ratings.

IPX4 vs. Higher IP Ratings (IPX6, IPX7, IPX8)

Higher IP ratings offer progressively better protection:

- IPX6: Protection against powerful water jets

- IPX7: Protection against temporary immersion (up to 1 meter for 30 minutes)

- IPX8: Protection against continuous immersion beyond 1 meter

These ratings are crucial for devices that may be submerged or exposed to high-pressure water.

Assessing Environmental Exposure

When selecting an appropriate IP rating, consider:

- The typical environment where the product will be used

- Potential exposure to water or other liquids

- Regulatory requirements in your industry

Balancing Protection and Cost

Higher IP ratings often come with increased production costs. It's essential to find the right balance between adequate protection and economic viability for your product.

Future-Proofing Your Product

Consider potential future applications or environmental changes that might affect your product. Opting for a slightly higher IP rating than currently necessary can future-proof your design and potentially expand market opportunities.

IPX4 Water Spray Testing for Reliable Ingress Protection

LIB's IPX4 Water Spray Test Chamber replicates splashing water conditions in strict accordance with IEC 60529 IPX4 requirements, verifying that products can withstand water splashes from any direction.

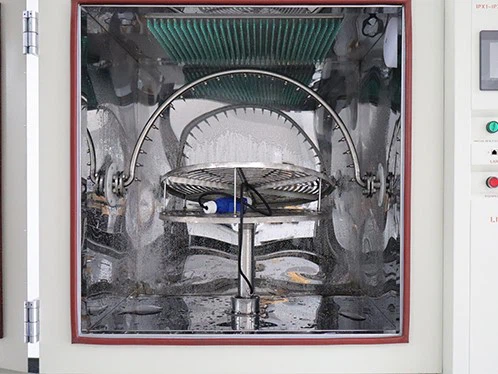

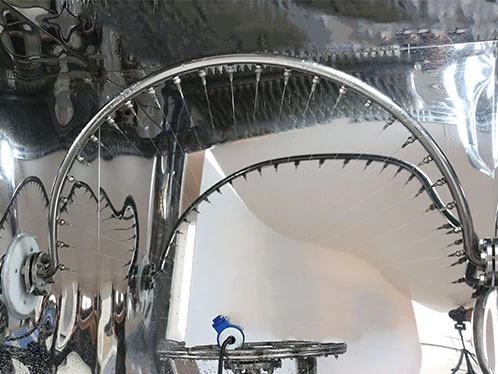

The chamber uses an adjustable oscillating tube equipped with 12 to 100 precision nozzles (depending on tube radius R from 0.4 m to 1.6 m), delivering a total water flow rate from 1.8 L/min to 7.0 L/min. Spray coverage is maintained at 360° ± 5° for uniform and repeatable testing.

Advanced Control Systems for Precise Water Exposure

Equipped with high-accuracy flow meters (±0.5 L/min) and intelligent PID controller, the chamber maintains stable spray intensity and duration.

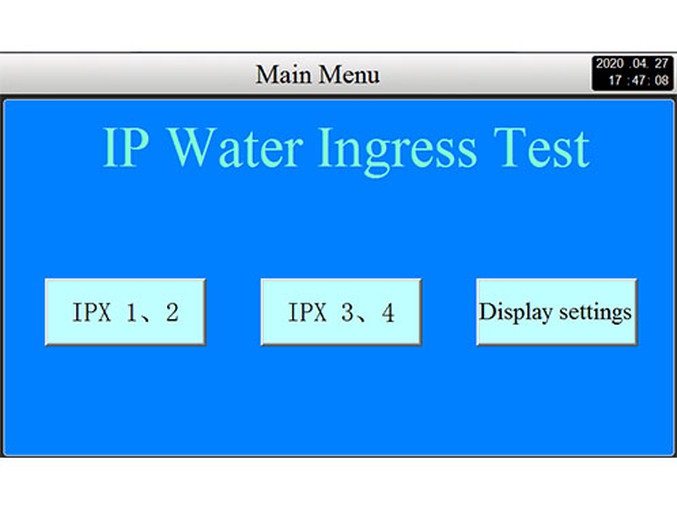

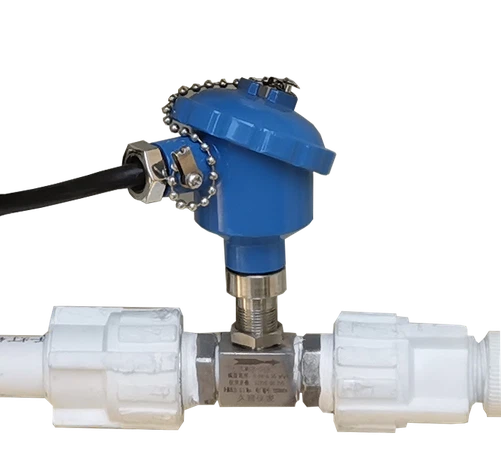

rain spray flow meter	intelligent PID controller

PID-controlled automated sequences allow adjustment of water flow and cycle time, reducing manual error and ensuring repeatable testing.

Real-time monitoring sensors track water coverage and flow stability to maintain test consistency across all samples.

Test Precision & Repeatability

Water distribution uniformity: ≥95% coverage on sample surfaces.

Spray angle: 360° ±5°, spray height adjustable from 300 mm to 1500 mm.

Sample capacity: supports over 20 kg per tray, accommodating a wide range of product sizes.

Programmable cycles: up to 100 steps, allowing multi-stage water exposure tests.

Power Supply: provides electrical power to the specimen during testing.

Rotating Turntable	Waterproof Power Supply

Operational Efficiency

7-inch color touchscreen stores up to 120 test programs with 100 steps each, supporting complex test profiles.

Remote monitoring via Ethernet and USB, with one-click export of CSV/PDF test reports.

Water-saving design: closed-loop system recycles up to 80% of water, reducing refill frequency and operational cost.

Durability & Maintenance

Interior: SUS304 stainless steel, corrosion-resistant and easy to clean.

Exterior: powder-coated A3 steel, impact and chemical resistant.

Observation: full-height tempered glass window with LED lighting.

Safety: over-temperature, low-water, door-open, and power-failure interlocks.

Maintenance: nozzle cleaning, water refills, and sensor verification take less than 10 minutes.

LIB Industy offers a 3-year warranty and lifetime service. Any issues that cannot be resolved during the warranty period will be replaced free of charge. 24/7 English-speaking after-sales team. Fast shipping within 7-15 days.

For more information about IPX4 waterproof chambers and environmental testing solutions, contact LIB Industry to develop a professional and efficient solution tailored to your specific standards and stringent requirements. Our team of experts is ready to assist you in choosing the right testing equipment for your specific needs, ensuring your products meet the highest standards of quality and durability.
