When water strikes a product in the real world, it rarely comes gently. From heavy rainfall to high-pressure cleaning hoses, outdoor electronics, lighting enclosures, and automotive parts must withstand strong and unpredictable water exposure. Even one failure caused by water ingress-corrosion, short-circuiting, or seal breakdown-can trigger field malfunctions or costly recalls.

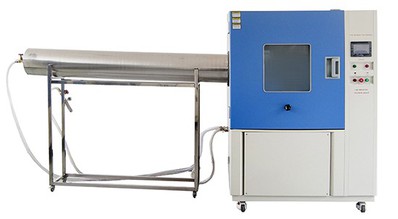

The LIB IPX5 and IPX6 Waterproof Jet Test Device is engineered to replicate these challenging conditions using controlled, standard-defined water jets. Built according to IEC 60529, ISO 20653, and DIN 40050-9, it provides reliable and repeatable testing that verifies whether a product's waterproof rating truly meets real-world demands.
1. Introduction to IPX5/IPX6 Testing
Understanding How IP Ratings Work
The IP (Ingress Protection) rating system defines how effectively an enclosure resists dust and water.
- The first digit (0–6) refers to dust protection.
- The second digit (0–9K) measures water resistance.
IPX5 and IPX6 specifically evaluate resistance to jet water, not immersion. IPX5 uses a 6.3 mm nozzle spraying 12.5 L/min ± 5% at 30–100 kPa, while IPX6 uses a 12.5 mm nozzle spraying 100 L/min ± 5% at 100 ± 5 kPa, all from a distance of 2.5–3 m.
Why IPX5/IPX6 Jet Testing Matters
Outdoor electronics, vehicle components, and lighting fixtures face strong directional water exposure. Without proper sealing, equipment can experience internal condensation, connector corrosion, or electrical instability. Testing to IEC 60529, ISO 20653, and DIN 40050-9 ensures that products can be certified and safely deployed in rain, splash, and pressure-jet conditions.
How Jet Test Devices Simulate Real Conditions
An IPX5/IPX6 device uses calibrated nozzles, controlled pressure, and constant-flow water pumps to recreate standardized heavy rain and hose-jet exposure. By maintaining accurate pressure (±5%), flow rate (±5%), and spray distance, these systems achieve consistent test results across different products and test cycles.
2. The Difference Between IPX5 and IPX6 Waterproof Jet Test Device
| IPX5 IPX6 Rain Jet Test Device for Waterproof Testing | ||
|
|
1. High-Precision IPX5/IPX6 Water Jetting Test Chamber 2. Water-Saving IPX6K Test Chamber 3. High-Efficiency IP6k9k Test Machine 4. Sustainable IP68 Test Machine 5. IP6X IP5X Dust Ingress Test Chamber 6. Advanced IPX3 Waterproof Tester |
|
Why IPX5 and IPX6 Are Not the Same
The essential difference lies in water intensity. IPX5 represents moderate spray similar to strong rain, while IPX6 simulates high-pressure jetting, equivalent to vehicle washing or high-speed highway splash. Because of this, IPX6 testing requires more powerful pumps and reinforced piping.
How IPX5 and IPX6 Use Different Nozzles and Flows
IPX5 employs a smaller 6.3 mm nozzle releasing 12.5 L/min, providing controlled but forceful water exposure. IPX6 uses a larger 12.5 mm nozzle pushing 100 L/min, creating significantly stronger impact energy. This difference affects seal design, gasket compression, and overall enclosure durability.
Why Product Types Determine Which Level Is Required
Devices like lighting housings or low-power electronics typically meet IPX5. Automotive underbody parts, ECUs, sensors, and external modules exposed to pressure washing require IPX6. These different use cases drive the need for dedicated IPX5 and IPX6 testing equipment.
| Feature | IPX5 Test Chamber | IPX6 Test Chamber |
|---|---|---|
| Nozzle Diameter | 6.3 mm ± 0.1 mm | 12.5 mm ± 0.2 mm |
| Flow Rate | 12.5 L/min ± 5 % | 100 L/min ± 5 % |
| Pressure | 30 – 100 kPa | 100 ± 5 kPa |
| Spray Distance | 2.5 – 3 m | 2.5 – 3 m |
| Typical Use | Electronics, Lighting Enclosures | Automotive, Heavy-Duty Systems |
| Purpose | Rain Simulation | High-Pressure Water Jet Resistance |
3. Advantages of the LIB IPX5 and IPX6 Waterproof Jet Test Device
|
|
|
 |
|
Precision Built to Global Standards
The system is designed to achieve full compliance with IEC 60529, ISO 20653, and DIN 40050-9, meeting every water-jet parameter required for IPX5/IPX6 certification. The nozzles, pressure stability, and flow control maintain ±5% accuracy for consistent, repeatable testing.
High-Strength Workroom and Observation Design
The interior uses SUS304 stainless steel, ensuring corrosion resistance during continuous wet operation. A double-layer insulating glass observation window with a built-in wiper allows operators to monitor spray coverage even when water impacts the door.
|
|
|
|
|
|
Workroom |
View Window |
Internal Power
|
Build-in Lighting |
|
|
|
 |
 |
| Turnbale | Spray Nozzle | IPX5 IPX6 Water Jetting Outlet | Built-in waterproof power supply |
Reliable Water Jet Control and Safety
The system includes an integrated pressure gauge, flowmeter, and automatic water-supply system. Safety protections-over-current, water shortage, phase sequence, and leakage-ensure long-term stable operation.
Optimized for Specimen Stability and Real-World Simulation
A 600 mm turntable, adjustable from 0–7 r/min, provides uniform exposure. Optional clamps and cable ties secure small or irregular samples, preventing movement under 100 kPa water pressure.
Smart Control and Data Reporting
The programmable LCD touch controller supports test sequence setup, real-time parameter monitoring, USB/Ethernet export, and integrated digital reporting-ideal for laboratories following ISO audit requirements.
4. FAQs on IPX5 and IPX6 Waterproof Jet Test Device
Q1: What makes the LIB IPX5/IPX6 Water Jet Test Chamber reliable for long-term use?
A1: Its stainless-steel interior and durable components resist corrosion and wear, reducing maintenance and ensuring consistent performance over time.
Q2: What kind of support and uptime guarantee do LIB offer?
A2: Every chamber comes with a 3-year warranty, lifetime maintenance, and free replacement if on-site issues cannot be resolved remotely. LIB's 24/7 English-speaking technical team guarantees a 2-hour response time and on-site spare-parts delivery within 7–15 days.
Q3: Can I power and monitor my device under test during the spray test?
A3: Yes. The chamber includes a built-in power port for energizing samples and a transparent, impact-resistant window with LED illumination, enabling simultaneous observation and performance monitoring.
Q4: Does LIB provide customization?
A4: Absolutely. LIB offers tailored turntable sizes, optical access ports, and programmable controllers to suit specific testing standards or product configurations.
Q5: How does LIB ensure compliance with global standards?
A5: All LIB chambers conform to IEC 60529, ISO 20653, and DIN 40050-9, ensuring tests meet the world's strictest ingress-protection requirements for electronics, vehicles, and industrial systems.
Contact LIB Industry today to configure your IPX5/IPX6 Waterproof Jet Test Device and ensure your products meet the world's toughest waterproofing standards.
