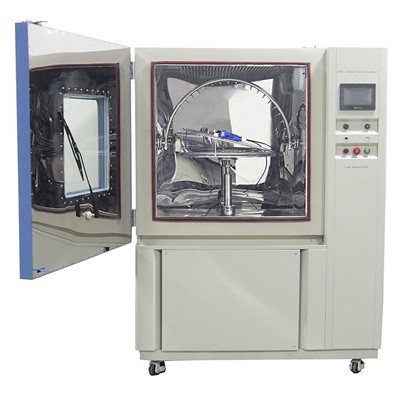

Rain Testing Machine
Name: Rain Testing Equipment;
IP Rating:IPX1 IPX2 IPX3 IPX4 Test ;
Application: Lamps, Electric cabinets;
Standard:IEC 60529, ISO20653;
Water System: Water Circulation System;
Turntable: 1r/min Adjustable;
Door Lock: Electromagnetic lock;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of rain testing machine in China, featured by quality products and low price. Welcome to buy CE approved rain testing machine in stock here and get quotation from our factory. Contact us for discount information.

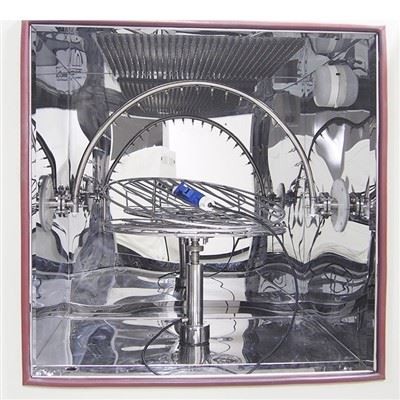

The Rain Testing Machine adopts scientific design, so that the equipment can realistically simulate dripping, drenching, splashing, spraying and other environments. In the comprehensive control system, the rotation angle of the rainfall sample rack, the swing angle of the water spray swing rod and the swing frequency of the water spray can be automatically adjusted.
Video
Specification
|
Model |
R-800C |
|
|
Internal Dimensions (mm) |
900*950*950 |
|
|
Overall Dimensions (mm) |
1180*1420*1920 |
|
|
Useful Volume (L) |
810 |
|
|
Oscillating Tube Radius |
400 mm |
|
|
Drip Tray Size |
600*600 |
|
|
Spraying Hole Diameter |
φ0.4 mm |
|
|
Hole Spacing |
50 mm |
|
|
Swing Angle of Oscillating Tube |
0 ~ ±180° (Adjustable） |
|
|
Turntable Rotation Speed |
1r/min (Adjustable speed) |
|
|
Water Pressure Control |
Flow meter |
|
|
Controller |
Programmable color LCD touch screen controller, Ethernet connection, USB port |
|
|
Water supply system |
Water tank, booster pump, Automatic water supply, Water purification system |
|
Rain Testing Machine
Details
|
|
|
| Workroom | Built-in power supply |
Feature
1. The number of IPX3X4 nozzles depends on the pendulum radius.
2. The drainage hole is located on the back of the unit and has a 1/2 inch aperture.
3. The rain testing machine is equipped with water purification and water circulation system, and the automatic water inlet can be connected for a period of time without changing the water.
More guarantee
- 36 months warranty: We will be responsible for solving non-human caused machine failure
- International certification: LIB's full range of products, including used humidity chamber, are CE and RoHS certified and can be issued with certificates.
Hot Tags: rain testing machine, manufacturers, suppliers, factory, cost, price, used, specification, for sale, Enclosures for Electrical Equipment, ipx3 test chamber, IPX3X4 water test equipment, IPX5X6 test equipment, ipx9k waterproof chamber, Waterproof Test Equipment
