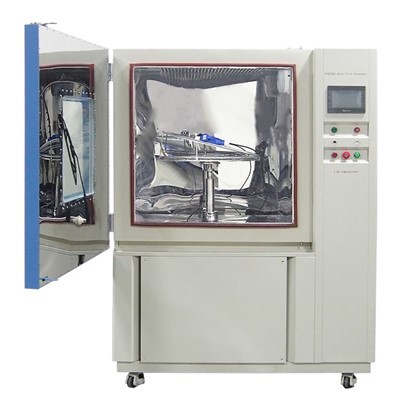

IP Test Chamber For Mobile Phones
Name: IP Test Chamber for Mobile Phones;
Waterproof rating: IPX1–IPX6 Mobile phone protection rating;
Material: 304stainless steel plate in inner; A3 Steel Plate with protective coating in exterior;
Rotating turntable: height adjustable from 350 to 600mm and rotation speed adjustable;
Safety protection device: Electrical leakage, circuit shorting, motor overheating, and overcurrent safeguard;
Controller: Programmable color touch screen (PID), Ethernet/USB/PC connection;
Water supply system: Automatic circulation water replenishment + water purification system
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of ip test chamber for mobile phones in China, featured by quality products and low price. Welcome to buy CE approved ip test chamber for mobile phones in stock here and get quotation from our factory. Contact us for discount information.
LIB IP Test Chamber for Mobile Phones integrates IPX1/2 (drip), IPX3/4 (oscillating splash), and IPX5/6 (water jet) tests in one unit. It features PID programmable control, a closed-loop water purification system, an adjustable turntable for powered functional testing, and a large observation window with built-in lighting and manual wiper for real-time monitoring.
Designed for mobile phone, tablet, and wearable manufacturers, R&D, and QA labs, LIB IP Test Chamber for Mobile Phones supports standards including IEC 60529, ISO 20653, IEC 60068, DIN 40050, and so on.
Video of the IP Test Chamber for Mobile Phones
Parameters of the IP Test Chamber for Mobile Phones
|
Model |
RD-800C |
RD-1200C |
|
|
Dimension |
Internal dimensions |
900*950*950mm -D*W*H |
1300*1350*1370mm -D*W*H |
|
Overall dimensions |
1180*1420*1920mm -D*W*H |
1540*1820*2200 -D*W*H |
|
|

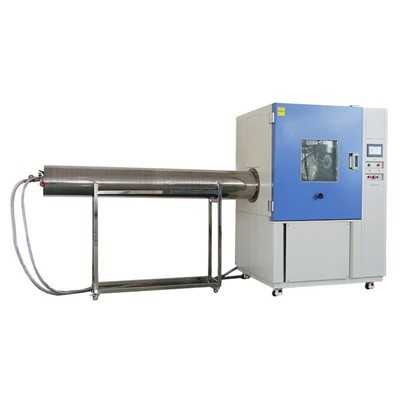

IPX5 IPX6 tube dimensions |
Length is 2000mm, diameter is 325mm |
Length is 2000mm, diameter is 325mm |
|
|
IPX3 IPX4 |
Oscillating tube radius |
400mm |
600mm |
|
Spraying hole diameter |
φ0.4mm |
||
|
Hole spacing |
50 mm |
||
|
Number of holes |
25 |
37 |
|
|
Oscillating tube range |
0~ ±180° |
||
|
Swivel velocity speed of tubes |
60°/seconds |
||
|
IPX5 IPX6 |
Nozzle diameter |
Dia 6.3mm for IPX5 nozzle diameter, Dia12.5mm for IPX6 nozzle diameter |
|
|
Water flow rate |
12.5L/min ±5 for IPX5 test, 100L/min ±5 for IPX6 test |
||
|
Core of the substantial stream |
circle of approximately 40 mm diameter at 2,5 m distance from nozzle |
||
|
Turntable |
Diameter |
600mm |
|
|
Height |
350~600mm, adjustable |
||
|
rotation speed |
1~5r/min (adjustable) |
||
|
Controller |
Programmable color display touch screen controller, PC Link with software, Ethernet interface |
||
|
Water supply system |
Storage water tank, booster pump, Automatic water supply, Water cycling system, Water purification system, Water saving |
||
|
Exterior material |
A3 Steel Plate with protective coating |
||
|
Interior material |
SUS304 stainless steel |
||
Details of the IP Test Chamber for Mobile Phones
Durable Workroom
The inner chamber is made of SUS304 mirror-finished stainless steel, which is corrosion-resistant and easy to clean, suitable for continuous splashing and high-humidity environments.

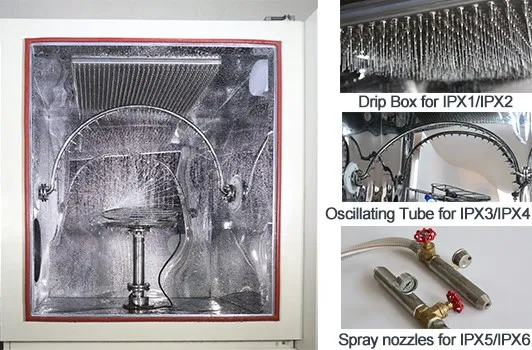

Drip Box: Purpose-designed for IPX1 and IPX2 testing, this chamber uses a precision drip box to deliver water at controlled drip rates of 1 ml/min or 3 ml/min.
Oscillating Tube: Simulates IPX3/IPX4 rainfall with a semi-circular tube of stainless-steel nozzles (φ0.4 mm, 50 mm spacing), ensuring uniform water distribution for repeatable, accurate testing.
IPX5/IPX6 Spray Nozzle: Stainless-steel nozzles deliver high-velocity water at 12.5 L/min (IPX5) and 100 L/min (IPX6), accurately simulating extreme water pressure for reliable, standards-compliant testing.

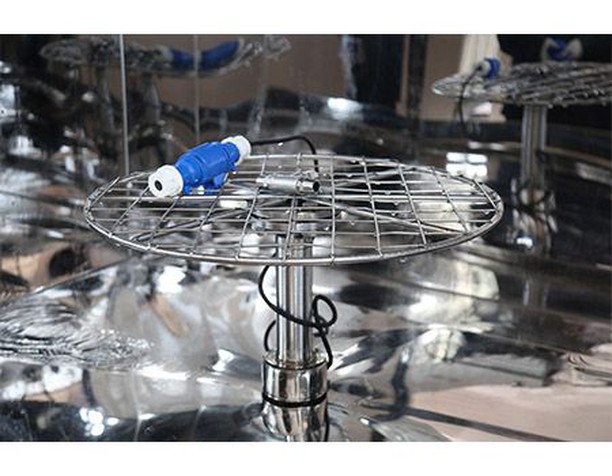

Adjustable Turntable and Power Supply
Height turntable with built-in waterproof power supply supports sample operation under power and functional testing.
Comes with a removable 15° tilt plate for IPX2 testing, allowing quick and easy installation or removal.

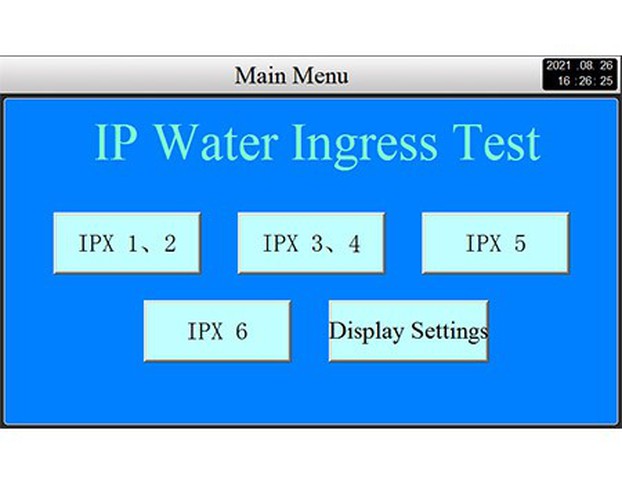

Smart PID Controller
Centralized PID touchscreen system manages drip, oscillating tube, and jet spray tests with coordinated spray, rotation, and oscillation.
It offers real-time pressure/timing monitoring, USB data export, and Ethernet connectivity for streamlined operation.

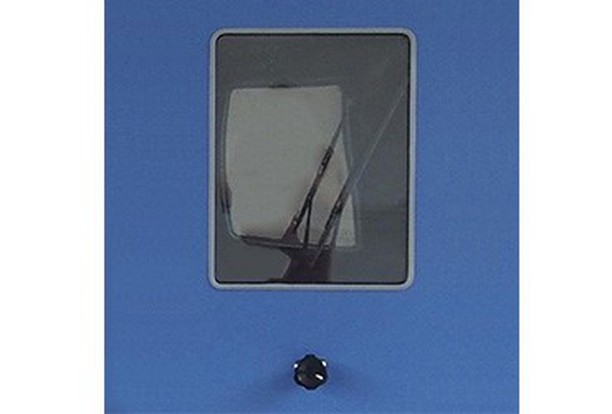

Viewing Window
A water wiper ensures visibility even during intense spray testing, enabling operators to monitor the sample status without opening the chamber.

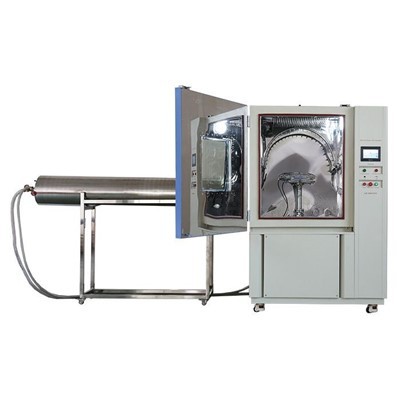

Panoramic View of the IP Test Chamber for Mobile Phones
Key Features of the IP Test Chamber for Mobile Phones
1. Water-saving recirculating water supply system: Closed-loop recirculation + automatic water replenishment + built-in water purification, reducing water consumption and supporting long-term unattended testing.
2. Multi-level integration: One device completes IPX1–IPX6 full-grade testing, saving laboratory space and costs.
3. Automatic Power-On Testing: The waterproof power supply integrated with the turntable allows for live functional testing while spraying.
4. Mobility-Ready Wheels: Four robust, lockable castors enable easy movement and secure stability during operation under load.
5. Built-in LED lighting with clear viewing window: Large window with manual wiper and LED lighting for easy visual monitoring and fault recording during experiments.
Besides IP Test Chamber for Mobile Phones, LIB offers humidity and temperature simulations, salt spray simulations, dust and rain simulations, light simulations, and poisonous gas simulations that meet various standards such as IEC, ISO, and ASTM.
