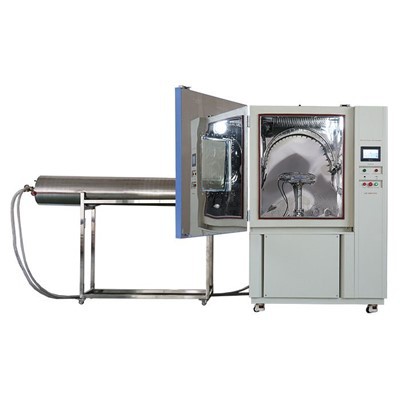

Rain Tightness Water IP Test Device
Name: Rain Tightness Water IP Test Device;
Controller: Color touch-screen PID system with programmable profiles, supporting Ethernet monitoring and USB data export;
Turntable: Adjustable height from 350 to 500 mm for uniform exposure of samples of various sizes;
Test Levels: IPX1–IPX3, IPX4 (±180° oscillating tube), IPX5 (low-pressure jet), IPX6 (high-pressure jet);
Nozzle Diameters: 0.4 mm for oscillating tube (IPX4), 6.3 mm for low-pressure jet (IPX5), 12.5 mm for high-pressure jet (IPX6);
Flow Rates: 12.5 L/min (IPX5), 100 L/min (IPX6)
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of rain tightness water ip test device in China, featured by quality products and low price. Welcome to buy CE approved rain tightness water ip test device in stock here and get quotation from our factory. Contact us for discount information.
The LIB Rain Tightness Water IP Test Device combines IPX1–IPX6 protection testing in a single integrated solution. It enables controlled simulation of dripping water, rainfall, splashing, and high-pressure water jets for comprehensive waterproof performance evaluation. The system performs IPX1/IPX2 vertical drip testing at 1 mm/min, IPX3/IPX4 water spray testing through an oscillating tube with ±60° / ±180° movement, and IPX5/IPX6 jet testing using 12.5 L/min and 100 L/min nozzles. A load-capable turntable rated up to 50 kg, tilting test platform, integrated power supply, and automatic water recovery and circulation system streamline testing while improving consistency and reducing manual operation. It is well suited for evaluating electronic products, automotive components, outdoor equipment, and other water-sensitive devices.
The Rain Tightness Water IP Test Device is designed and manufactured in strict accordance with IEC 60529, fully covering IPX1, IPX2, IPX3, IPX4, IPX5, and IPX6 ingress protection requirements. It is suitable for certification and qualification testing demanded by CE, CB, and other international conformity assessments, ensuring authoritative, traceable, and globally accepted waterproof test results.
Video of the Rain Tightness Water IP Test Device
Parameters of the Rain Tightness Water IP Test Device
|
Model |
RD-800C |
RD-1200C |
|
|
Dimension |
Internal dimensions |
900*950*950mm -D*W*H |
1300*1350*1370mm -D*W*H |
|
Overall dimensions |
1180*1420*1920mm -D*W*H |
1540*1820*2200 -D*W*H |
|
|
IPX5 IPX6 tube dimensions |
Length is 2000mm, diameter is 325mm |
Length is 2000mm, diameter is 325mm |
|
|
IPX1 IPX2 |
Drip box |
600*600mm |
900*900mm |
|
Hole spacing |
20mm |
||
|
Hole diameter |
φ0.4mm |
||
|
IPX3 IPX4 |
Oscillating tube radius |
400mm |
600mm |
|
Spraying hole diameter |
φ0.4mm |
||
|
Hole spacing |
50 mm |
||
|
Number of holes |
25 |
37 |
|
|
Oscillating tube range |
0~ ±180° |
||
|
Swivel velocity speed of tubes |
60°/seconds |
||
|
IPX5 IPX6 |
Nozzle diameter |
Dia6.3mm for IPX5 nozzle diameter, Dia12.5mm for IPX6 nozzle diameter |
|
|
Water flow rate |
12.5L/min ±5% for IPX5 test, 100L/min ±5% for IPX6 test |
||
|
Core of the substantial stream |
circle of approximately 40 mm diameter at 2,5 m distance from nozzle |
||
|
Turntable |
Diameter |
600mm |
|
|
Height |
350~600mm, adjustable |
||
|
rotation speed |
1~5r/min |
||
|
Controller |
Programmable color display touch screen controller, PC Link with software, Ethernet interface |
||
|
Water supply system |
Storage water tank, booster pump, Automatic water supply, Water cycling system, Water purification system, Water saving |
||
|
Safety protection device |
Electric leakage, short circuit, motor overheating, over-current protection |
||
|
Exterior material |
Steel Plate with protective coating |
||
|
Interior material |
SUS304 stainless steel |
||
Detail Display of The Rain Tightness Water IP Test Device
Robust Stainless Steel Test Workroom
The inner workspace is constructed from SUS304 mirror-polished stainless steel, delivering excellent resistance to moisture and corrosion. Its smooth surface simplifies maintenance and ensures long-term reliability under continuous water spray and humid test environments.
Height-Adjustable Turntable
The integrated turntable offers a vertical adjustment range of 350–500 mm and smooth, controllable rotation, allowing uniform water exposure for test specimens with varying dimensions and configurations.
Advanced PID Control System
A multilingual PID-based controller enables precise management of IPX1–IPX6 waterproof tests, covering drip, oscillating spray, and high-pressure jet modes. It supports programmable multi-step test profiles, Ethernet-based remote supervision, and USB data storage for efficient test control and data handling.
Transparent Observation Window
Equipped with a clear viewing panel, a manual wiper, and built-in LED illumination, the chamber enables real-time monitoring of tests, facilitating easy inspection and precise data recording.
Panoramic view of the Rain Tightness Water IP Test Device
LIB Environmental is one of the professional and credible manufacturers of climatic and environmental testing chambers in China. Equipped with a professional factory, we can offer you temperature explosion proof test chamber with competitive price. Now we have high quality temperature explosion proof test chamber for sale, welcome to buy our test chamber at low cost and check the price with our supplier.
