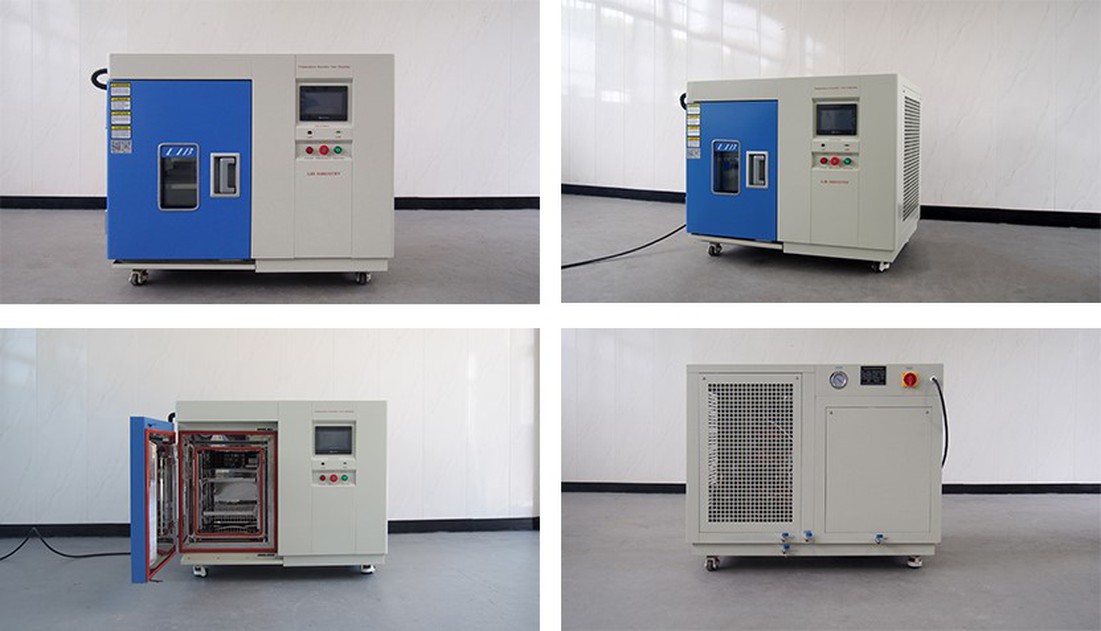

Small Benchtop Temperature Cycling Oven

The Small Benchtop Temperature Cycling Oven delivers precise, full-range control of temperature and humidity in a compact, quiet design. Equipped with versatile features, it supports low-temperature settings of -20 °C, -40 °C, and -70 °C, while the high-temperature limit reaches +150 °C. Humidity levels are adjustable from 10% (or 20%) RH up to 98% RH. The system allows flexible temperature ramp rates-1 °C/min, 2 °C/min, 5 °C/min, or higher-enabling rapid and accurate environmental simulation.

This Small Benchtop Temperature Cycling Oven is ideal for testing in electronics, semiconductors, automotive, aerospace, and pharmaceutical sectors. It meets a broad array of international standards, making it highly adaptable for various applications. For battery testing, it complies with UL 2580, UL 2271, IEC 62660-2, UL 1642, UL 1973, SAE J2929, SAE J2464, IEC 60068-2-30, IEC 61960, IEC 62133, and UL 2054. For solar panels, it adheres to IEC 61215. Automotive component testing follows SAE J2334 and VW 80000, while luminaire materials can be tested according to IEC 62717. This ensures reliable, standardized results across multiple industries.

01

Durable Stainless Steel Interior

The chamber features an interior made of SUS304 stainless steel, providing strong resistance to corrosion and simplifying cleaning and maintenance. An integrated centrifugal fan, together with a carefully designed air circulation system, ensures uniform temperature and humidity distribution across the entire chamber.

02

Precision Temperature and Humidity Control

Equipped with a PT100 Class A temperature sensor offering 0.001 °C resolution, the chamber delivers highly accurate temperature monitoring. Humidity is maintained within ±2.5% RH, and the PID control system ensures temperature fluctuations stay under ±0.5 °C, providing stable and reliable conditions for testing.

03

Intelligent PID Touchscreen Controller

The chamber is equipped with a full-color touchscreen for programming complex, multi-stage temperature and humidity cycles, supporting up to 120 programs with 100 steps per program. Built-in Ethernet and USB interfaces enable remote monitoring, real-time data recording, and easy integration with laboratory management systems.

04

Cable Hole for Powered Testing

A 50 mm cable opening (customizable) allows test samples to be connected to external power supplies. Premium silicone rubber seals ensure airtight closure, maintaining stable temperature and humidity inside the chamber.

Since 2009, LIB Environmental has been one of the most professional and reputable manufacturers of climatic and environmental testing chambers in China. With a well-equipped factory, we offer temperature explosion-proof test chambers at competitive prices. We now have high-quality Extreme High and Low Temperature Thermal Shock Chambers for sale. Feel free to contact us to purchase our test chambers at an affordable price and inquire about pricing with our supplier.
