High Temperature 150℃ Walk-In Oven
Name: High Temperature 150 °C Walk-In Oven;
Model: Customizable;
Volume: >3 m³;
Temperature Range: A: Ambient～+250 °C, B: Ambient～+400 °C, C: Ambient～+900 °C;
Heating Rate: 3 °C/min;
Cooling Rate: 1 °C/min;
Stability: ±0.5 °C;
Deviation: ±2.0 °C;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of high temperature 150℃ walk-in oven in China, featured by quality products and low price. Welcome to buy CE approved high temperature 150℃ walk-in oven in stock here and get quotation from our factory. Contact us for discount information.
LIB High Temperature 150 °C Walk-In Oven provides a customizable interior with a volume greater than 3 m³, accommodating large samples, complete equipment systems, or multiple test items. With a temperature up 150 °C/ 500℃/ 1200℃, rapid ramp rates (heating 3 °C/min, cooling 1 °C/min), ±0.5 °C temperature stability, and ±2.0 °C deviation, it delivers precise environmental simulation for large-scale specimens.
This High Temperature 150 °C Walk-In Oven supports extensive temperature test standards, including IEC 60068‑2‑1, IEC 60068‑2‑2, IEC 60068‑2‑14, ASTM F1989, and so on. It is ideal for validating thermal reliability in automotive, electronics, aerospace, and industrial applications, with energy‑efficient design, uniform airflow, and corrosion‑resistant construction.
Video Show of the High Temperature 150 °C Walk-In Oven
Technical Parameters
| Name | High Temperature 150 °C Walk-In Oven |
| Internal Dimension (mm) | 3 m* 3 m* 4.5 m |
| Overall Dimension (mm) | 4.2 m* 4.8 m* 6.7 m |
| Temperature Range (℃) | A: Ambient ～+250 ℃,B: Ambient ～+400 ℃,C: Ambient ～+900 ℃ |
| Name | High Temperature 150 °C Walk-In Oven | ||||
| Internal Dimension (mm) | 3 m* 3 m* 4.5 m (customable) | ||||
| Overall Dimension (mm) | 4.2 m* 4.8 m* 6.7 m | ||||
| Temperature Range (℃) | A: Ambient ～+250 ℃,B: Ambient ～+400 ℃,C: Ambient ～+900 ℃ | ||||
|
Temperature deviation |
± 2.0 ℃ |
||||
|
Heating rate |
3 ℃ / min |
||||
|
Cooling rate |
1 ℃ / min |
||||
|
Controller |
Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
||||
|
Refrigerant |
R404A, R23 |
||||
|
Exterior material |
Steel Plate with protective coating |
||||
|
Interior material |
SUS304 stainless steel |
||||
|
Standard configuration |
1 Cable hole (Φ 50) with plug; 2 shelves |
||||
|
Timing Function |
0.1~999.9 (S,M,H) settable |
||||
Details Description of the High Temperature 150 °C Walk-In Oven
Spacious and Durable Workroom
The interior is constructed from SUS304 stainless steel, featuring a smooth finish for effortless cleaning and convenient sample placement. Its generous, open design maximizes capacity for large specimens while ensuring robust strength and long-lasting durability.
High-Accuracy Temperature Control
Fitted with a PT-100 Class A sensor (0.001 °C precision) and a PID-controlled touchscreen interface, the oven ensures consistent temperature performance with ±0.5 °C stability and ±2 °C deviation, even throughout extended high-temperature operations.
Advanced PID Touchscreen Controller
The oven features a programmable PID color touchscreen, allowing accurate temperature control and real-time monitoring. It can store up to 120 programs with 100 steps each, accommodating diverse testing requirements, and includes multi-language support for global operation.
Customizable Cable Hole
Equipped with a standard 50 mm cable port (with optional sizes), allowing safe power supply or signal connections for test samples. A heat-resistant silicone plug provides a tight seal, maintaining airtight conditions and preventing any leakage.

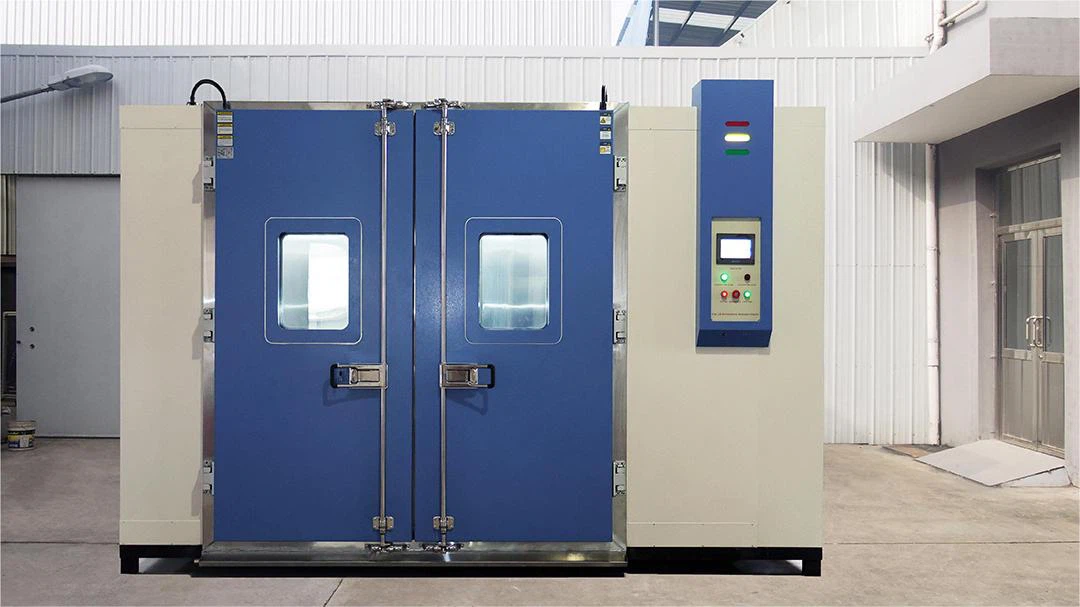

Panoramic View of the High Temperature 150 °C Walk-In Oven
Since 2009, LIB Environmental has been one of the most professional and reputable manufacturers of climatic and environmental testing chambers in China. With a well-equipped factory, we offer temperature explosion-proof test chambers at competitive prices. We now have high-quality Extreme High and Low Temperature Thermal Shock Chambers for sale. Feel free to contact us to purchase our test chambers at an affordable price and inquire about pricing with our supplier.
