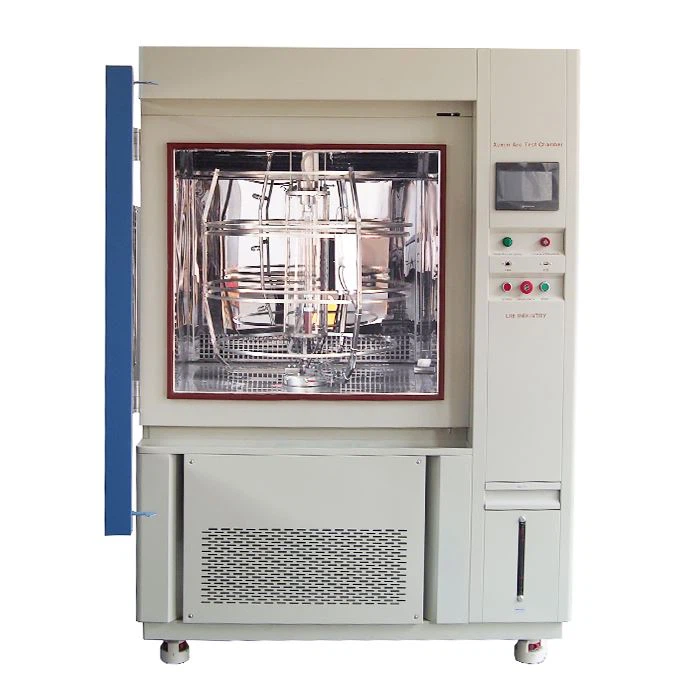

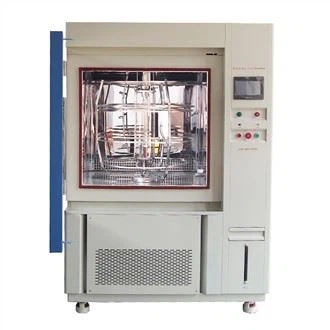

Automated Weather Chamber
Automated Weather Chamber
Application: Aging Test,Textiles;
Bandwidth Measurement:300~400nm;
300~400nm: -40～ 100 ℃ ±2℃;
Black Panel Temperature: 35 ～ 85 ℃ ;
Humidity Range30% ~ 98% RH;
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of automated weather chamber in China, featured by quality products and low price. Welcome to buy CE approved automated weather chamber in stock here and get quotation from our factory. Contact us for discount information.
Automated Weather Chamber is an important means of selecting formula and optimizing product composition in the process of scientific research and production, and also an important content of product quality inspection.
Application materials such as coatings, plastics, aluminum-plastic plates, and automotive safety glass and other products are required to do weather resistance test.
Video
Technical Parameters
| Name | Automated Weather Chamber |
Model | XL-S-500 |
Internal Dimension (mm) | 500*600*700 mm |
Overall Dimension (mm) | 1000*2450*1990 mm |
Sample holder | Adjustable speed, 1r/min |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter |
Irradiance Range | 150W/㎡ |
Bandwidth Measurement | 300~400nm |
Chamber Temperature Range | -40～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 30% ~ 98% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Radiometer | UV Radiometer, Tolerance: ±5% |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Details
 |  |  |
| Sample holder | Compressor and water circulation system | Radiometer & Sensors |
 |  |
Advantage
1. The xenon weather chamber is equipped with a water circulation system
2. Lamp cooling water system to prevent the lamp from turning black
3. Simulate the full spectrum, simulate rain.
USE
1. Corresponding environmental simulation and accelerated tests can be provided for scientific research, product development and quality control.
2. Variation tests that can be used to select new materials, improve existing materials, or evaluate durability after changes in material composition.
3. Xenon resistance chamber can well simulate the changes of materials exposed to sunlight under different environmental conditions.
