SO2, H2S, NO2, Cl2 Atmospheric Corrosion Test Equipment
Name: SO2, H2S, NO2, Cl2 Atmospheric Corrosion Test Equipment
;
Material: SUS 316 stainless steel plate in inner;
SO2 Concentration: 100 ~500 ppb± 20 ppb (Adjustable);
H2S Concentration: 10 ~100 ppb ± 20 ppb (Adjustable);
Cooling system: Mechanical compression refrigeration system;
Gas Exhaust Device: Exhaust Unit;
Gas Sensor: H2S/NO2/CL2/SO2 gas sensor;
Door Lock: Electromagnetic lock;
Controller: PID programmable color touch screen with Ethernet and USB connectivity
Description
LIB Environmental is one of the professional and credible manufacturers of climatic and environmental testing chambers in China. Equipped with a professional factory, we can offer you temperature explosion proof test chamber with competitive price. Now we have high quality temperature explosion proof test chamber for sale, welcome to buy our test chamber at low cost and check the price with our supplier.
LIB SO₂, H₂S, NO₂, Cl₂ Atmospheric Corrosion Test Equipment is designed to evaluate the corrosion resistance of materials in mixed toxic gas environments. The chamber, made from corrosion-resistant 316 stainless steel, features adjustable, customizable sample shelves for flexible testing. It offers precise control over gas concentrations, temperature, humidity, and time.
This SO₂, H₂S, NO₂, Cl₂ Atmospheric Corrosion Test Equipment complies with international standards for toxic gas corrosion testing, including ASTM G85, ISO 4524, JIS Z 2371, SAE J2334, ASTM D2651, and ASTM G155, ensuring accurate and reliable evaluation of material performance under corrosive gas environments. It is designed for industries such as automotive (e.g., exhaust systems, sensors), aerospace (e.g., aircraft parts), electronics (e.g., circuit boards, connectors), and construction materials (e.g., metal coatings). It ensures material durability and safety under exposure to toxic gases like SO₂, H₂S, NO₂, and Cl₂.
Parameters of the SO₂, H₂S, NO₂, Cl₂ Atmospheric Corrosion Test Equipment
|
Model |
GCM-100 |
GCM-225 |
GCM-500 |
|
Internal Dimensions (mm) |
400*500*500 |
500*600*750 |
700*800*900 |
|
Overall Dimensions (mm) |
1010*1050*1620 |
1110*1150*1860 |
1330*1350*2010 |
|
Interior Volume (L) |
100 |
225 |
500 |
|
Temperature Range |
15 ℃ ～ 80 ℃ |
||
|
Temperature Fluctuation |
± 0.5 ℃ |
||
|
Temperature Deviation |
± 2.0 ℃ |
||
|
Humidity Range |
30% ~ 98% RH |
||
|
Humidity Deviation |
±2.5% RH |
||
|
SO2 Concentration |
100 ~500 ppb± 20 ppb (Adjustable) |
||
|
H2S Concentration |
10 ~100 ppb ± 20 ppb (Adjustable) |
||
|
NO2 Concentration |
200 ppb ± 20 ppb (Adjustable) |
||
|
Cl2 Concentration |
10 ~20 ppb ±5 ppb (Adjustable) |
||
|
Error in maintaining the concentration |
10% |
||
|
Air Change Rate |
3~10times /h |
||
|
Cooling system |
Mechanical compression refrigeration system |
||
|
Humidifier |
External isolation, stainless steel surface evaporation humidifier |
||
|
Water Supply System |
Water purification system, Automatic water supply |
||
|
Controller |
Programmable color LCD touch screen controller Ethernet connection, PC Link |
||
|
Gas Sensor |
H2S/NO2/CL2/SO2 gas sensor |
||
|
Air Circulation |
Centrifugal wind fan |
||
|
Door Lock |
Electromagnetic lock |
||
|
Gas Exhaust Device |
Exhaust Unit |
||
|
Safety Device |
Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection |
||
|
Interior material |
SUS316 stainless steel +Glass fiber reinforced plastics |
||
|
Exterior material |
Steel Plate with protective coating |
||
Details Description of the SO₂, H₂S, NO₂, Cl₂ Atmospheric Corrosion Test Equipment
Toxic Gas Corrosion Workroom
The inner chamber is constructed from 316 stainless steel, providing excellent resistance to corrosion caused by multiple gases.
Equipped with two 316 stainless steel punching sample shelves (customizable), supporting flexible placement and removal to accommodate different sample sizes and structures.
The height of sample shelves is adjustable and can be removed directly to facilitate the various sizes of test samples.
Four Mixed Noxious Gas Sensor and Cylinders
Highly sensitive sensors continuously monitor the real-time concentration of the corresponding toxic gases in the chamber.
Provides ±0.1% FS accuracy and supports self-calibration of toxic gas probes in nitrogen environments for high reliability and easy maintenance.
Equipped with four separate cylinders for H₂S, SO₂, NO₂, and Cl₂, each stored securely outside the chamber.
Intelligent Controller
The programmable controller enables user-friendly operation, allowing precise regulation of multiple toxic gas concentrations (H₂S, SO₂, NO₂, Cl₂), temperature, humidity, time, and other parameters based on test requirements.
Features a PID programmable color touch screen for intuitive control and real-time monitoring of gas levels, internal temperature, and test progress.
Capable of storing up to 120 programs, with each program supporting 100 segments, to accommodate complex multi-stage corrosion testing protocols.
Noxious Gas Exhaust Device
An exhaust system connected to a neutralizing scrubber tank such as sodium hydroxide effectively removes residual gases after testing.
Ensures operator safety and environmental protection by neutralizing noxious emissions before release.

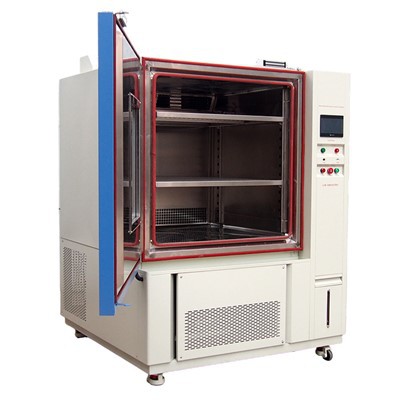

Panoramic View of the SO₂, H₂S, NO₂, Cl₂ Atmospheric Corrosion Test Equipment
