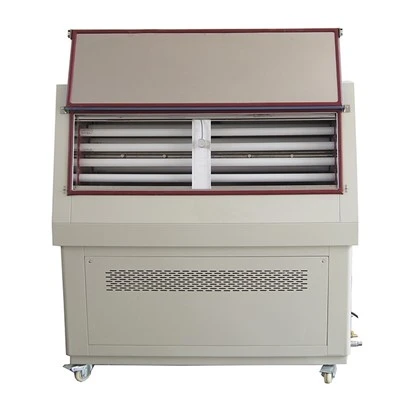

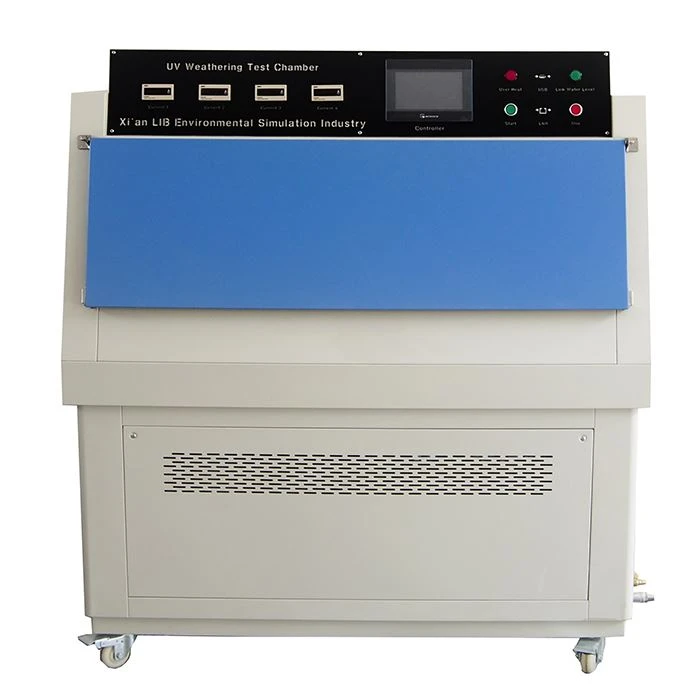

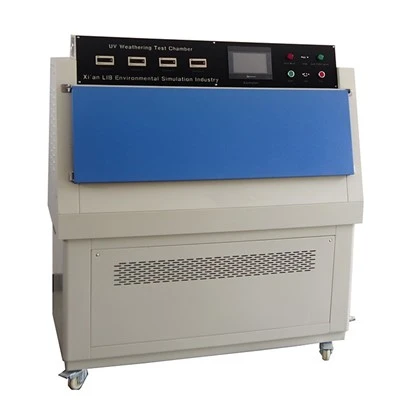

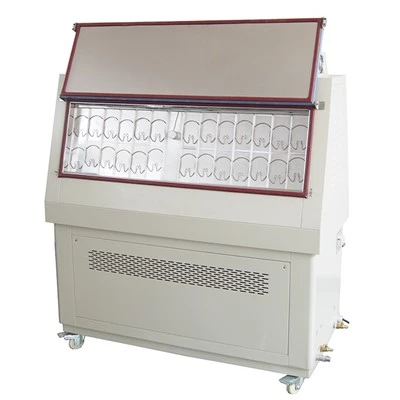

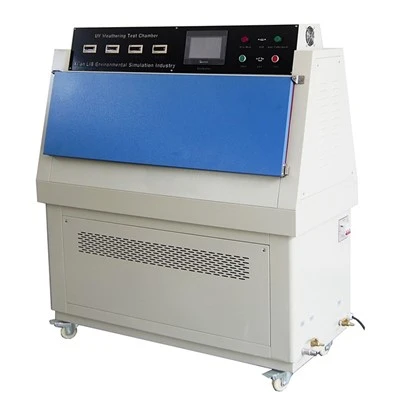

Textile Aging Test Chamber
Textile Aging Test Chamber
UV Lamp:UVA 340,UVB313;
Irradiance:0.3~20W/㎡;
BPT:35℃～80℃;
Fast delivery;
Water Spray Cycle system ;
Environmental Conditional:5℃～+35 ℃ ≤85%RH;
Install 4 castors for standard ;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of textile aging test chamber in China, featured by quality products and low price. Welcome to buy CE approved textile aging test chamber in stock here and get quotation from our factory. Contact us for discount information.
LIB Textile Aging Test Chamber simulates the alternating cycle test of temperature, light, and moisture. UVA and UVB UV lamps are used to simulate the radiation of sunlight, and the sprinkler system simulates dew and rain. It can be used to select, improve, and evaluate the performance of textile materials.
Video
Technical Specification
|
Model |
UV-SI-260 |
|
|
Internal Dimension (mm) |
450*1170*500 |
|
|
Overall Dimension (mm) |
680*1300*1500 |
|
|
Specimen Holder Size (mm) |
75*150 |
|
|
Specimen Capacity |
56 Pieces |
|
|
Irradiation Source |
Fluorescent UV lamps (8) - 40 W |
|
|
Parameter
|
Temperature Range |
Ambient ～ 90 ℃ ±2℃ |
|
Black Panel Temperature (BPT) |
35 ～ 80 ℃ |
|
|
Humidity Range |
≥95% RH |
|
|
Bandwidth |
290 ~ 400 nm |
|
|
Irradiance Control |
0.3~20 W/㎡ |
|
|
Water Spray Cycle |
1~9999H59M (Adjustable) |
|
|
Distance of Specimen and lamp |
50 mm |
|
|
Constructure
|
Heating Element |
Nichrome heater |
|
Controller |
Programmable color LCD touch screen controller |
|
|
|
Ethernet connection, PC Link，USB |
|
|
Water Supply System |
Automatic water supply |
|
|
|
Water purification system |
|
|
Build-in Water Tank (mm) |
350*350*300 |
|
|
Safety Device |
Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
|
|
Material
|
Exterior Material |
Steel Plate with protective coating |
|
Interior Material |
SUS304 stainless steel |
|
|
Thermal Insulation |
Polyurethane foam and insulation cotton |
|
|
Power Supply |
380V 50Hz |
|
|
Standard |
ISO4892-1,ISO4892-3, ASTM G154, ASTM D4329, ASTM D458, ASTM C125, ASTM C1442, ASTM C1519, ASTM C793, ASTM D1148, ASTM D3424, ASTM D3451, ASTM D410, ASTM D481, ASTM D657, ASTM D6662, ASTM D750, ASTM D904, GM 9125P, ISO 29664 |
|
|
Maximum Noise |
65 dBA |
|
|
Environmental Conditional |
5℃～+35 ℃ ≤85% RH |
|
Details
 |
 |
| Water Spray System | 8 UV Lamps |
Feature
1. Adopt irregular sample holder
2. Light source: 1200h, UVA or UVB
3. UV weather chamber,Easy operation, display the set value and actual value
4. Textile aging test chamber,1.5 mm stainless steel plate electrostatic spraying
5. Heater: stainless steel heating system
