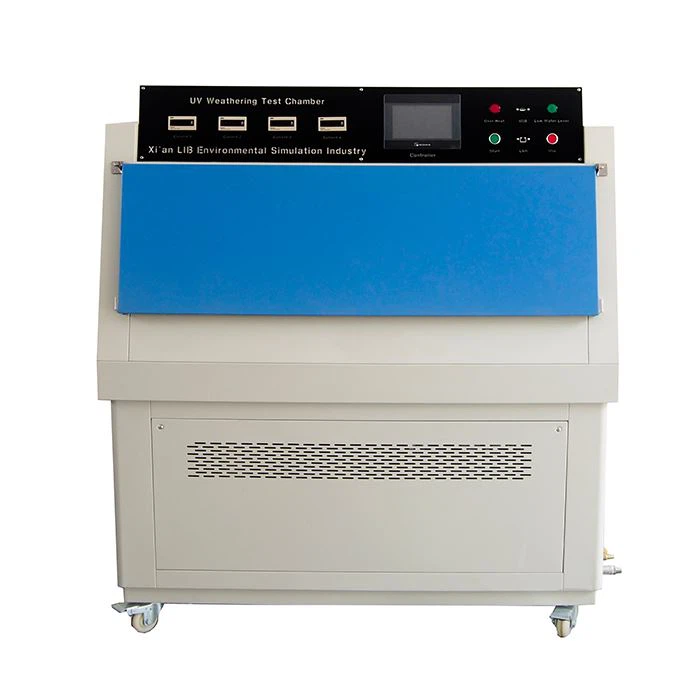

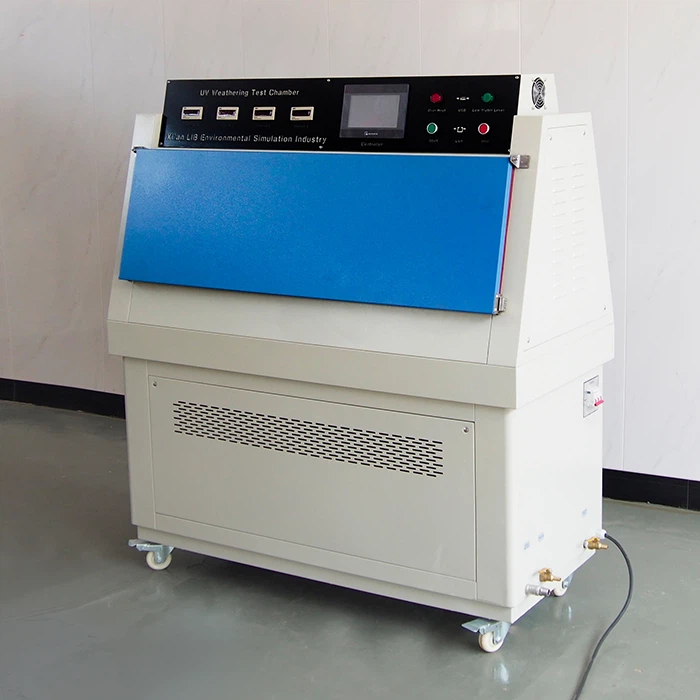

UV Weathering Tester

Name: UV Weathering Tester Manufacturers, Suppliers, Factory - Cost Price - LIB Industry
Brand: LIB Environmental Simulation Industry
SKU: 159865326

UV Weathering Tester UV Lamp: UVA 340,UVB313;
Irradiance: 0.3~20W/㎡;
BPT: 35℃～80℃;
Fast delivery;
Water Spray Cycle system ;
Environmental Conditional: 5℃～+35 ℃ ≤85%RH;
Install 4 castors for standard ;

Send Inquiry

Download

Description

LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of uv weathering tester in China, featured by quality products and low price. Welcome to buy CE approved uv weathering tester in stock here and get quotation from our factory. Contact us for discount information.

UV weathering tester can simulate the influence of the environment including sunshine, rain and dew by exposing the sample to the controlled inter-circulation of the sunshine and moisture with the high temperature.

Video

Standard

Standard of uv aging test chamber

ASTM D4329, D499, D4587, D5208, G154, G53, ISO 4892-3, ISO 11507, EN 534, prEN 1062-4, BS 2782, JIS D0205, SAE J2020.

Technical Specification

Name	UV Weathering Tester
Model	UV-SI-260
Internal Dimension (mm)	4501170500
Overall Dimension (mm)	68013001500

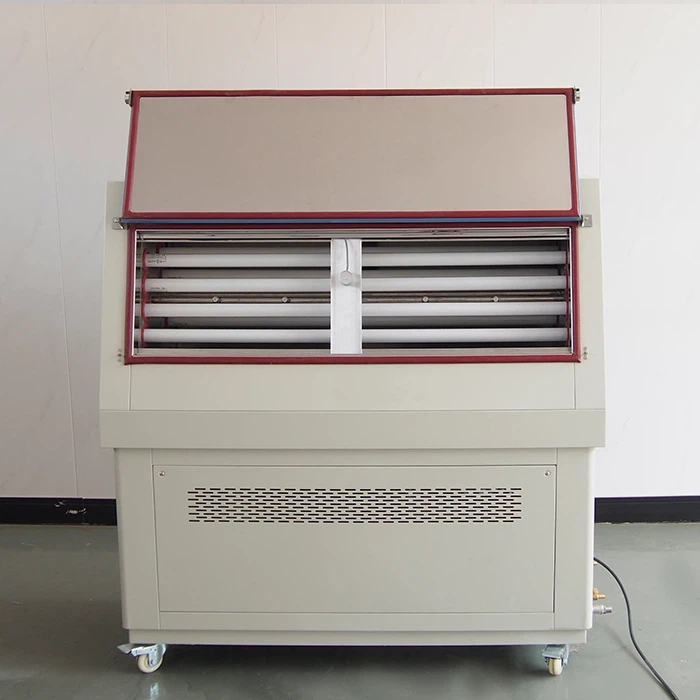

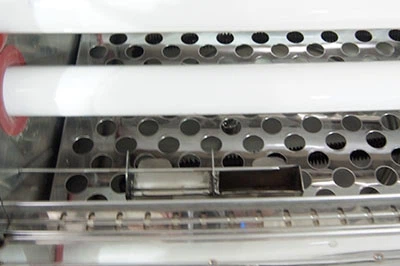

Irradiation Source	Fluorescent UV lamps (8) - 40 W
Temperature Range	Ambient ～ 90 ℃ ±2℃
Black Panel Temperature (BPT)	35 ～ 80 ℃
Humidity Range	≥95% RH
Bandwidth	290 ~ 400nm
Irradiance Control	0.3~20 W/㎡
Distance of Specimen and lamp	50mm
Heating Element	Nichrome heater

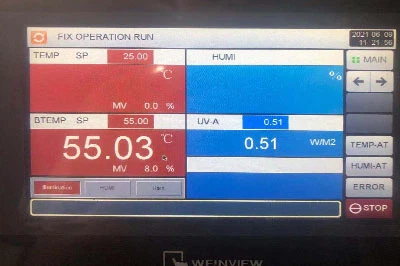

Controller	Programmable color LCD touch screen controller
Controller	Ethernet connection, PC Link，USB
Water Supply System	Automatic water supply,Water purification system
Interior Material	SUS304 stainless steel
Power Supply	380V 50Hz
