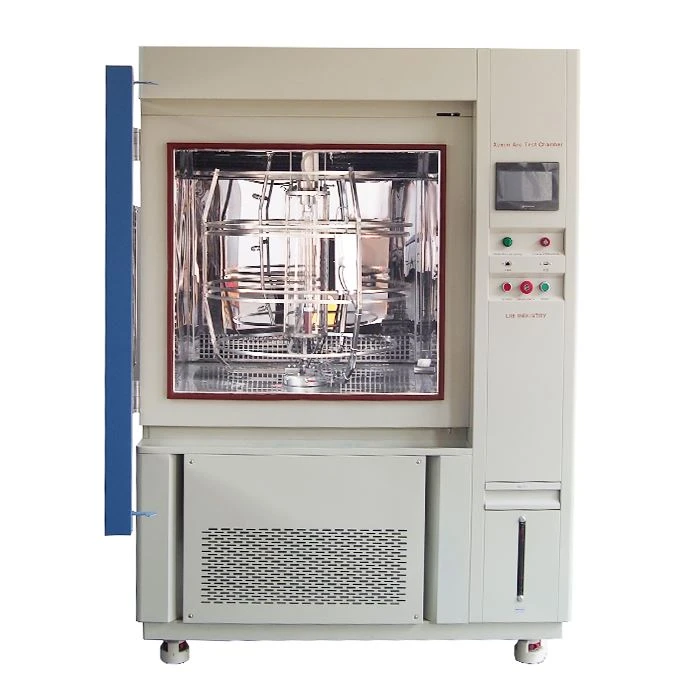

Weather Simulation Chamber
Weather Simulation Chamber
Application: Aging Test,Textiles;
Bandwidth Measurement:300~400nm;
300~400nm: -40～ 100 ℃ ±2℃;
Black Panel Temperature: 35 ～ 85 ℃ ;
Humidity Range30% ~ 98% RH;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of weather simulation chamber in China, featured by quality products and low price. Welcome to buy CE approved weather simulation chamber in stock here and get quotation from our factory. Contact us for discount information.
Weather Simulation Chamber adopts xenon arc lamp which can simulate the full sunlight spectrum to reproduce the destructive light waves existing in different environments.
Xenon Weather Chember can be used for the selection of new materials, the improvement of existing materials or the test to evaluate the change of durability after the change of material composition.
Video
Technical Parameters
| Name | Weather Simulation Chamber |
Model | XL-S-500 |
Internal Dimension (mm) | 500*600*700 mm |
Overall Dimension (mm) | 1000*2450*1990 mm |
Sample holder | Adjustable speed, 1r/min |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter |
Irradiance Range | 150W/㎡ |
Bandwidth Measurement | 300~400nm |
Chamber Temperature Range | -40～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 30% ~ 98% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Radiometer | UV Radiometer, Tolerance: ±5% |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Details
 |  |  |
| Sample holder | Compressor and water circulation system | Radiometer & Sensors |
 |  |
Equipment Characteristics
1. Climate test chamber equipped with full spectrum water-cooled lamp;
2. A variety of filtration systems to choose from;
3. Water spray function;
4. Climate resistance chamber ,Air humidity control system of test chamber;
5. Customizable sample rack
6. The service life of xenon arc lamp depends on the irradiance level used. The service life of general lamp is 1600 hours; The lamp tube is replaced conveniently and quickly, and the long-term filter of xenon lamp aging test chamber provides guarantee for maintaining the required spectrum
Hot Tags: weather simulation chamber, manufacturers, suppliers, factory, cost, price, used, specification, for sale, Light Fastnesss Accelerated Weathering Fadeometer, cable xenon arc lamp test chamber, Sunshine Carbon Arc Lamp, UVA 340 Aging Test Chamber, Xenon Arc Accelerated Weathering Chamber, cable against UV test chamber
