Xenon Accelerated Weathering Apparatus
Temperature Range: Ambient～100℃±2℃;
Humidity Range: 50%~98% RH;
Irradiance: 35~150 W/㎡;
BPT Temperature: 35℃～85℃±2℃;
Color fastness test;
Light aging test;
Display of diagnostic Messages;
Safety protect system
Xenon Accelerated Weathering Apparatus
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of xenon accelerated weathering apparatus in China, featured by quality products and low price. Welcome to buy CE approved xenon accelerated weathering apparatus in stock here and get quotation from our factory. Contact us for discount information.
Xenon accelerated weathering apparatus is the simulation of full-spectrum sunlight. Rain and dew are simulated using an optional water spray system. The sequence of light, dark, and spray periods are automatically controlled.
Xenon accelerated weathering test apparatus used to test the relative durability of materials. Deterioration observed including fading, chalking, cracking, crazing, hazing, blistering, gloss loss, strength loss, and embrittlement.
Specification
| Name | Xenon Accelerated Weathering Apparatus |
Model | XL-S-750 |
Internal Dimension (mm) | 950*950*850 mm |
Overall Dimension (mm) | 1300*1420*1800 mm |
Specimen Holder Size(mm) | 95*200 |
Specimen Capacity | 42pcs |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter |
Irradiance Range | 35~150 W/㎡ |
Bandwidth Measurement | 300nm~400nm (340nm or 420nm) |
Chamber Temperature Range | Ambient ～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 50% ~ 98% RH |
Controller | Programmable color LCD touch screen controller |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 stainless steel |
Power Supply | AC380V 50Hz |
Maximum Noise | 65 dBA |
Environmental Conditional | 5℃～+35 ℃ ≤85% RH |

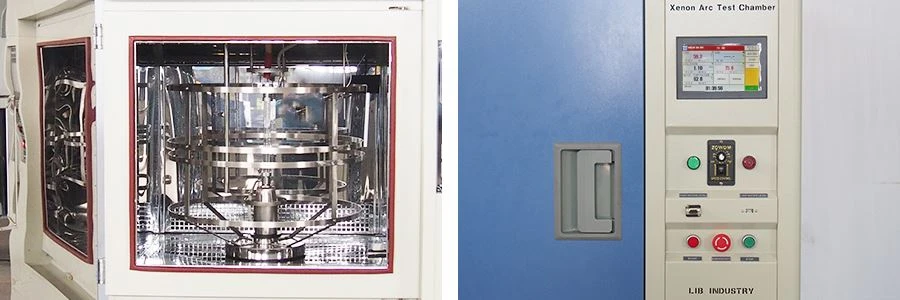

Details Design
 | |
Workroom | Programmable controller |
 | |

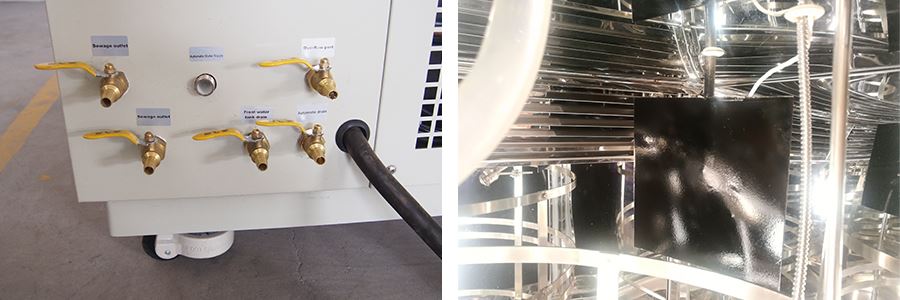

| Automatic feed water system | Xenon lamp |
Features
1. The inner liner is made of superior stainless steel plate and the outer shell is SUS304.Stainless steel oil hairline plate.
2. Dynamic rotating sample holder with adjustable rotating speed.
3. Imported numerical control instrument, small imported time programmer.
4. Blackboard thermometer.
5. Various safety protection devices.
6. Xenon test apparatus easy to operate
7. The testing machine provides highly accurate and reliable test results.
Applications
Xenon accelerated test apparatus is approved by many OEMs in the textiles, paints & coatings and plastics industries as the exclusive platform to deliver accurate, reproducible and repeatable results for predicting service life. The Series has been certified CE, UL, CSA, ISO and EN compliant
IP Rain Spray Testing
