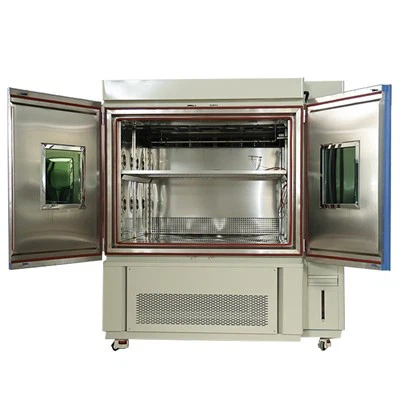

Xenon Lamp Solar Simulator Chamber
Temperature Range: Ambient～100℃±2℃;
Humidity Range: 50%~98% RH;
Irradiance: 35~150 W/㎡;
BPT Temperature: 35℃～85℃±2℃;
Free calibration;
Color fastness test;
Xenon lamp radiation;
Two independent water systems, effectively protecting xenon lamp
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of xenon lamp solar simulator chamber in China, featured by quality products and low price. Welcome to buy CE approved xenon lamp solar simulator chamber in stock here and get quotation from our factory. Contact us for discount information.
Xenon lamp solar simulator chamber reproduces the damage caused by full-spectrum sunlight and rain. In a few days or weeks, the xenon weathering chamber can reproduce the damage that occurs over months or years outdoors.
Accelerated Weathering Chamber is a full-featured weathering, lightfastness and photostability chamber at a breakthrough price. It provides precise control of critical test parameters including spectrum, irradiance, relative humidity, chamber temperature and black panel/black standard temperature.
Technical Parameters
| Name | xenon lamp solar simulator chamber |
|
Model |
XL-S-750 |
|
Internal Dimension (mm) |
950*950*850 mm |
|
Overall Dimension (mm) |
1300*1420*1800 mm |
|
Specimen Holder Size (mm) |
95*200 |
|
Chamber Type |
Rotating Holder |
|
Irradiation Source |
1 piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter |
|
Irradiance Range |
35~150 W/㎡ |
|
Bandwidth Measurement |
300 nm~400 nm (340 nm or 420 nm) |
|
Chamber Temperature Range |
Ambient ～ 100 ℃ ±2℃ |
|
Black Panel Temperature |
BPT 35 ～ 85 ℃ ±2℃ |
|
Humidity Range |
50% ~ 98% RH |
|
Humidity Deviation |
± 5% RH |
|
Water Spray Cycle |
1~9999H59M (Adjustable) |
|
Water supply system |
Automatic water supply,Water purification system |
|
Build-in Water Tank (mm) |
270*300*900 |
|
View Window Size (mm) |
250*330 |
|
Air Circulation |
Centrifugal wind fan |
Details
|
1. Workroom |
2. Rotating Specimen Holder | 3. Irradiation Source |
|
The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion resistance. Nice ruggedness and long life. |
Inside, there is a rotating specimen holder, which rotates around the xenon lamp，so that the irradiance received by the specimen is relatively uniform during the test. Total can mount 42 pieces of specimen. |
Irradiation Source with 1 piece of 4500 W water-cooled xenon lamp with inner quartz and outer borosilicate filter Average Lamp Life is 1600 hours. |
|
|
|
|
|
4. Viewing Window |
5. Controller |
6. Water Re-circulation |
|
Double layer insulating glass 8cm thickness, made of tempered glass. The conductive film is located on the interior glass to prevent window frosting, built-in LED light for the work room lighting ;can clearly observe samples. The light control button is located below the controller. |
PID programmable color touch screen controller, network connection computer. Can edit 120 programs 100 segments. LIB also can preset program into the controller based on user testing requirements. The set system language is English for standard. |
Water purifier: mainly purification from water source to water tank. Water re-circulation system that reduced water use and a series of water pipes |
|
|
|
|
 |
 |
|
Radiometer |
Black Panel Thermometer |
