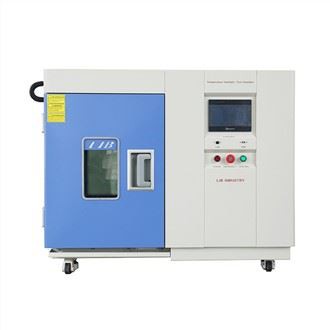

Bench Top Chambers
Name:Bench Top Chambers
Model: 50L & 80L;
Temperature Range: -20℃～+150 ℃;
Temperature Fluctuation: ± 0.5 ℃;
Temperature Deviation: ± 2.0 ℃;
Humidity Range: 20% ~ 98% RH;
Cooling Rate: 1 ℃ / min;
Heating Rate:3 ℃ / min;
Refrigerant:Environmental refrigerant;
Standard and Custom;
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of bench top chambers in China, featured by quality products and low price. Welcome to buy CE approved bench top chambers in stock here and get quotation from our factory. Contact us for discount information.
The Bench Top Chambers is the same as the standard temperature chamber in terms of function and performance, but the small temperature chamber has a smaller box capacity.
●Temperature range: 150°C ~ -40°C; 150℃~ -70℃
●Cooling rate: 1°C/min or 3°C/min
Video
Parameters
| Name | Bench Top Chambers | |
| Model | TH-50 | TH-80 |
| Internal dimension (mm) | 320*350*450 | 400*400*500 |
| Overall dimension (mm) | 800*1050*950 | 900×1100×1000 |
| Temperature range | -20℃ ~+150 ℃ | |
| Low type | Ⅰ: -40℃ Ⅱ: -70℃ Ⅲ: -86℃ | |
| Temperature fluctuations | ± 0.5 ℃ | |
| Humidity Range | 10%/20%~95% | |
| Temperature deviation | ± 2.0 ℃ | |
| Heating rate | 3 ℃ / min | |
| Cooling rate | 1 ℃ / min | |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | |
| Temperature Resolution | ± 0.001 ℃ | |
| Exterior Material | Steel Plate with A protective coating | |
| Interior Material | SUS304 stainless steel | |
| Power Supply | AC220V 50HZ | |
| Environmental conditional | 5℃~+40 ℃ ≤85% RH | |
Details
 |  |  |
Controller | Link and USB | Test Hole |
|
|
Standard Configuration
◆Benchtop temperature chamber，Laser technology cutting, CNC sheet metal processing;
◆Beautiful and generous shape, novel and non-reactive handle, flexible and convenient operation;
◆The internal bladder of the box is made of imported high-grade stainless steel (SUS#304);
◆Bench Top Chamber，Mirror panel or 304B argon arc welding made, the outside of the box is sprayed with A3 steel plate.
◆Patented design of the outer box appearance of reasonableness;
