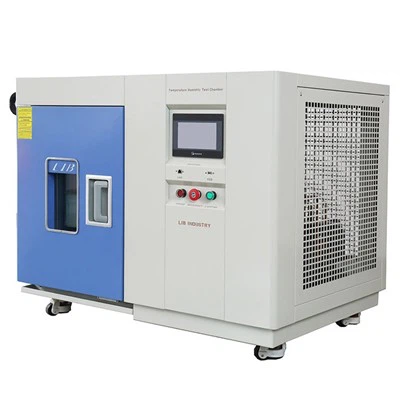

Benchtop Environmental Chamber
Name:Benchtop Environmental Chamber
Model:50L & 80L;
Temperature Range:-20℃～+150 ℃;
Temperature Fluctuation:± 0.5 ℃;
Temperature Deviation:± 2.0 ℃;
Humidity Range:20% ~ 98% RH;
Cooling Rate:1 ℃ / min;
Heating Rate:3 ℃ / min;
Refrigerant:Environmental refrigerant;
Standard and Custom;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of benchtop environmental chamber in China, featured by quality products and low price. Welcome to buy CE approved benchtop environmental chamber in stock here and get quotation from our factory. Contact us for discount information.
Benchtop environmental chamber can simulate a variety of temperature and humidity environment, suitable for detecting electronic, automotive, rubber, plastic glue, metal and other products.
The temperature and humidity test chamber can meet the parameters of reliability and stability under various harsh environments. Will provide you with a basis for predicting and improving product quality and reliability.
Video
Parameters
|
Model |
TH-50 |
TH-80 |
||
|
Internal Dimension (mm) |
320*350*450 |
400*400*500 |
||
|
Overall Dimension (mm) |
800*1050*950 |
900*1100*1000 |
||
|
Interior Volume |
50L |
80L |
||
|
Heat load |
1000W |
|||
|
Parameter |
Temperature Range |
A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ |
||
|
Temperature Fluctuation |
± 0.5 ℃ |
|||
|
Temperature Deviation |
± 2.0 ℃ |
|||
|
Humidity Range |
20% ~ 98% RH |
|||
|
Humidity Deviation |
± 2.5% RH |
|||
|
Cooling Rate |
1 ℃ / min |
|||
|
Heating Rate |
3 ℃ / min |
|||
|
Structure |
Cooling |
Cooling system |
Mechanical compression refrigeration system |
|
|
Refrigerating unit |
French TECUMSEH compressor |
|||
|
Refrigerant |
R404A, R23 |
|||
|
Heating Element |
Nichrome heater |
|||
|
Controller |
Programmable color LCD touch screen controller |
|||
|
Ethernet connection, PC Link |
||||
|
Humidity |
Humidifier |
External isolation, stainless steel surface evaporation humidifier |
||
|
Dehumidification |
Evaporator |
|||
|
Sensor |
Temperature Sensor |
PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃ |
||
|
Humidity Sensor |
Dry and wet bulb sensor |
|||
|
Build-in Water Tank (mm) |
150*350*180 |
|||
|
View Window Size (mm) |
120*150 |
|||
|
Air Circulation |
Centrifugal wind fan |
|||
|
Safety Device |
Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection |
|||
|
Material |
Exterior Material |
Steel Plate with protective coating |
||
|
Interior Material |
SUS304 stainless steel |
|||
|
Thermal Insulation |
Polyurethane foam and insulation cotton |
|||
|
Observation Window |
Interior lighting, double-layer thermo stability silicone rubber sealing |
|||
Details
 |
 |
 |
|
Controller |
PC Link and USB | Cable Hole |
|
|
|
Standard Configuration
●Test hole
The test hole on the left side of the temperature test chamber can be used with external test power cable or signal cable (aperture or number of holes can be according to customer's instructions)
●Castor
The humidity test chamber adopts a fixed PU movable wheel, which can easily move the machine to the specified position, and finally fix the casters.
LIB Environmental is one of the professional and credible manufacturers of climatic and environmental testing chambers in China. Equipped with a professional factory, we can offer you benchtop environmental chambers with competitive price. Now we have high quality benchtop environmental chambers for sale, welcome to buy our test chamber at low cost and check the price with our supplier.
Hot Tags: Benchtop Environmental Chamber, manufacturers, suppliers, factory, cost, price, used, specification, for sale, Small Environmental Test Chamber, Portable Climatic Simulation Chamber Benchspecification, Small Artificial Climate Chamber, high low temperature chamber, Small Temperature Humidity Test Chamber, Portable Cooling Environmental Chamer
