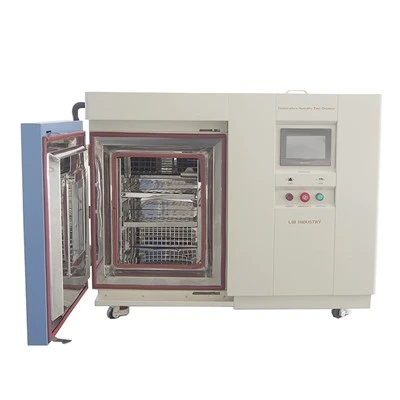

Benchtop Temperature Test Chambers
Name:Benchtop temperature test chambers
Model:50L & 80L;
Temperature Range:-20℃～+150 ℃;
Temperature Fluctuation:± 0.5 ℃;
Temperature Deviation:± 2.0 ℃;
Humidity Range:20% ~ 98% RH;
Cooling Rate:1 ℃ / min;
Heating Rate:3 ℃ / min;
Refrigerant:Environmental refrigerant;
Standard and Custom;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of benchtop temperature test chambers in China, featured by quality products and low price. Welcome to buy CE approved benchtop temperature test chambers in stock here and get quotation from our factory. Contact us for discount information.
Benchtop temperature test chambers can simulate a variety of temperature and humidity environment, suitable for detecting electronic, automotive, rubber, plastic glue, metal and other products. It can meet the parameters of reliability and stability under various harsh environments. Will provide you with a basis for predicting and improving product quality and reliability.
Video
Parameters
| Name | Benchtop temperature test chambers | |
| Model | TH-50 | TH-80 |
| Internal dimension (mm) |
320x350x450 |
400x400x500 |
| Overall dimension (mm) | 800x1050x950 | 900×1100×1000 |
| Temperature range | -20℃ ~+150 ℃ | |
| Low type | Ⅰ: -40℃ Ⅱ: -70℃ Ⅲ: -86℃ | |
| Temperature fluctuations | ± 0.5 ℃ | |
| Humidity Range | 10%/20%~95% | |
| Temperature deviation | ± 2.0 ℃ | |
| Heating rate | 3 ℃ / min | |
| Cooling rate | 1 ℃ / min | |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | |
| Temperature Resolution | ± 0.001 ℃ | |
| Exterior Material | Steel Plate with A protective coating | |
| Interior Material | SUS304 stainless steel | |
| Power Supply | AC220V 50HZ | |
| Environmental conditional | 5℃~+40 ℃ ≤85% RH | |
Details
 |
 |
 |
|
Controller |
Link and USB | Test Hole |
|
|
|
Standard Configuration
●Test hole
The test hole on the left side of the temperature test chamber can be used with external test power cable or signal cable (aperture or number of holes can be according to customer's instructions)
●Castor
The humidity test chamber adopts a fixed PU movable wheel, which can easily move the machine to the specified position, and finally fix the casters.
