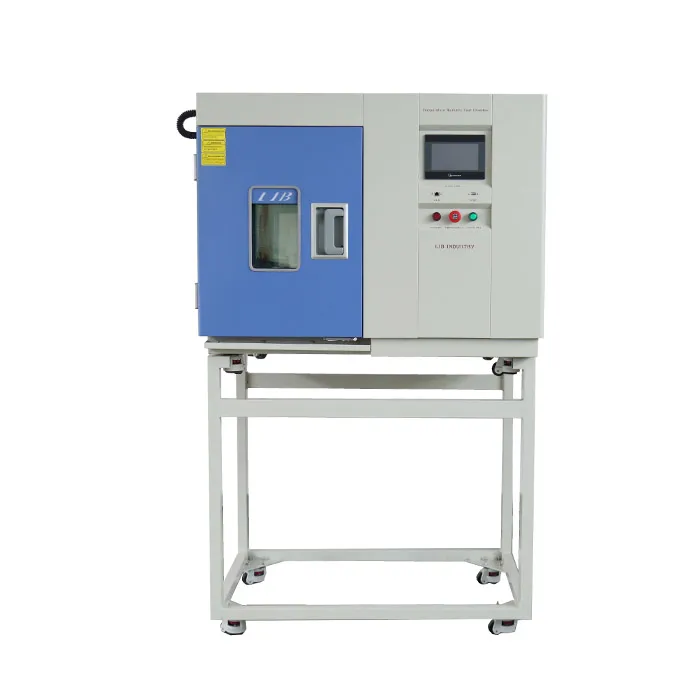

Small Climatic Chamber
Name:Small Climatic Chamber;
Temperature Range: -20℃～+150 ℃;
Temperature Fluctuation: ± 0.5 ℃;
Temperature Deviation: ± 2.0 ℃;
Humidity Range: 20% ~ 98% RH;
Cooling Rate: 1 ℃ / min;
Heating Rate:3 ℃ / min;
Refrigerant:Environmental refrigerant;
Standard and Custom;
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of small climatic chamber in China, featured by quality products and low price. Welcome to buy CE approved small climatic chamber in stock here and get quotation from our factory. Contact us for discount information.
Description
LIB INDUSTRY focuses on development and production of small climatic chamber
, small temperature machine specifically testing the materials in resistance of heat, cold, dry and moisture. humidity testing machine is small size and not take up space.
Temperature and Humidity Range
Temperature Range:
●Type A:-20℃ ～+150 ℃.
●Type B: -40℃～+150 ℃.
●Type C:-70℃ ～+150 ℃.
●Type D:-86℃ ～+150 ℃.
Humidity Range:
20% ~ 98% RH
Video
Parameters
| Name | Small Climatic Chamber | |
| Model | TH-50 | TH-80 |
| Internal dimension (mm) | 320*350*450 | 400*400*500 |
| Overall dimension (mm) | 800*1050*950 | 900×1100×1000 |
| Temperature range | -20℃ ~+150 ℃ | |
| Low type | Ⅰ: -40℃ Ⅱ: -70℃ Ⅲ: -86℃ | |
| Temperature fluctuations | ± 0.5 ℃ | |
| Temperature deviation | ± 2.0 ℃ | |
| Heating rate | 3 ℃ / min | |
| Cooling rate | 1 ℃ / min | |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | |
| Temperature Resolution | ± 0.001 ℃ | |
| Power Supply | AC220V 50HZ | |
| Environmental conditional | 5℃~+40 ℃ ≤85% RH | |
Details

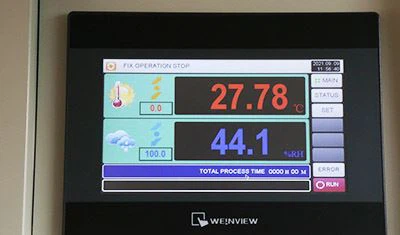

 | LCD touch screen controller, friendly interface, easy operation. |
 | small climatic chamber use environmentally friendly refrigerants |
1. Perfect design: the arc shape and surface coating processing, high body appearance, and USES the plane has no reaction, easy to operate, safe and reliable.
2. Large observation window: keep clear observation of the effect of the sample to observe the situation.
3. Temperature environment chamber,Water and electricity separation design, improve security.
