Vibration Climatic Test Chamber

LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of vibration climatic test chamber in China, featured by quality products and low price. Welcome to buy CE approved vibration climatic test chamber in stock here and get quotation from our factory. Contact us for discount information.

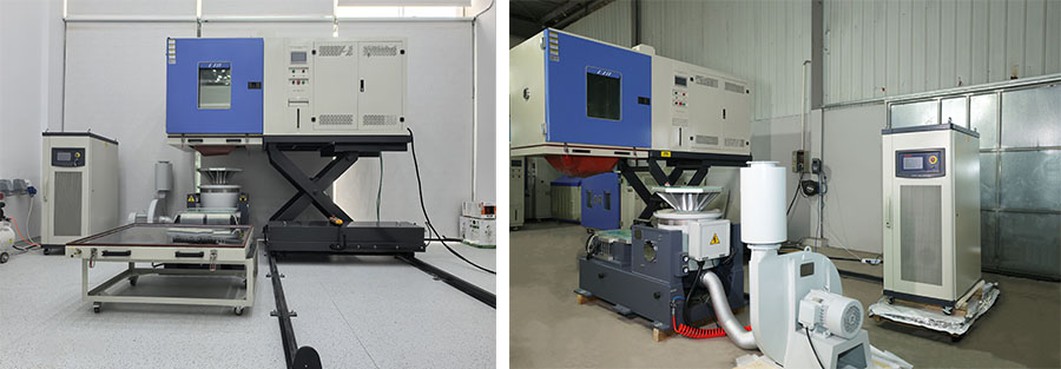

The Vibration Climatic Test Chamber combines a precise climatic chamber with a powerful vibration shaker to simulate rapid temperature/humidity changes and multi-axis vibration. It supports vertical/horizontal vibration, adjustable table heights, and independent climatic or vibration operation. Equipped with PC link/USB and programmable profiles, it can make reliability testing.



Suitable for aerospace, electronics, materials, and components, the Vibration Climatic Test Chamber meets key standards including IEC 60068, MIL-STD 781/883, DO-160, ISO 16750-3, ISO 26262, and so on.





Model		THV-1000
Internal Dimension (mm)		1000*1000*1000
Overall Dimension (mm)		1800*4600*2600
Interior Volume		1000L
Parameter	Temperature Range	-50℃ ～ +150 ℃
	Temperature Fluctuation	± 0.5 ℃
	Temperature Deviation	± 2.0 ℃
	Humidity Range	30% ~ 98% RH
	Humidity Deviation	± 2.5% RH
	Cooling Rate	5 ℃ / min
	Heating Rate	5 ℃ / min
	Rated Force of Vibration	1000kgf
	Frequency Range of Vibration	2 to 4000 Hz
	Armature Diameter of shaker	φ240mm
Structure	Cooling	Cooling system	Mechanical compression refrigeration system
		Refrigerating unit	French TECUMSEH compressor
	Heating Element	Nichrome heater
	Controller	Programmable color LCD touch screen controller,Ethernet connection, USB
	Humidity	Water supply system	Automatic water supply
		Water supply system	Water purification system
		Humidifier	External isolation, stainless steel surface evaporation humidifier
		Dehumidification	Evaporator
	Vibration	horizontal sliding table	600*600 mm
		Power Amplifier	Digital power amplifier
		Head Expander	600*600 mm
		Blower	4Kw blower, including muffler.
		Max load	500kgs
	Sensor	Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃
		Humidity Sensor	Dry and wet bulb sensor
	Build-in Water Tank (mm)	270*300*450
	View Window Size (mm)	330*370
	Air Circulation	Centrifugal wind fan
	Safety Device	Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection
Material	Exterior Material	A3 Steel Plate with protective coating
	Interior Material	SUS304 stainless steel
	Thermal Insulation	Polyurethane foam and insulation cotton
	Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration		Cable hole with plug; 2 shelves
Maximum Noise		65 dBA







1. Three-Stress Capability: Simultaneous thermal, humidity and mechanical vibration to replicate field conditions.



2. Stand-Alone Operation: Chamber can perform temperature/humidity cycles without vibration, or run vibration tests independently from climatic control.



3. Powerful Vibration Assembly：The system includes a vibration table, shaker, power amplifier, and cooling fan. The amplifier boosts the signal to drive the table for strong, stable vibration, handling loads up to the rated capacity.



4. Stable Humidification & Control: Balanced humidification with PID control and wet-bulb sensing yields tight RH control across 30%–98% RH. Condensate management and drain provisions protect samples during high-RH cycles.



5. High-Efficiency Blower: Equipped with a 4 kW high-efficiency blower with built-in muffler to provide strong, even air circulation while keeping operation quiet.



6. Customizable Design: Options include explosion-proof build, cable holes, custom doors, and other standard configurations.
