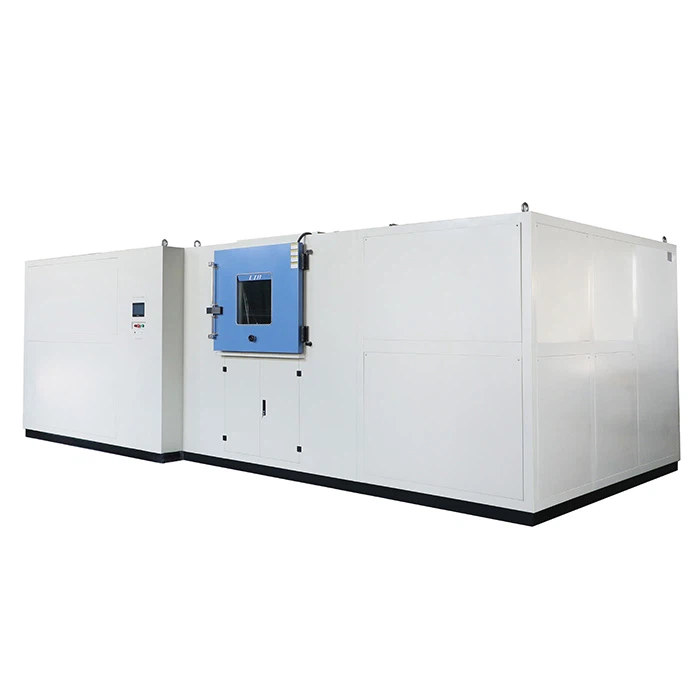

Blowing Sand Test Machine
Name:Blowing Sand Test Machine
Interior Volume:1000L；
Air velocity: 1.5 -8.9m/s；
Concentration of dust:10.7±7g/ m³；
Dust particles : ＜ 150μm；
Air velocity: 18.0 -29.0m/s；
Concentration of sand:0.18+0.2g/m³；
Sand particles：149μm - 600μm, 600μm - 850μm；
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of blowing sand test machine in China, featured by quality products and low price. Welcome to buy CE approved blowing sand test machine in stock here and get quotation from our factory. Contact us for discount information.
The blowing Sand Test Machine is suitable for evaluating the adaptability of mechanical, optical, electrical, electronic, electrochemical and electromechanical devices that may be exposed to dry sand blowing, dust blowing or dust-dropping conditions.
Specifications
| Name | Blowing Sand Test Machine |
Model | DIM-1000 |
Internal Dimension | 1000*1000*1000mm D*W*H |
Overall Dimension | 2800*3500*2000mm D*W*H |
Interior Volume | 1000L |
Blowing Dust | |
Air velocity | 1.5 -8.9m/s |
Concentration of dust | 10.7±7g/ m³ |
Dust particles | ＜ 150μm |
Blowing sand | |
Air velocity | 18.0 -29.0m/s |
Concentration of sand | 0.18+0.2g/m³; 1.1+0.3g/m³; 2.2+0.5g/m³ |
Sand particles | 149μm - 600μm, 600μm - 850μm |
Controller | Programmable color LCD touch screen controller |
Door Lock | Electromagnetic lock |
Testing Platform Diameter | 600mm |
Testing Platform Speed | 1-7 r.p.m |
Exterior Material | A3 Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Power Supply | 380V 50Hz |
Maximum Noise | 65 dBA |
Standard | MIL-STD- 810g |
Design Detail
 |  |
| Workroom | Large Centrifugal Fan |
 |  ● |
Features
• The equipment is an integral frame (rotary) structure. The test box is located in the middle of the equipment, the fan is in the middle and rear of the equipment, and the rotary circulating air duct is connected to the test device.
• The air inlet end of the studio has a rotating sand and dust feeding device to meet the needs of sand and dust blowing. The air sand separator is located in the air outlet of the sand chamber.
• The circulating air duct is equipped with far-infrared heater, freezing dehumidification device, and bell jar type temperature and humidity control system
• The door of the chamber is provided with an observation window and a dust wiper. The test box is a single door and sealed with double-layer aging-resistant silicone rubber.
Hot Tags: blowing sand test machine, manufacturers, suppliers, factory, cost, price, used, specification, for sale, Dust Circulating Chamber, Dust Proof Chamber, IP5X Battery Dust Test Chamber, MIL STD 810H METHOD 510 Dust And Sand Test Chamber, Sand Dust Simulation Test Chamber, sand test chamber
