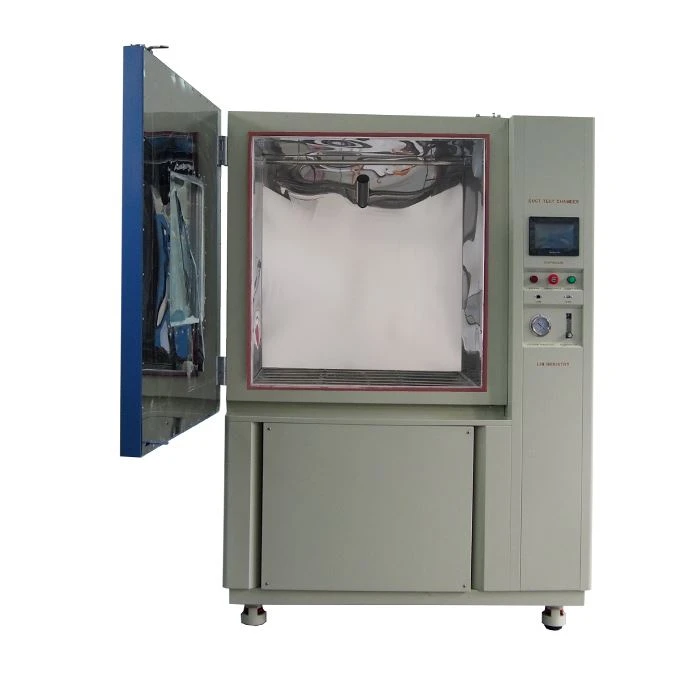

Dustproof Test Cabinet
Name:Dustproof Test Cabinet
Standard：IEC 60529, ISO 20653
Temperature: ambient～+50℃；
Dust concentration: 2～4kg/m³；
Blowing time: 0～99H59M；
Place of Origin : China；
Delivery Time : 8-14 days；
Maximum Noise:65 dBA；
Environmental Conditional：5℃～+35 ℃，≤85% RH；
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of dustproof test cabinet in China, featured by quality products and low price. Welcome to buy CE approved dustproof test cabinet in stock here and get quotation from our factory. Contact us for discount information.
Dustproof Test Cabinet, which simulates the destructiveness of natural wind and sand climate to products, is suitable for testing the sealing performance of the shell of products.
Dustproof cabinet is mainly used for the tests of ip5x and ip6x levels specified in the shell protection level standard.
Video
Specifications
| Name | Dustproof Test Cabinet | |
Model | DI 1000 (1000L) | |
Temperature Range | Ambient ~ +50 degree | |
Humidity Range | < 30% RH | |
Normal Wire Diameter | 50um | |
Nominal Width of a Gap Between wires | 75um | |
Specimen Power Outlet | Dust-proof socket 16A | |
Heating Element | Nichrome heater | |
Vacuum System | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube | |
Controller | Programmable color LCD touch screen controller，Ethernet connection, PC Link | |
Door Lock | Electromagnetic lock | |
Maximum Noise | 65 dBA | |
Environmental Conditional | 5℃～+35 ℃ ≤85% RH | |
Standard | IEC 60529, ISO 20653 | |
Design Detail
 |  |
| Test Area | LAN and USB |
 |  |
Features
1. Dust test cabinet,A large observation window is set in the middle of the box door, and a lamp is installed to clearly observe the whole test process.
2. The material of the outer box of the sand and dust test box is made of stainless steel laser cutting, which is beautiful and accurate
3. Nickel chromium alloy high-speed heating electric heating tube
4. Color touchable controller, easy to operate
5. Sand test cabinetTalc powder can be recycled
Hot Tags: dustproof test cabinet, manufacturers, suppliers, factory, cost, price, used, specification, for sale, Dust proof test machine, Dust Proof Chamber, IP66 waterproof tester, Dust Climatic Chamber, IP66 dust proof tester, Talcum Powder For IP Testing Purpose In Lab
