IP68 Testing Kit

Name: IP68 Testing Kit Manufacturers, Suppliers, Factory - Cost Price - LIB Industry
Brand: LIB Environmental Simulation Industry
SKU: 218261008

Name:IP68 Testing Kit
Temperature: ambient～+50℃；
Dust concentration: 2～4 kg/m³；
Blowing time: 0～99H59M；
Place of Origin : China；
Delivery Time : 8-14 days；
Maximum Noise:65 dBA；
Environmental Conditional：5℃～+35 ℃，≤85% RH；
Standard：IEC 60529, ISO 20653

Send Inquiry

Description

LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of ip68 testing kit in China, featured by quality products and low price. Welcome to buy CE approved ip68 testing kit in stock here and get quotation from our factory. Contact us for discount information.

IP68 Testing Kit is a test machine produced by LIB according to the international standard IEC60529, in order to test the waterproof and dustproof ability of the shell.

Video

Specifications of IP6X test chamber

Model		DI-800
Internal Dimension (mm)		80010001000
Overall Dimension (mm)		104014501960
Interior Volume (L)		800
Temperature Range	Ambient ~ +50℃
Humidity Range	< 30% RH
Normal Wire Diameter	50um
Nominal Width of a Gap Between wires	75um
Fight Time	0 ~ 99H59M
Blowing Time	0 ~ 99H59M

Design Details

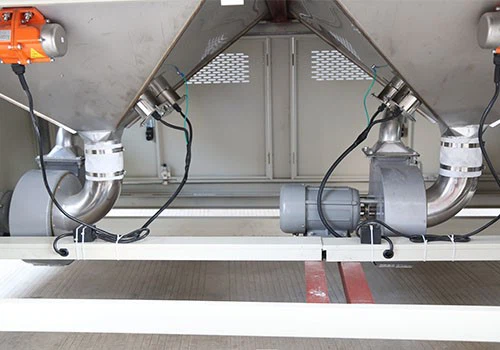

Programmable controller	Dust circulation system

IP68 testing kit 7

IP68 testing kit 8

Funnel

The vibrating motor is installed on the outer wall of the funnel to make the sand dust fall back more smoothly.

Observation window with wiper

The studio door cannot be opened by default in the dust blown state, and you need to observe the test by cleaning the glass with a manual wiper.

Application Areas

The IPX6 dust test chamber is widely used in the automotive industry to test the resistance level of various car parts and components such as engine filters, air conditioning systems, and electronic components to dust and water.
The IPX6 dust test chamber is widely used in the automotive industry to test the resistance level of various car parts and components such as engine filters, air conditioning systems, and electronic components to dust and water.
The military and defense industry are using the IPX6 dust test chamber to test the endurance level of their equipment to dust and water during harsh environmental conditions, such as deserts and war-torn regions.

Specifications of IPX8 test chamber

Model	R78-600
Internal Dimension (mm)	Diameter 600 mm * Height 1500 mm
Overall Dimension (mm)	Diameter 800 mm * Height 1800 mm
Pressure	50m water depth pressure
Open mode	Pneumatic lid
Material	A3 steel plate, wall thickness 15 mm
Controller	Programmable color display touch screen controller
Water Supply System	Storage water tank, Automatic water supply
Power	AC380V 50Hz

IPX8 Water Test Chamber

The test is made by completely immersing the enclosure in water in its service position as specified by the manufacturer.

Advantages

●Fixing device for safety

The tank is of cylindrical design, and the bottom must be supported by a tripod. Designed a Z-shaped foot with three M8 holes, which has good grip and requires user to fix the equipment with screws to ensure safety.

●Sample holder

We have designed a height-adjustable sample holder to prevent the sample from floating during the immersion test.

●Pressure limiting protection

An independent manual setting pressure limiting device is specially designed to ensure effective control of the pressure in the tank.
