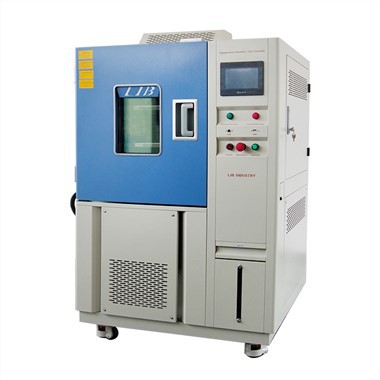

Accelerated Shelf Life Testing Equipment
Name: Accelerated Shelf Life Testing Equipment;
Model: TH-100/TH-225/TH-500;
Temperature Range: 70℃ ～ +150 ℃;
Controller: Programmable controller;
Ethernet connection, PC Link
Heating Rate3 ℃ / min
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of accelerated shelf life testing equipment in China, featured by quality products and low price. Welcome to buy CE approved accelerated shelf life testing equipment in stock here and get quotation from our factory. Contact us for discount information.
LIB focuses on the research and development of Accelerated Shelf Life Testing Equipment. The equipment meets the temperature test range of -86 ℃ ~ +180 ℃, and meets the humidity test range of 10%~98%r.h. the control accuracy is high, the test is reliable, and the quality is stable.
Video
Main Parameter
| Name | Accelerated Shelf Life Testing Equipment | |
|
Model |
TH-225 |
|
|
Internal Dimension (mm) |
500*600*750 |
|
|
Overall Dimension (mm) |
1000*1140*1870 |
|
|
Interior Volume |
225L |
|
|
Heat load |
1000W |
|
|
Temp. Range |
A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ |
|
|
Temp. Fluctuation |
± 0.5 ℃ |
|
|
Temp. Deviation |
± 2.0 ℃ |
|
|
Humidity Range |
20% ~ 98% RH |
|
|
Humidity Deviation |
± 2.5% RH |
|
|
Cooling Rate |
1 ℃ / min |
|
|
Heating Rate |
3 ℃ / min |
|
|
Refrigerant |
R404A, R23,R449A,R508B |
|
|
Controller |
Programmable color LCD touch screen controller |
|
|
Water supply system |
Automatic water supply,Water purification system |
|
|
Temperature Sensor |
PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃ |
|
|
Exterior Material |
Steel Plate with a protective coating |
|
|
Interior Material |
SUS304 stainless steel |
|
|
Power Supply |
220V 50Hz / 380V 50Hz |
|
Details of the Accelerated Shelf Life Testing Equipment
|
|
|
|

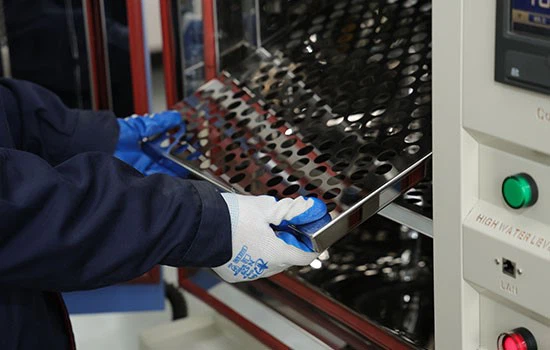

Adjustable sample holder
|
Water purification and water recycling systems
|
 |
 |
Product Feature
1. Data storage and transmission; The device records test data every minute for up to three years. You can export the test data stored and input by the controller through the USB interface or by connecting the computer.
2. Water replenishment method: There are two types of water intake, manual and automatic.
3. Program capacity: 100 program groups, 100 segments can be set.
4. Air circulation: Two fans are installed above the studio to enhance air circulation and thus provide even temperature and humidity to the workroom.
5. Security protection: LIB pays attention to test security, and installs perfect security Settings for each machine, such as over temperature protection, overcurrent protection, earth leakage protection, etc.
