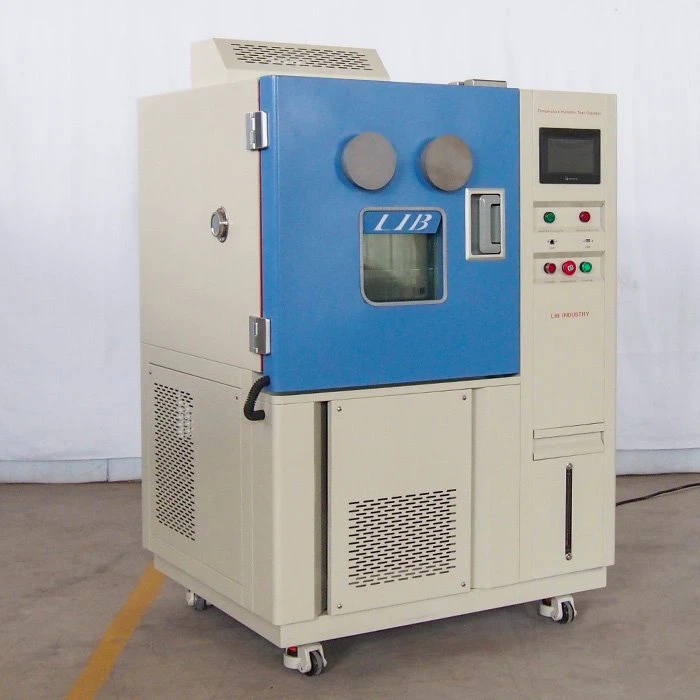

Constant Climatic Chamber
Name: Constant climatic chamber;
Model: TH-100/TH-225/TH-500;
Temperature Range: 70℃ ～ +150 ℃;
Controller: Programmable controller;
Ethernet connection, PC Link
Heating Rate3 ℃ / min
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of constant climatic chamber in China, featured by quality products and low price. Welcome to buy CE approved constant climatic chamber in stock here and get quotation from our factory. Contact us for discount information.
Constant climatic chamber is mainly used to simulate temperature and humidity conditions, test the performance of high and low temperature resistance of products in actual use, and help manufacturers find defects of products.
Video
Main Parameter
| Name | Constant Environmental Chamber | |
|
Model |
TH-100 |
TH-225 |
|
Internal Dimension (mm) |
400*500*500 |
500*600*750 |
|
Overall Dimension (mm) |
900*1050*1620 |
1000*1140*1870 |
|
Interior Volume |
100L |
225L |
|
Heat load |
1000W |
|
|
Temp. Range |
A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ |
|
|
Temp. Fluctuation |
± 0.5 ℃ |
|
|
Temp. Deviation |
± 2.0 ℃ |
|
|
Humidity Range |
20% ~ 98% RH |
|
|
Humidity Deviation |
± 2.5% RH |
|
|
Cooling Rate |
1 ℃ / min |
|
|
Heating Rate |
3 ℃ / min |
|
|
Refrigerant |
R404A, R23,R449A,R508B |
|
|
Controller |
Programmable color LCD touch screen controller |
|
|
Water supply system |
Automatic water supply,Water purification system |
|
|
Temperature Sensor |
PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃ |
|
|
Humidity Sensor |
Dry and wet bulb sensor |
|
|
Exterior Material |
Steel Plate with a protective coating |
|
|
Interior Material |
SUS304 stainless steel |
|
|
Power Supply |
220V 50Hz / 380V 50Hz |
|
|
Maximum Noise |
65 dBA |
|
Details of the Advantage
 |
Advantages
Fully sealed rubber gloves are installed on the door of the temperature test chamber, which can be turned over and viewed during the test |
 |
 |
Characteristics
1. There are two rubber gloves on the door of constant climatic chamber for easy observation of samples
2. The temperature and humidity are broad, which can meet the test of various temperature and humidity ranges
3. Water circulation system to save water
4. Centrifugal fan, uniform circulation of air in working room
5. Double stage refrigeration compressor, efficient refrigeration
