Constant Environmental Chamber
Name: Constant Environmental Chamber;
Model: TH-100/TH-225/TH-500;
Temperature Range: 70℃ ～ +150 ℃;
Controller: Programmable controller;
Ethernet connection, PC Link
Heating Rate3 ℃ / min
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of constant environmental chamber in China, featured by quality products and low price. Welcome to buy CE approved constant environmental chamber in stock here and get quotation from our factory. Contact us for discount information.
Constant Environmental Chamber is mainly used to simulate temperature and humidity conditions, test the performance of high and low temperature resistance of products in actual use, and help manufacturers find defects of products.
Video
Main Parameter
| Name | Constant Environmental Chamber | |
Model | TH-100 | TH-225 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 |
Interior Volume | 100L | 225L |
Heat load | 1000W | |
Temp. Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | |
Temp. Fluctuation | ± 0.5 ℃ | |
Temp. Deviation | ± 2.0 ℃ | |
Humidity Range | 20% ~ 98% RH | |
Humidity Deviation | ± 2.5% RH | |
Cooling Rate | 1 ℃ / min | |
Heating Rate | 3 ℃ / min | |
Refrigerant | R404A, R23,R449A,R508B | |
Controller | Programmable color LCD touch screen controller | |
Water supply system | Automatic water supply,Water purification system | |
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃ | |
Humidity Sensor | Dry and wet bulb sensor | |
Exterior Material | Steel Plate with a protective coating | |
Interior Material | SUS304 stainless steel | |
Power Supply | 220V 50Hz / 380V 50Hz | |
Maximum Noise | 65 dBA | |
Details of the Advantage
 | Advantages

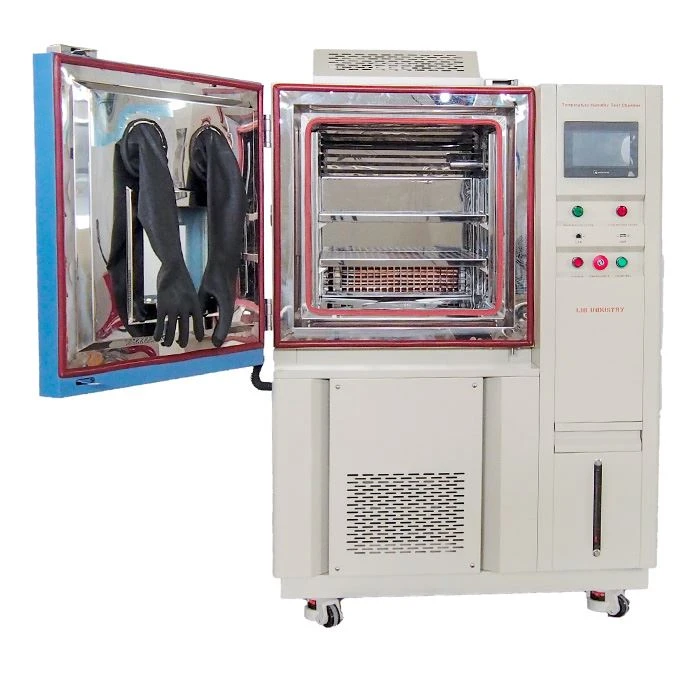

Fully sealed rubber gloves are installed on the door of the temperature test chamber, which can be turned over and viewed during the test |
 |  |
Characteristics
1. Environmental test chamber，There are two rubber gloves on the door for easy observation of samples
2. The temperature and humidity are broad, which can meet the test of various temperature and humidity ranges
3. Water circulation system to save water
4. Centrifugal fan, uniform circulation of air in working room
5.Constant test chamber， Double stage refrigeration compressor, efficient refrigeration
