Temp Chamber
Name:Temp Chamber;
Temperature Range:-70°C~+150°C;
Model: TH-225;
Refrigerant: R404A, R23;
Temperature Fluctuation: ± 0.5 ℃;
Heating rate:3 ℃ / min;
Temperature deviation:± 2.0 ℃;
Standard and Custom;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of temp chamber in China, featured by quality products and low price. Welcome to buy CE approved temp chamber in stock here and get quotation from our factory. Contact us for discount information.
thermal chamber , or Temp Chamber, is a test chamber that simulates extreme temperatures, allowing the user to test the environmental resistance of a product, device, or other object placed within.
Temperature chambers reveal the point at which the test subject experiences stress and give insights that are key to projecting the object’s lifespan
Technical Parameters
| Name | Temp Chamber | ||||
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall dimension (mm) | 860*1050*1620 | 960*1150*1860 | 1180*1350*2010 | 1280*1550*2110 | 1500*1550*2110 |
Capacity | 100L | 225L | 500L | 800L | 1000L |
Temperature range | -20℃ ～+150 ℃ | ||||
Low type | A: -40℃ B:-70℃ C -86℃ | ||||
Huimidity Range | 20%-98%RH | ||||
Temperature deviation | ± 2.0 ℃ | ||||
Heating rate | 3 ℃ / min | ||||
Cooling rate | 1 ℃ / min | ||||
Controller | Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB | ||||
Refrigerant | R404A, R23 | ||||
Exterior material | Steel Plate with protective coating | ||||
Interior material | SUS304 stainless steel | ||||
Standard configuration | 1 Cable hole (Φ 50) with plug; 2 shelves | ||||
Timing Function | 0.1~999.9 (S、M、H) settable | ||||
Advantage Show
 |  |

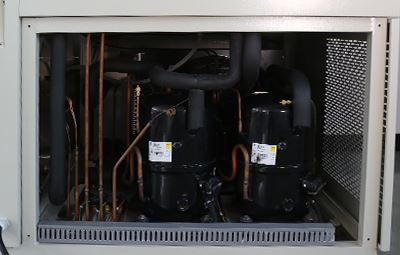

Control panel | Compressor |
Customer Support Services
●Installation
●Training (Training customer employees)
●Calibration
●Preventative maintenance
●Replacement parts
●Assistance via phone or internet
●On-site diagnosis and repair/online diagnosis and repair
Features
• Climatic Chamber
• Protection (phase protection, overheat, over current etc)
• Water Tank with level detector
• Adjustable Shelf
• With RS485/232 output to computer
• Window Software
• Remote fault notification(optional)
• With Viewing Window
