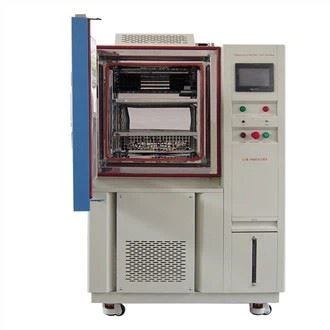

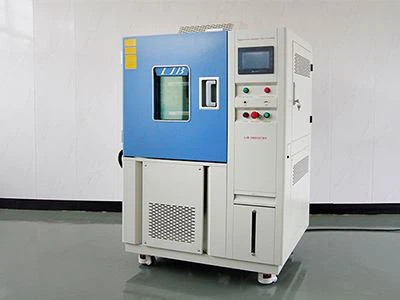

Temperature Machine
Name:Temperature Machine;
Temperature Range:-70°C~+150°C;
Humidity Range:20%-98%RH;
Model: TH-100;
Refrigerant: Environmentally friendly refrigerant;
Temperature Fluctuation: ± 0.5 ℃;
Heating rate:3 ℃ / min;
Standard and Custom;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of temperature machine in China, featured by quality products and low price. Welcome to buy CE approved temperature machine in stock here and get quotation from our factory. Contact us for discount information.
Temperature Machine is the basic environmental test equipment, mainly for temperature and humidity test, temperature and humidity range is wide, extreme high temperature and extreme low temperature test can be conducted
Video
Technical Parameters
| Name | Temperature Machine | ||
|
Model |
TH-100 |
TH-800 |
TH-1000 |
|
Internal dimension (mm) |
400*500*500 |
800*1000*1000 |
1000*1000*1000 |
|
Capacity |
100L |
800L |
1000L |
|
Temperature range |
-20℃ ～+150 ℃ |
||
|
Low type |
A: -40℃ B:-70℃ C -86℃ |
||
|
Humidity Range |
20%-98%RH |
||
|
Temperature deviation |
± 2.0 ℃ |
||
|
Heating rate |
3 ℃ / min |
||
|
Cooling rate |
1 ℃ / min |
||
|
Controller |
The climate chamber adopt programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
||
|
Refrigerant |
Environmentally friendly refrigerant |
||
|
Exterior material |
Steel Plate with protective coating |
||
|
Interior material |
SUS304 stainless steel |
||
|
Standard configuration |
1 Cable hole (Φ 50) with a plug; 2 shelves |
||
|
Timing Function |
0.1~999.9 (S、M、H) settable |
||
Advantage Show
|
|
|

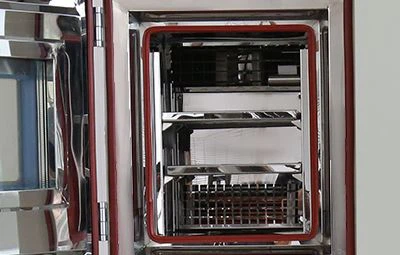

High temperature resistant workroom |

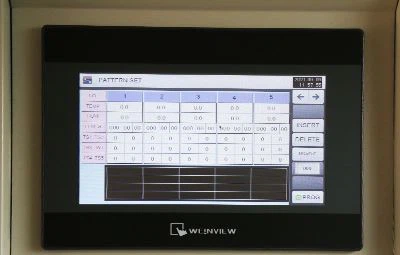

Multilingual controller |
|
|
Key Features
●Steady cooling
The compressor of the LIB test chamber can be turned on at 150°C. We specially designed a refrigeration bypass to prevent the compressor damage caused by the excessively high refrigerant temperature in the initial stage of cooling, which greatly improves the stability of the cooling.
●Remote communication
temperature test chamber standard network port and USB interface are used for computer remote control and download data (CSV and excel format) and view test run music. Optional wireless wifi control and mobile phone SMS alarm.
