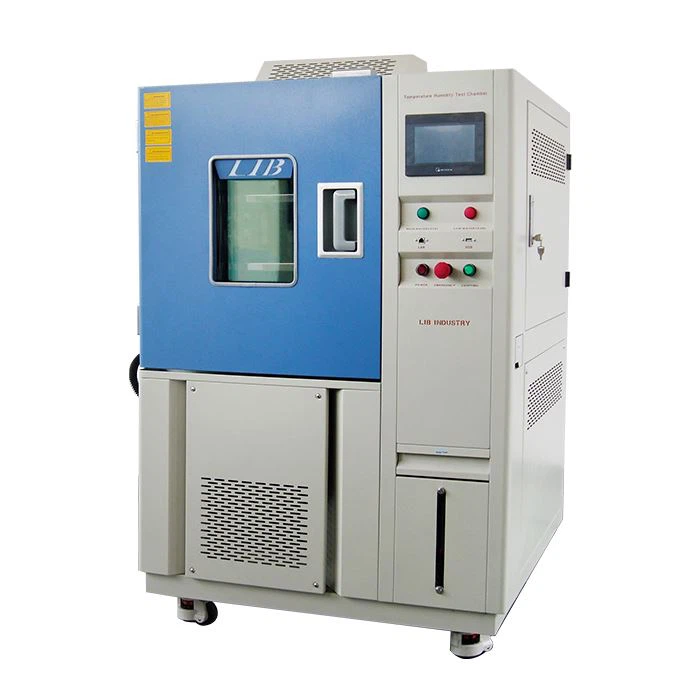

Thermo Environmental Chamber
Name:Thermo Environmental Chamber;
Temperature Range:-70°C~+150°C;
Model: TH-225;
Refrigerant: R404A, R23;
Temperature Fluctuation: ± 0.5 ℃;
Heating rate:3 ℃ / min;
Temperature deviation:± 2.0 ℃;
Standard and Custom;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of thermo environmental chamber in China, featured by quality products and low price. Welcome to buy CE approved thermo environmental chamber in stock here and get quotation from our factory. Contact us for discount information.
Thermo Environmental Chamber is mainly used to test high temperature and low temperature of electronics, electricians and parts and components to test the quality and reliability of products
Technical Parameters
| Name | Thermo Environmental Chamber | ||||
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Temperature range | -20℃ ～+150 ℃ | ||||
Low type | A: -40℃ B:-70℃ C -86℃ | ||||
Huimidity Range | 20%-98%RH | ||||
Temperature deviation | ± 2.0 ℃ | ||||
Heating rate | 3 ℃ / min | ||||
Cooling rate | 1 ℃ / min | ||||
Controller | Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB | ||||
Refrigerant | R404A, R23 | ||||
Exterior material | Steel Plate with protective coating | ||||
Interior material | SUS304 stainless steel | ||||
Standard configuration | 1 Cable hole (Φ 50) with plug; 2 shelves | ||||
Timing Function | 0.1~999.9 (S、M、H) settable | ||||
Advantage Show
 |  |
Touch screen | The compressor |
|
|
Performance Characteristics
●Observation window
The temperature test chamber adopts multi-layer hollow tempered glass, and the inner glued sheet conductive film is heated and defrosted (clearly observe the test process)
●Temperature circulation system
The temperature test machine adopts a special air-conditioning type low-noise long-shaft fan motor, and a stainless steel multi-wing impeller that is resistant to high and low temperatures to achieve strong convection vertical diffusion cycle
●Test holes
The left side of the Environmental test chamber can be used by external test power cord or signal cable (the aperture or number of holes must be increased)
