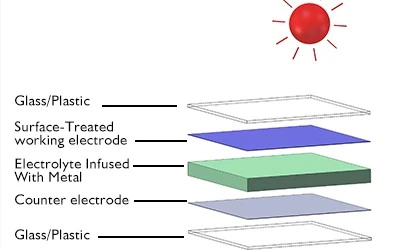

The Xenon Weathering Test Equipment is suitable for ASTM E2141 standard and can be used to test the accelerated aging of electrochromic devices (ECD) in insulating glass units, accelerated aging of electrochromic devices in sealed insulating glass units, suitable for sliding doors, windows, skylights and Inorganic or organic materials such as facade systems.
LIB ASTM E2141 Xenon Arc Test Chamber
The LIB xenon arc aging test chamber meets the temperature cycle, humidity range, ultraviolet radiation, and long-term operation in the ASTM E2141 standard.
|
Model |
XL-S-750 |
|
Chamber Type |
Rotating Holder/Flat Shelf |
|
Irradiation Source |
1 piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter |
|
Temperature Range |
Ambient ～ 100 ℃ ±2℃ |
|
Humidity Range |
50% ~ 98% RH |
|
Irradiance Range |
35~150 W/㎡ |
|
Bandwidth Measurement |
300nm~400nm (340nm or 420nm) |
|
Black Panel Temperature |
BPT 35 ～ 85 ℃ ±2℃ |
|
Radiometer |
UV Radiometer, Tolerance: ±5% |
|
Water supply system |
Automatic water supply,Water purification system,spray system |
