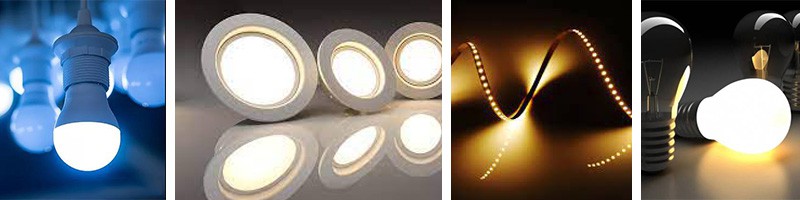

LED lamps are now used in automotive, street lighting, consumer electronics, outdoor displays, and underwater equipment. As these applications continue to expand, manufacturers must ensure that LEDs maintain brightness, stability, and safety under temperature cycling, high humidity, and long-term stress conditions. A climate chamber offers a controlled environment that replicates real-world conditions-heat waves, winter freezes, humidity spikes-making it a critical tool for endurance validation.

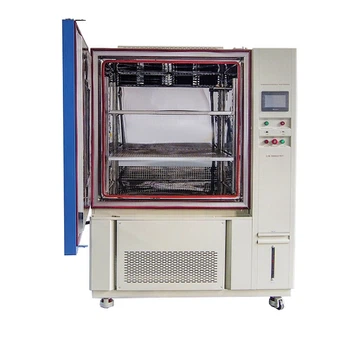

LIB Climate Chamber ensures that LED lamps meet long-term reliability expectations by subjecting them to repeatable temperature and humidity cycles that follow industry standards such as IEC 60068-2-1 (Cold), IEC 60068-2-2 (Dry Heat), IEC 60068-2-30 (Damp Heat), and IEC 62717 (Performance of LED modules). Using controlled temperature ranges from –70 °C to +150 °C and humidity from 20%RH to 98%RH, the chamber provides stable testing conditions that reveal potential failures before products reach the market.

1. Why Do LED Lamps Require Endurance Testing in a Climate Chamber?

LED lamps must undergo endurance testing because their semiconductor structure is sensitive to environmental stress. LED chips are built from P-type and N-type semiconductors, and the light they emit comes from electron–hole recombination at the P–N junction. High heat, humidity, or rapid temperature changes may alter this process, reducing brightness or causing early failure.

Temperature is the main factor influencing LED lifespan. Excessive heat accelerates lumen decay, damages phosphor coatings, and stresses solder joints. Temperature cycling simulates day–night thermal expansion and contraction, following standards such as IEC 60068-2-14.

Humidity affects insulation resistance and sealing performance. Moisture penetration may corrode PCB traces, causing short circuits or flickering. Tests based on IEC 60068-2-30 and IEC 60068-2-78 evaluate long-term moisture resistance.

Real-world reliability demands controlled simulation. Outdoor, automotive, and marine LEDs must survive humidity surges, freezing temperatures, and condensation-conditions reproduced precisely inside a climate chamber.

2. Operating Steps for Testing LED Lamps With an LIB Climate Chamber

A climate chamber recreates the environmental stresses LED lamps face throughout their service life. The chamber maintains stable temperature–humidity levels, logs data automatically, and follows programmed long-term cycles such as 500-hour damp-heat tests or 1000-hour thermal endurance tests.

Step 1: Prepare and Install the LED Lamp

Mount the LED lamp or LED PCB securely on the adjustable internal rack. Ensure all connectors, wires, or sensors are fixed and will not touch the chamber walls.

LIB Climate Chamber Advantage:
– Adjustable racks supporting up to 50 kg
– Custom fixtures available for irregular lamp shapes
– Multi-layer placement without affecting airflow uniformity

Step 2: Set Temperature and Humidity Parameters

Program the target endurance profile-such as 85 °C / 85%RH for 500 hours or –40 °C to +85 °C cycling every 2 hours.
The chamber's touchscreen allows precise 0.1 °C and 0.1%RH setting.

LIB Climate Chamber Advantage:
– ±0.5 °C temperature stability
– ±2.5%RH humidity consistency
– Up to 120 stored programs, 100 steps each
– Integrated PT100 Class A sensor (±0.001 °C resolution)

Step 3: Run the Endurance Test

Start the programmed cycle. The chamber controls temperature, humidity, airflow, and ramp rates (heating up to 3 °C/min; cooling at 1 °C/min) for long-term durability testing.

LIB Climate Chamber Advantage:
– Multi-directional air circulation with ±1.5 °C internal uniformity
– Real-time graphs and data logging to USB or PC
– Stable long-term operation for 500–1000-hour tests without drift

Step 4: Monitor LED Performance

Observe LED function through the double-layer tempered-glass viewing window equipped with anti-frost conductive film.

LIB Climate Chamber Advantage:
– Clear observation under all temperature conditions
– Built-in LED lighting
– Audible alarm (light alarm optional)

Step 5: Remove and Evaluate the LED

After the test ends, remove the LED lamp and conduct optical, electrical, and structural inspection to check for lumen decay, color shift, or moisture ingress.

LIB Climate Chamber Advantage:
– SUS304 stainless-steel interior for clean handling
– Door seals prevent moisture loss and contamination
– Stable chamber structure eliminates vibration-induced sample errors

3. How to Maintain the LIB Climate Chamber After Testing LED Lamps

To ensure accurate performance and long service life after LED endurance testing, the LIB climate chamber should be maintained through routine cleaning and system checks:

Name	Small Climatic  Chamber	Standing Climatic Chamber	Walk-In Climatic Chamber
Capacity	TH-50: 800x1050x950 mm TH-80: 900×1100×1000mm	Capacity: 100L; 225L; 500L; 800L; 1000L	＞20m³
Throughput	Ideal for small components, sensors, boards	Subassemblies or mid-volume batches	Bulk testing of items or vehicles as a whole
Energy Saving	Automatic Moisture Circulation in Humidity System	Automatic Moisture Circulation in Humidity System	Automatic Moisture Circulation in Humidity System
Operational Cost	Lowest	Medium	Highest
Standards Coverage	Full IEC / ISO / ASTM compliance
Noise Level	≤ 65 dBA
Best For	R&D, QA benches, universities	Production QA lines, reliability labs..	Automotive, aerospace system testing...

• Clean the Inner Chamber

Wipe the stainless-steel interior with a soft, non-corrosive cloth.

Remove residual moisture and check for condensate buildup in the drainage area.

• Check the Humidification System

Inspect and clean the water tank, water cup, and pipelines to prevent blockage.

Ensure the float balls operate smoothly.

Verify the humidifier heater's resistance (13–26 Ω) and replace if abnormal.

Clean or replace the wet wick if discolored or moldy.

• Inspect the Heating and Circulation System

Check the heating strip for damage.

Confirm circulation fan blades are balanced and the motor runs without noise.

Ensure the temperature sensor and wiring connections are secure.

• Maintain the Cooling System

Remove dust from the condenser, compressor, and evaporator using pressurized air.

Check the pressure gauge:

5–15 bar when idle

15–25 bar during operation

If pressure is low, refill refrigerant; if it reads zero, repair leakage.

• Electrical System Verification

Clean dust from the controller, relays, contactors, and circuit boards.

Tighten loose wiring and screws.

Ensure all components respond normally during operation.

• Check Sealing and External Components

Inspect the door sealing strip and test-hole rubber plug; replace if hardened or leaking.

Confirm the door lock tightens properly during humidity testing.

• Regular Calibration

Perform periodic calibration following IEC 60068 requirements to maintain testing accuracy.

4. FAQs on Climate Chamber

1. What refrigerant is used in Europe? According to Temperature Humidity Test Chambere latest European refrigerant regulations, can CO₂ refrigerant be used?
According to 2024 European regulations, refrigerants used in laboratory equipment must have a GWP ≤150. The refrigerant used in our Climate Chamber fully meets this requirement. CO₂ refrigerant belongs to a different system technology and cannot be directly used as a substitute.

2. What material and type is Climate Chamber glass in Climate Chamber observation window?
The observation window uses double-layer tempered glass with an internal conductive film for anti-frost performance. It is safe, durable, and ensures clear visibility throughout testing.

3. Can an embedded glass door be installed separately?
Yes, embedded glass doors and other non-standard customizations are fully supported.

4. Is Climate Chamber audible and visual alarm functionality?
The chamber includes an audible alarm as standard. A visual (light) alarm is available as an optional feature.

5. Can Climate Chamber controller be replaced with another brand?
Yes. Controllers such as Siemens or others can be integrated based on user requirements.

Any customization can be made. LIB offers a 3-year warranty and lifetime service. Any issues that cannot be resolved during the warranty period will be replaced free of charge. 24/7 English-speaking after-sales team. Fast shipping within 7-15 days.

For more information about LED endurance testing or maintenance support for LIB climate chambers, please contact LIB Industry now.
