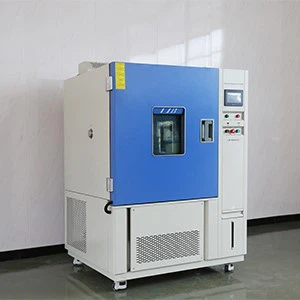

Temperature And Humidity Chamber

LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of temperature and humidity chamber in China, featured by quality products and low price. Welcome to buy CE approved temperature and humidity chamber in stock here and get quotation from our factory. Contact us for discount information.



Temperature And Humidity Chamber is also called temperature and humidity calibration chamber specially developed by our company for the calibration of temperature and humidity meter. This equipment ensures precise verification of sensors and instruments, providing stable and repeatable environmental conditions. It can also perform temperature & humidity cycling, 85℃/85% high humidity testing,  freeze–thaw humidity test, and so on.



1. Extreme Temperature Coverage: With a working range from -70°C to +150°C, the chamber is suitable for rigorous testing of materials and components under both extreme cold and heat, fulfilling requirements for various industries including electronics, aerospace, and automotive.

2. Wide Humidity Range: The temperature humidity chamber maintains humidity levels from 20% (10%) RH to 98% RH, accurately simulating both arid and high-moisture environments.

3. Uniform Air Distribution: An integrated centrifugal fan delivers consistent airflow, eliminating hot/cold or wet/dry zones within the chamber. Every test sample is exposed to uniform conditions, ensuring more accurate calibration and testing results.



Video

---







Parameters

---



Name	Temperature And Humidity Chamber
Model	TH-100	TH-225	TH-500	TH-800	TH-1000
Internal dimension (mm)	400*500*500	500*600*750	700*800*900	800*1000*1000	1000*1000*1000
Overall dimension (mm)	860*1050*1620	960*1150*1860	1180*1350*2010	1280*1550*2110	1500*1550*2110
Capacity	100L	225L	500L	800L	1000L
Temperature range	-20℃ ～+150 ℃
Low type	A: -40℃   B:-70℃   C -86℃
Humidity Range	20%-98%RH
Temperature deviation	± 2.0 ℃
Heating rate	3 ℃ / min
Cooling rate	1 ℃ / min
Controller	Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
Refrigerant	Environmentally Friendly Refrigerant
Exterior material	Steel Plate with protective coating
Interior material	SUS304 stainless steel
Standard configuration	1 Cable hole (Φ 50) with plug; 2 shelves
Timing Function	0.1~999.9 (S,M,H) settable



Product Feature

---

1. According to the actual requirements of numerous temperature and humidity chambers for choose.

2. The built-in water recycling and filtration system purifies and reuses water to maintain humidity levels efficiently

3. An integrated centrifugal fan delivers consistent airflow, eliminating hot/cold or wet/dry zones within the chamber.

4. LIB provides many other test chambers, inlcuding temperature chambers, thermal shock chambers, salt fog test chambers for your need.

5. Offer CE and ISO 17025 calibration certificate







Contact us today to get price and specs today .
