How does an IP69K test chamber differ from IP67 or IP68 testing?

In modern industries such as automotive, electronics, outdoor lighting, and industrial equipment, products are frequently exposed to harsh environments where dust, high-pressure water jets, and hot washdowns are common. Standard ingress protection levels like IP67 or IP68 mainly focus on immersion, but they do not fully simulate the extreme conditions that occur in real-world industrial cleaning or vehicle wash systems. To ensure long-term reliability, manufacturers increasingly require more rigorous testing that reproduces these demanding environments.

Many laboratories and manufacturers already rely on LIB equipment in their daily testing work. One customer from Russia shared their experience after using the spray test chamber: "Hello Karen, thank you for the reminder. The spray chamber works. We use it often. In case of any issues we'll let you know." This feedback reflects how LIB chambers are used frequently in real testing environments, providing stable performance and dependable results for ongoing product verification.

To meet the growing demand for higher ingress protection testing, LIB developed the IP69K Test Chamber, designed to simulate the most severe dust and water exposure conditions. By combining IP6X dust-tight testing with IPX9K high-pressure, high-temperature water spray, the system allows manufacturers to verify product durability under realistic industrial scenarios while maintaining precise and repeatable test conditions.

The IP (Ingress Protection) rating consists of two digits.

1. First digit (0–6): Protection against solid particles (dust, sand).

2. Second digit (0–9K): Protection against water ingress (drops, jets, immersion).

IP69K is the highest level of industrial water protection. While IP67 and IP68 indicate temporary or continuous immersion protection, IP69K simulates high-pressure, high-temperature water jets combined with complete dust-tightness.

The key takeaway: IP69K ensures that products withstand both high-pressure water jets and dust, while IP67/IP68 only addresses immersion under calm conditions.

IP69K testing must meet IEC 60529, ISO 20653, IEC 60068‑2‑68, DIN 40050‑9, ASTM, and MIL standards. LIB's test chambers implement these rigorously.

Method 1: High-Pressure Water Jet Test

Procedure:

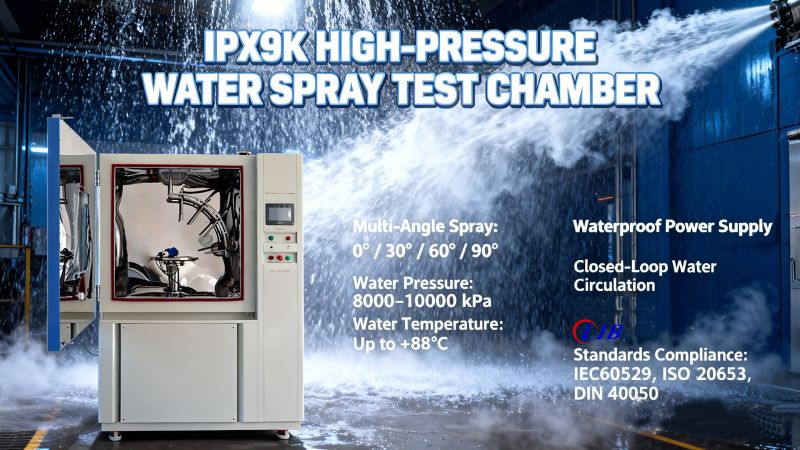

1. Water Spray Setup: Four stainless-steel nozzles deliver water at +88 °C, 8000–10000 kPa, covering 0°, 30°, 60°, and 90° angles. Each nozzle sprays 30 seconds per position.
LIB Advantage: Closed-loop water circulation maintains precise pressure and temperature, reduces water use by up to 80%, and prevents nozzle blockage.

2. Specimen Mounting: Items up to 50 kg are placed on an adjustable turntable (200–400 mm height, tilt up to 15°). Smaller items can be suspended to ensure full exposure. Custom fixtures prevent movement during high-pressure spray.
LIB Advantage: Adjustable holders and fixtures prevent floating or shifting, ensuring repeatable and accurate results.

4. Water Flow Control: PID-controlled electromagnetic flow meters maintain 14–16 L/min flow with ±0.01 kPa pressure deviation.
LIB Advantage: Precise flow ensures certification-ready tests compliant with IEC 60529 and ISO 20653.

Method 2: Dust Ingress Test (IP6X)

Procedure:

1. Circulate 50 µm dust at 2–4 kg/m³ through a vertical airflow system at ambient to +50 °C.

2. Heating tubes prevent caking, ensuring even distribution.

3. Specimens can be on the floor or suspended.

LIB Advantage: Vertical airflow and uniform distribution guarantee complete dust-tight testing. Built-in observation windows and LED lights allow monitoring without interrupting the cycle.

IP Test Chamber For Dustproof and Waterproof test



1. High-Efficiency IP69k Test Machine

2. IP6X Dust Ingress Test Chamber

3. IEC 60529 IPX9k Equipment

4. Sustainable IP68 Test Machine

5. Walk In Dust Chamber

6. IPX5/IPX6 Water Jetting Test Chamber

LIB provides complete custom IP testing laboratory solutions, integrating different ingress protection test systems into one efficient and well-organized workspace. Whether your lab requires dust testing, water spray testing, or high-pressure jet testing, LIB can design and deliver a laboratory that supports IP6X dust protection tests, IPX1–IPX9K water ingress tests, and other specialized environmental simulations within a single coordinated environment.

Test Area	LAN and USB	Controller

Our engineers design flexible laboratory layouts that allow multiple test chambers to operate simultaneously while maximizing space efficiency and workflow convenience. The layout can include independent testing zones, centralized control areas, and dedicated sample preparation spaces to ensure safe, organized, and efficient operations. The design can also accommodate future expansion as testing requirements grow.

To improve efficiency and sustainability, LIB integrates automated water circulation and dust recovery systems into the laboratory design. These systems reduce water consumption, minimize dust waste, and significantly lower operating costs while maintaining stable and repeatable testing conditions. Intelligent control systems allow operators to monitor and manage all chambers from a central interface, improving productivity and test consistency.

All LIB IP laboratories are designed to meet international testing standards, ensuring that products can be evaluated according to globally recognized requirements. The systems support compliance with standards such as IEC, ISO, DIN, ASTM, and MIL, making the laboratory suitable for industries including electronics, automotive, lighting, military equipment, and consumer products.

Beyond equipment supply, LIB also offers professional technical consultancy throughout the entire project lifecycle. Our team assists with laboratory planning, equipment configuration, testing program development, and the design of custom fixtures for specific products. From initial concept to installation and commissioning, LIB works closely with customers to ensure the laboratory meets both technical requirements and operational goals.

With LIB's expertise and integrated solutions, your IP testing laboratory will be capable of performing comprehensive ingress protection testing efficiently, accurately, and reliably, supporting product certification, quality assurance, and long-term research and development.

Q1: Can small specimens move during testing?
A: No. Custom fixtures hold items firmly during rotation and high-pressure spraying.

Q2: How is water flow regulated?
A: PID-controlled electromagnetic flow meters maintain 14–16 L/min, 8,000–10,000 kPa ±0.01 kPa.

Q3: Can devices remain powered during testing?
A: Yes. The waterproof power supply allows live-function testing, critical for automotive sensors and industrial electronics.

Q4: Which standards does the chamber comply with?
A: IEC 60529 (IP6X/IPX9K), ISO 20653, IEC 60068‑2‑68, DIN 40050‑9, ASTM, and MIL standards.

Q5: How does LIB ensure repeatability?
A: Closed-loop water and dust circulation, PID-controlled flow, and adjustable fixtures guarantee precise, repeatable, and certification-ready results.

LIB's IP69K Test Chamber delivers industry-leading dual protection against dust and high-pressure water, giving engineers and manufacturers confidence in real-world performance. By simulating the harshest conditions-high-speed road dust, industrial washdowns, and extreme weather-the system ensures that electronics, sensors, lighting, and automotive components remain fully operational.

Any customization can be made. LIB offers a 3-year warranty and lifetime service. Any issues that cannot be resolved during the warranty period will be replaced free of charge. 24/7 English-speaking after-sales team. Fast shipping within 7-15 days.

Whether you're testing ADAS sensors, EV powertrains, underbody control modules, or outdoor lighting, LIB chambers reproduce the exact stress your devices face in the field. Customizable turntables, adjustable fixtures, and live-function testing provide unmatched flexibility, while advanced PID control ensures consistent water and dust conditions.

Contact LIB Industrytoday to customize your IP69K Test Chamber, schedule a live demo, or receive technical support-elevate your dust and waterproof testing capabilities with confidence.
