How does an ISO 9227 Salt Spray Test Chamber work?

Corrosion is one of the quiet reasons products fail early, whether that's a car fastener, an outdoor sensor housing, or a decorative coin finish. If a manufacturer cannot show proof that a part resists salt exposure, buyers and regulators will not trust it on the market.

This article explains how an ISO 9227 Salt Spray Test Chamber works, why LIB Industry builds this equipment to meet global standards, and how customers such as the Central Bank of Peru have used it to validate their products.,

A customer from Canada shared their experience with LIB's Salt Spray Test Chamber: "For now, we are satisfied with previous product and we don't need more chambers. If something comes up will contact you. " highlighting their continued satisfaction with the previous chamber.

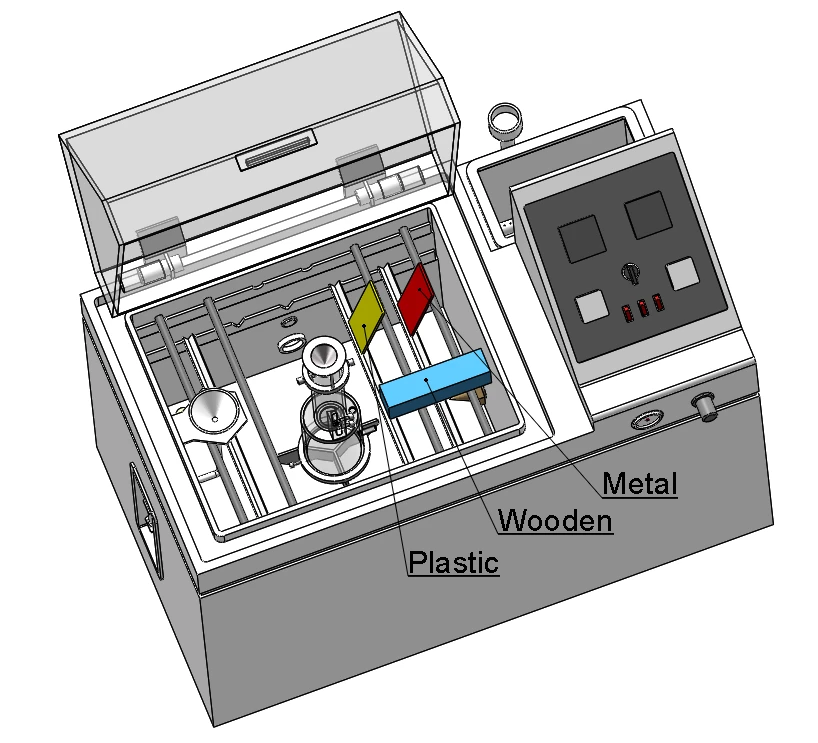

LIB Industry has spent years refining salt spray equipment so that every unit produces a stable, repeatable fog environment. The core of this equipment is a corrosion resistant spray tower paired with high quality quartz nozzles. These nozzles atomize a 5% NaCl solution into a fine mist under 83 kPa of pressure, and the fog settles at a rate of 1 to 2 mL per 80 cm² per hour. This deposition rate matches the ISO 9227 requirement exactly, so results collected in one lab can be trusted and compared against results from another lab anywhere in the world.

Temperature control matters just as much as the fog itself. PT-100 Class A sensors monitor the chamber at 0.001°C accuracy, and a built in preheating and humidification system keeps the internal temperature at 35 ± 2°C with a fluctuation of only ± 0.5°C. Because salt corrosion speeds up or slows down with small temperature shifts, this level of control is what makes a test result meaningful rather than random.

Standards This Equipment Complies With

LIB Industry's ISO 9227 Salt Spray Test Chamber is built to run every recognized variation of the salt spray method. The table below shows the main standards and what each one is used for.

Step by Step: How the ISO 9227 Test Method Runs

A typical ISO 9227 NSS cycle on this equipment follows a clear sequence.

• First, a 5% NaCl solution is prepared and adjusted to a pH between 6.5 and 7.2.
• Second, the solution is atomized through the quartz nozzles at 83 kPa, producing a continuous fog inside the sealed chamber.
• Third, the internal temperature is held at 35 ± 2°C for the full duration of the test, which commonly runs anywhere from 24 hours to over 1000 hours depending on the material and the customer's specification.
• Fourth, a salt spray collector measures the deposition rate throughout the test to confirm it stays within the 1 to 2 mL per 80 cm² per hour range.
• Finally, samples are removed, rinsed, dried, and inspected for red rust, white rust, blistering, or coating loss, and the results are logged against the exposure time.

LIB Popular Spray Test Chambers and Climate Test Chambers



Cyclic Salt Fog Corrosion Test Chamber

Controlled Temperature, Humidity & Salt Spray for Realistic Simulation, Highly Popular.

Salt Spray Test Chamber

Temperature & Salt Spray Control Only, Precision Salt Spray Measurement, Standard Compliant.

ASTM G85 Salt And SO2 Salt Fog Corrosion Test Chamber

Controlled SO₂, Temperature, Humidity & Salt Spray for Industrial Environment Simulation.

Xenon Arc Chamber Weatherometer

Realistic Sunlight Simulation, Water-Cooled Lamp for Stability & Durability, Top Choice for Coating Companies.

UV aging test chamber

UV Light Simulation Test, Stable Light Source, High Uniformity of Light Exposure.

Walk-in Salt Fog Corrosion Test Chamber

Large Test Pieces, High-Volume Testing; Flexible Customization of Size & Function.

In January 2023,  reached out with questions about salt spray testing for coin production, and by August of that same year the General Manager followed up with more detailed inquiries. It turned out the material in question was coin stock, and the customer needed to confirm how well the metal would resist corrosion over years of circulation.

After running performance tests on LIB Industry's Salt Spray Test Chamber, the customer highlighted several advantages. Test accuracy was one of the biggest factors, since the chamber's tight temperature and deposition control gave them confidence that the corrosion data reflected real world exposure rather than lab error. Safety was another priority, and the equipment's CE and IEC compliant electrical design, along with built in alarms for abnormal temperature or pressure, met their internal safety requirements without extra modification. The customer also valued that the equipment could be customized at no extra charge to match their specific coin dimensions and test fixtures.

Beyond the hardware, the after sales support made a real difference. A 3 year warranty combined with lifetime technical support meant the customer never had to worry about long term costs. The support team walked through setup and calibration patiently, and LIB Industry also offered on site training so operators could run tests independently and confidently. Combined with corrosion resistant A3 steel construction that holds up over years of daily use, the equipment gave the customer a dependable, cost effective way to validate coin durability.

Inquire

While ISO 9227 covers continuous neutral, acetic acid, and copper accelerated salt spray, ASTM G85 is built for cyclic and modified salt fog testing, which better simulates real weather cycles that include drying and wetting phases.

For manufacturers choosing between the two, the decision usually comes down to the end use environment. A product that sits in a stable indoor or sealed environment is well served by ISO 9227. A product exposed to outdoor weather cycles, like automotive undercarriage parts, benefits more from the cyclic exposure pattern of ASTM G85.

Q1: How long does a typical ISO 9227 test take?
Test duration depends on the material and the customer's internal standard, ranging from 24 hours for a quick screening to over 1000 hours for long term durability validation.

Q2: Does LIB Industry ship this equipment internationally?
Yes, LIB Industry ships to customers worldwide and provides installation guidance along with the shipment so the equipment can be set up correctly on arrival.

Q3: What happens if the equipment needs repair after the warranty period?
LIB Industry offers lifetime technical support, and if remote troubleshooting cannot resolve the issue, a replacement unit is dispatched with spare parts guaranteed within 7 to 15 days.

Q4: Can this equipment be customized for non-standard sample sizes?
Yes, customization is available at no extra charge to fit different specimen shapes, sizes, and fixture requirements.

Choosing a salt spray test chamber depends on your test standard, corrosion environment, sample material, sample size, and required exposure duration. LIB Industry provides corrosion testing solutions for different applications, including anISO 9227 Salt Spray Test Chamber for continuous neutral, acetic acid, and copper-accelerated salt spray testing, a Cyclic Salt Fog Corrosion Test Chamber for alternating wet and dry corrosion cycles, and an ASTM G85 Salt and SO2 Salt Fog Corrosion Test Chamberfor modified salt fog and industrial environment simulation.

Share your required test standard, sample material, specimen dimensions, chamber volume, salt solution, temperature range, test duration, and any special fixture requirements. Based on these factors, the LIB Industry team can help identify the appropriate salt spray testing configuration for your application.

LIB Industry Technical Team (info@libtestchamber.com) – Technical information, testing methods, product specifications, and application guidance for salt spray testing, corrosion resistance evaluation, ISO 9227 testing, and environmental reliability testing.
