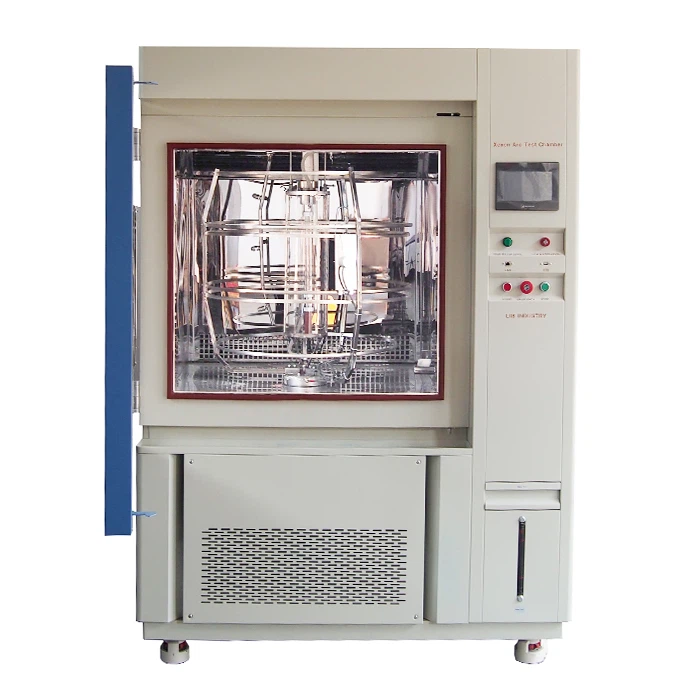

Xenon Arc Chamber Weatherometer
Xenon Arc Chamber Weatherometer uses a 4500W water-cooled xenon lamp to simulate full-spectrum sunlight, temperature, humidity, and water spray.
Application:Aging Test,Textiles;
Sample holder:Adjustable speed, 1r/min
Irradiance Range: 150W/㎡
Bandwidth Measurement:300~400nm;
300~400nm: -40～ 100 ℃ ±2℃;
Black Panel Temperature: 35 ～ 85 ℃ ;
Humidity Range30% ~ 98% RH;
Irradiation Source4500w water-cooled xenon arc lamp;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of xenon arc chamber weatherometer in China, featured by quality products and low price. Welcome to buy CE approved xenon arc chamber weatherometer in stock here and get quotation from our factory. Contact us for discount information.
Xenon arc chamber weatherometer for paint , also known as sunshine radiation protection aging test device, simulates full sunlight spectrum xenon arc lamp to represent the destructive waves under different environment.
Accelerated weathering chamber is suitable for quality testing of rubber printing products in metrology, some light-resistant materials, weather resistance, automotive materials, coatings, rubber, pigments, adhesives, fabrics, and other scientific research laboratories, technical supervision departments.
Video
Technical Parameters
| Name | Xenon Arc Chamber Weatherometer |
|
Model |
XL-S-500 |
|
Internal Dimension (mm) |
500*600*700 mm |
|
Overall Dimension (mm) |
1000*2450*1990 mm |
|
Sample holder |
Adjustable speed, 1r/min |
|
Chamber Type |
Rotating Holder |
|
Irradiation Source |
1 piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter |
|
Irradiance Range |
150W/㎡ |
|
Bandwidth Measurement |
300~400nm |
|
Chamber Temperature Range |
-40～ 100 ℃ ±2℃ |
|
Black Panel Temperature |
BPT 35 ～ 85 ℃ ±2℃ |
|
Humidity Range |
30% ~ 98% RH |
|
Water Spray Cycle |
1~9999H59M (Adjustable) |
|
Controller |
Programmable color LCD touch screen controller |
|
Radiometer |
UV Radiometer, Tolerance: ±5% |
|
Exterior Material |
Steel plate with protective coating |
|
Interior Material |
xenon aging test chamber adopt SUS304 stainless steel |
|
Thermal Insulation |
Polyurethane foam and insulation cotton |
|
Observation Window |
Interior lighting, double-layer thermo stability silicone rubber sealing |
Application
Colour Fastness Test
Cracking Test
Aging Test
Blistering
Features
1. xenon chamber equipped with blackboard thermometer to adjust the test temperature in the chamber.
2. Weathering chamber can control xenon arc lamp light time.
3. Control water spray cycle.
4. Weatherometer equied water circulation.
5.automatic constant temperature(circulating water cooling)
6.LCD touch screen controller can independantly control water spray, light, temperature, humidity, rotary table.
7.large glass observation window
More Aging Test Chamber
The weather aging test chamber is divided into xenon test chamber and uv test chamber,
Xenon test chamber simulation full spectrum test product aging performance,
UV test chamber simulation ultraviolet light test aging, uv weathering chamber uses UVA-340, UVB-313 fluorescent UV lamps for a variety of test conditions
Xenon test chamber
Model:XL-S-750
Designed for accelerated aging tests, this equipment simulates sunlight, temperature, humidity, dew, and rain in accordance with ASTM G155-21 and other relevant standards.

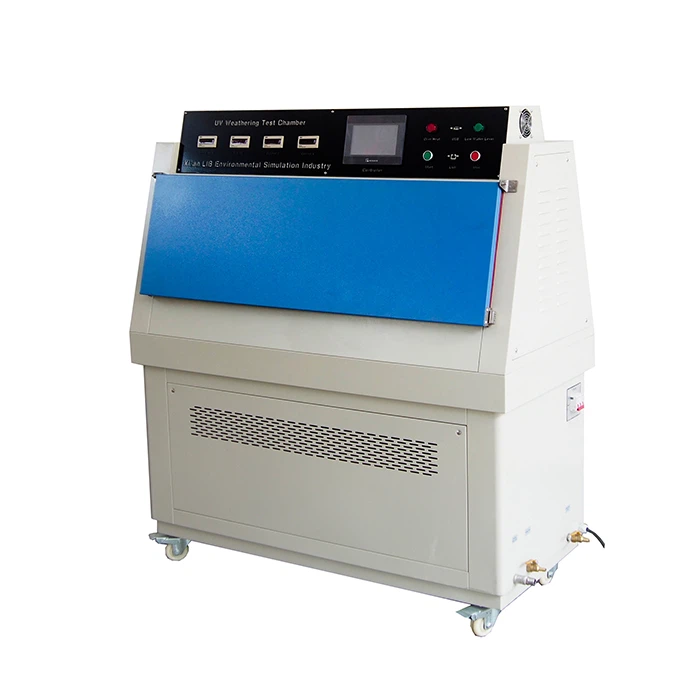

Modle:UV-SI-260
Equipped with eight UV fluorescent lamps (UVA-340/ UVB-313), this equipment delivers stable uv output (290–400 nm) compliant with ASTM G154 and ISO 4892-3.
