What does an IP54 Test Chamber test?

A connector that lets in dust, or a streetlight that lets in rain, does not usually fail on the first day. It fails months later, in the field, after the

warranty check is already closed and the repair bill lands on someone else's desk. That is why engineers ask for real numbers before a product ships, not guesses.

"The chamber is working well so all good. Can I upgrade for 200kg and what would the cost be?" - Vicki, LIB DI-2000 customer

This real customer feedback came from a LIB DI-2000 IP5X Dust Test Chamber user in the United States. After using the chamber successfully, the customer asked about upgrading the equipment to handle a 200 kg test load, showing the chamber was already supporting their ongoing testing needs.

This article explains what an IP54 Test Chamber actually tests, how LIB Industry builds and proves this equipment, and how a Thailand customer used it to solve a real dust problem on vehicle exteriors.

The Two Tests Behind the IP54 Rating

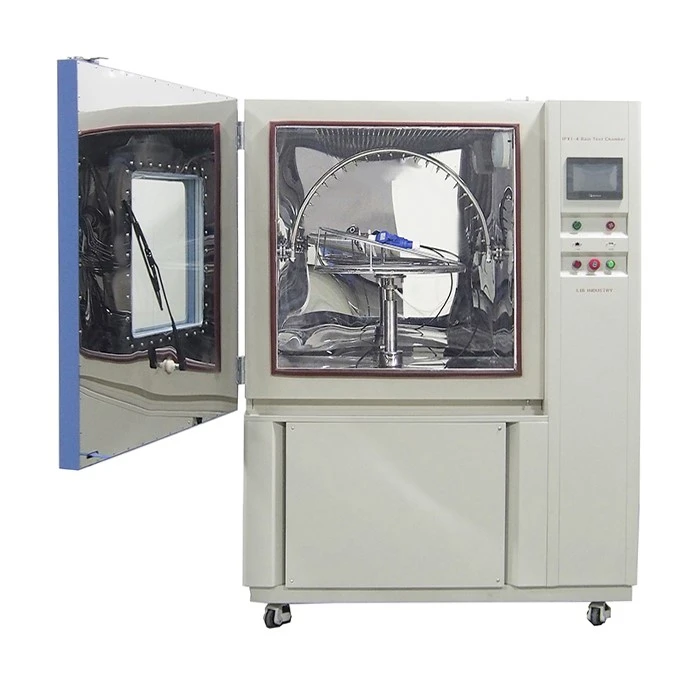

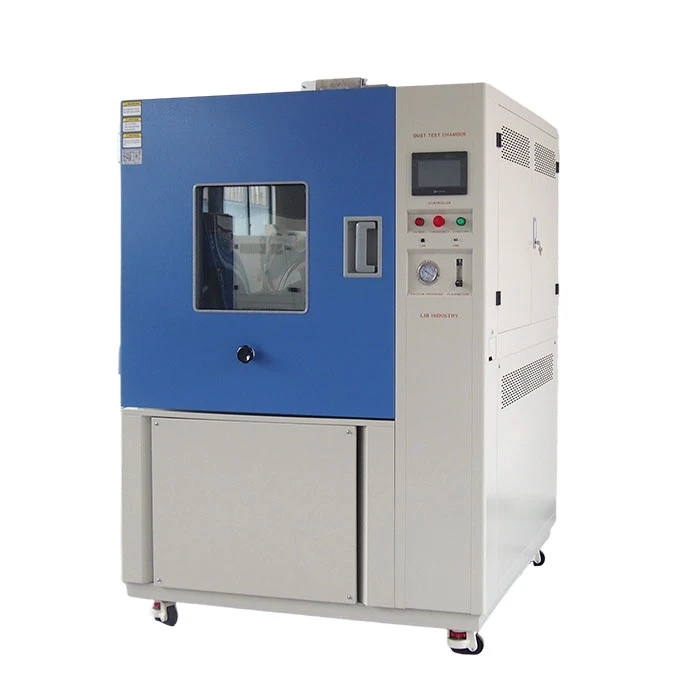

IP54 is not one single test. It is two separate ratings read together: the "5" for dust and the "4" for water. Because dust and water testing use opposite conditions, one dry and one wet, LIB Industry builds them as two independent pieces of equipment: the IP5X Sand and Dust Test Chamber and the IPX4 Waterproof Test Chamber. The IP5X equipment blows talcum powder around a sealed sample to check if dust reaches the inside. The IPX4 equipment sprays water from an oscillating tube to check if water reaches the inside. A product only earns the IP54 mark after it passes both, separately and completely.

LIB Industry's Strength as a Reliable IP54 Test Chamber Supplier
LIB Industry has built this equipment with a 800 x 800 x 800 mm workroom and a 510 L interior volume for the IP5X model, and a 900 x 900 x 900 mm internal chamber for the IPX4 model, both large enough to hold full-size automotive and industrial parts. Every workroom uses SUS304 stainless steel, and the outer body uses a 4 mm A3 steel plate, so the equipment resists rust and corrosion even after years of daily use. Every order comes with a 3-year warranty, lifetime technical service, and a 24/7 English-speaking after-sales team, and standard production and shipping takes only 7 to 15 days.

Standards Met by LIB Industry's IP54 Test Chamber
Below is a quick reference of the main standards this equipment is built to follow, and where each one applies.

A American automotive customer needed to check whether their vehicle exterior housings could keep dust away from internal wiring and sensors. Following IEC 60529, LIB Industry's IP5X Test chamber used talcum powder with a wire diameter of 50 μm and a mesh gap of 75 μm, at a concentration of 2 to 4 kg per cubic meter. The powder first passed through the mesh sieve, then through a heated tube so it would not clump, then circulated evenly around the sample by pump for a set test duration, with the sample held on a turntable rotating at 0 to 7 r/min so every surface received even exposure. After the run, the housing was opened and checked for any powder that had reached the inside.

The customer chose a 2000 L custom build, and LIB Industry handled the full process from design to shipping as one continuous service. The result matched their internal performance targets, and the team was satisfied with several things beyond the test data itself. The equipment is safe to operate, with overcurrent, over-temperature, phase sequence, and leakage protection built in, and it is priced competitively for the build quality it delivers. It is certified to CE and IEC standards, so results are accepted internationally, and the readings stay accurate and repeatable test after test. Every build can be customized at no extra design cost, and the 3-year warranty with lifetime service means the customer never worries about long-term support. The after-sales engineers are patient and technically strong, on-site training is available so operators learn the controls properly, and the stainless-steel interior keeps resisting corrosion long after installation.

IP54 and IP64 share the same water rating but differ in dust protection, and the gap between them matters more than the single digit suggests.

IP54 accepts a small, harmless amount of dust entering the housing, while IP64 requires that no dust enters at all, which is why IP64 testing often adds a mild vacuum inside the sample to pull dust toward any weak seal. Choose IP54 for parts near sensitive electronics where a small dust trace will not affect function, such as outdoor lighting or general enclosures. Choose IP64 for parts where any dust could cause a failure, such as sealed optical sensors or precision connectors. LIB Industry can advise which level fits a specific part after reviewing its design and its environment.

Popular Dust and Water environemntal Test Chambers



IP6X Dust-Tightness Test Chamber

Reliable Dust Ingress Protection Testing, Accurate IP6X Sealing Performance Verification

MIL-STD-810H METHOD 510 Dust And Sand Test Equipment

Military-Grade Environmental Reliability Testing, Simulates Extreme Desert Dust And Sand Conditions

IP69k Test Equipment

High-Pressure Hot Water Protection Testing,

Advanced Waterproof And Dustproof Validation



Ip65 Testing Machine

Reliable Water And Dust Protection Testing, IEC 60529 Compliant Ingress Protection Verification



IP54 Test Chamber



Reliable Protection, Precise Testing



IP66K Test Devices



Dustproof Performance, Water Protection

Q1: Can this equipment be customized for larger vehicle parts?
Yes, LIB Industry builds custom workroom sizes, including the 2000 L model used in the Thailand project, at no added design fee.

Q2: How long does delivery take?
Standard orders ship within 7 to 15 days, and the team keeps customers updated at each stage.

Q3: What if the equipment needs service after installation?
Every order includes a 3-year warranty and lifetime technical support, with a 24/7 English-speaking team and on-site training available on request.

Q4: Does the equipment meet international certification requirements?
Yes, it is built to IEC 60529, ISO 20653, GB/T 4208, and GB/T 30038, so test reports are accepted by customers and regulators worldwide.

Choosing an IP54 Test Chamber depends on your required protection level, test standard, product design, sample size, and testing environment. LIB Industry provides ingress protection testing solutions for different applications, including an IP54 Test Chamber for combined dust and water ingress testing, an IP64 Test Chamber for stricter dust-tightness verification with the same IPX4 water protection level, and specialized dust and water test equipment for higher IP ratings.

Share your required IP rating, test standard, product type, sample dimensions, chamber size, test duration, and any special fixture requirements. Based on these factors, the LIB Industry team can help identify the appropriate dust and water ingress testing configuration for your application.
