What is IPX6 Waterproof？

In today's electronics and consumer goods industries, water resistance has become more than a feature-it's a requirement. Devices exposed to outdoor environments, industrial settings, or harsh weather need to maintain functionality even under heavy water exposure. The IPX6 rating indicates a high level of protection, where equipment can withstand powerful water jets without ingress, ensuring durability and user safety.

LIB's IPX6 Waterproof Test Chamber is specifically engineered to validate such protection. By simulating intense water exposure under controlled conditions, it allows manufacturers to confirm that their products meet strict international standards and perform reliably in real-world conditions. With precise control over water pressure, spray angles, and testing duration, LIB ensures repeatable and accurate results for every test cycle.

Reasons and Purpose of IPX6 Waterproof Testing

Waterproof testing protects devices from potential water damage. Electrical components, connectors, and enclosures can short-circuit or corrode if water enters. IPX6 testing ensures the integrity of seals and casing, safeguarding both product performance and consumer safety.

Another reason is regulatory compliance. Many markets require proof of water resistance, particularly for outdoor electronics, automotive components, and industrial instruments. IPX6 testing aligns with IEC 60529 and ISO 20653 standards, providing recognized certification that devices can resist high-pressure water jets.

IPX6 testing also enhances product reputation. Consumers and businesses trust devices that survive harsh conditions, from sudden rainstorms to industrial cleaning procedures. By demonstrating IPX6 compliance, brands differentiate themselves in competitive markets and reduce warranty claims due to water-related failures.

Practical Applications of IPX6 Waterproof Testing

Outdoor Electronics

Cameras, lighting systems, and power tools often face rain or high-pressure washing.

IPX6 testing ensures these products continue operating reliably under such exposure.

Automotive Components

Connectors, sensors, and displays require IPX6 certification.

Testing simulates real-world spray and splashing to validate durability in wet road conditions or car washes.

Industrial Equipment

Equipment exposed to cleaning, high humidity, or accidental splashes benefits from IPX6 testing.

Waterproof control panels, electrical boxes, and switches prevent downtime, costly repairs, and safety hazards.

Marine & Boating Equipment

Electronics such as navigation devices, bilge pumps, and deck lighting are frequently exposed to splashes and spray.

IPX6 testing ensures reliable performance in harsh marine environments.

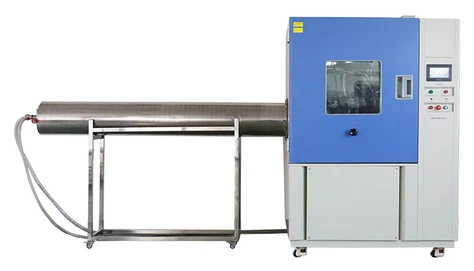

Precise and Water-Saving Control of the LIB IPX6 Waterproof Test Chamber According to IEC 60529 Requirements

LIB's IPX6 test chamber follows IEC 60529 to ensure precise and repeatable water ingress testing. Nozzles are securely fixed with screw holes, preventing high-pressure spray from moving and guaranteeing accurate results. The chamber features a return water filtration system, collecting water in an 800 L tank and filtering debris through a 1.5 mm mesh. This closed-loop design allows a full IPX6 test cycle of approximately 8 minutes while saving water and extending equipment life.

Observation windows are made of tempered glass and can be wiped clear, ensuring operators monitor tests without risk of damage. Additional features, such as vacuum pressure gauges and flow meters, enable real-time monitoring of water flow and environmental conditions, meeting IEC 60529 and ISO 20653 standards.

LIB provides comprehensive support for IP waterproof testing, including installation, training, and maintenance. All chambers are constructed from SUS304 stainless steel and 4 mm A3 steel with a 2 mm protective coating for durability. PID programmable touch screens allow up to 120 programs, each with 100 segments, supporting multilingual interfaces for global operations. Safety measures include over-current, earth leakage, phase sequence, and over-temperature protections.

FAQs about Waterproof Test Chambers

1. What is the size of the water tank for no-housing IPX5/IPX6, and how long can it be used for a full test?
The water tank volume is 800 L. For IPX6 testing, a full tank allows continuous use for about 8 minutes, meeting the standard testing duration.

2. For no-housing IPX5/IPX6, during testing, the nozzles are directly placed on the rack. Are they fixed? If not, would high-pressure water cause them to shake?
Nozzles are not placed arbitrarily. According to IEC 60529, nozzles must be fixed to prevent high-pressure water from causing movement. The rack has reserved screw holes; during operation, the nozzle is inserted and manually screwed in to ensure stable spray direction and accurate results.

3. What is the standard diameter, height, and adjustable range of the turntable for no-housing IPX1–IPX6?
The turntable has diameters of 200 mm and 600 mm, height 65 cm, adjustable from 15 cm to 100 cm, accommodating various sample sizes while ensuring compliance.

4. After completing one test cycle, does the water go through a filtration system again?
Yes, returning water is filtered through a 1.5 mm mesh to remove debris, maintaining clean recycled water, extending equipment life, and guaranteeing reliable results.

5. For IPX5/IPX6 testing, the spray pipes are located at the rear. Does this cause water to hit the door and observation window, making it difficult to see? Will it damage the door or window?
The observation window is tempered glass, so there is no risk of damage. Operators can clearly monitor the process, as water mist does not affect observation.

LIB Environmental is one of China's professional manufacturers of climatic and environmental testing chambers. With high-quality IPX6/IPX5 ingress test chambers for sale, LIB offers competitive prices and reliable support.

Contact LIB Industry to inquire about purchase options, technical specifications, and service solutions.
