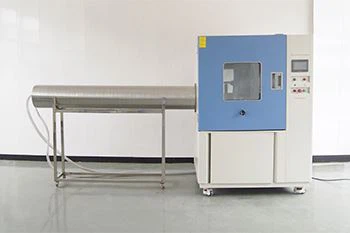

IP66 Test Chamber
Model:IP66 Test Chamber;
Standard: IEC 60529, ISO20653;
Controller: Programmable controller;
Door Lock: Electromagnetic lock;
Application:Electronic, street lamp;
Maximum Noise:65 dBA;
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of ip66 test chamber in China, featured by quality products and low price. Welcome to buy CE approved ip66 test chamber in stock here and get quotation from our factory. Contact us for discount information.
LIB provides IP66 test equipment, dust chamber and rain test chamber, can meet the IP66 test requirements, mainly used in street lights, LED lights, electrical equipment, cables, photovoltaic panels, transformers and other products, LIB has standard IP66 equipment, but also provide customized products.
●IP66 Enclosure: IP rated as “dust tight” and protected against heavy seas or powerful jets of water.
Parameter
 | IP6X dust sand test chamber |
Model | DI-800 |
Internal Dimension (mm) | 800*1000*1000 |
Overall Dimension (mm) | 1040*1450*1960 |
Interior Volume (L) | 800 |
Temperature Range | Ambient ~ +50℃ |
Humidity Range | < 30% RH |
Normal Wire Diameter | 50um |
Nominal Width of a Gap Between wires | 75um |
Specimen Power Outlet | Dust-proof socket 16A |
Vacuum System | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube |
Standard Configuration | Sample shelf, dust wiper, talcum powder(5kgs) |
 | IPX6 rain test equipment |
| Model | R56-800C |
Workroom dimension (mm) | 800*800*800 D*W*H |
External dimension (mm) | 950*3150*1800 D*W*H |
Diameter of Turntable (mm) | 600 |
Turntable Rotation Speed | 0~7r/min (Adjustable) |
Internal Diameter of IPX5 Nozzle | 6.3mm |
Internal Diameter of IPX6 Nozzle | 12.5mm |
Water Flow Rate IPX5/ IPX6 | 12.5L/min ±5% / 100L/min ±5% |
Water Supply System | Water tank, booster pump, Automatic water supply, Water purification system |
Standard | IEC 60529, ISO20653 |
IP66 Defining Characteristics
◆Complete protection from dust, oil, and other non-corrosive material
◆Complete protection from contact with the enclosed equipment
◆Protection from water, even from powerful jets of water
◆Custom with cutouts, insulation, hinges, latches or locks
●Protection
Able to protect against powerful water jets
●Description
Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects.
●Test Method
Test duration: at least 3 minutes
Water volume: 100 liters per minute
Pressure: 100 kPa at a distance of 3 m
