What Is IPX7 Waterproof Test And How To Perform It

IPX7 Waterproof Test is one of the waterproof grades tests determined according to the IEC60529 standard, which is commonly used internationally to define the protection of an interface against liquid and solid particles. This standard quantifies the different categories of protection, mainly for solid foreign objects entering the shell (including tools, fingers or dust, etc.) and for water (water entering the outer shell by condensation, flushing, immersion, etc. causing harmful effects on the equipment).

Immersion

Drops

The two digits behind IP indicate the protective strength of the equipment shell against solid foreign objects and water intrusion. The first digit indicates the level of electrical equipment against dust and foreign objects, and the second digit indicates the degree of confinement of the equipment against moisture and water intrusion, and the larger the digit, the higher the protection level.

Sometimes, the level of protection is unknown or hasn't been tested. In these cases, an 'X' replaces the numeral. IPX waterproof rating is divided into a total of 8 levels, respectively from IPX1 to IPX8, the waterproof ability is enhanced in turn. IPX0 indicates that it is not waterproof at all. IPX7 Waterproof means the device has level 7 water sealing, while its protection against dust is unknown.

IPX is the international certification system for waterproof level. It is the most common technical indicator used to mark the waterproof level of the product on outdoor, diving, and many other instruments and equipment. Headlamps, GPS, watches and other electronic devices are often marked with IPX.

》》》To receive comprehensive or customized solutions and pricing for the IP Waterproof Testing Chamber, please contact us at info@libtestchamber.com.

So, from the table above, we can know that if you see the product labeled IP68, it represents its dustproof/waterproof level, in the dustproof specification level of IP6X protection level, as for the waterproof part is IPX8 waterproof level, but ..... The IP68 label means that it is the highest level of protection specification? In fact, such a concept is wrong!

Simply put, IP68 is a level of protection, but does not mean that he covers IP 61 ~ 68 in these stages, and IPX8, IPX7, IPX6, IPX5, etc., each digital level is [separate certification] and [separate testing], and their respective test items are different!

Just because a test piece can be soaked in water doesn't mean it can be sprayed by water! Similarly, just because it can be ejected by water, does not mean it can be soaked in water!

 Method name: Water ingress protection test (IPX1–IPX6).
 Test equipment: LIB Combined Waterproof Test Chamber.
 Test conditions:
The test specimen is placed on the internal rotating turntable inside the chamber. Different spray or drip systems are automatically activated according to the required IP level. The chamber integrates a drip box, oscillating tube, and high-pressure jet nozzles to simulate vertical dripping, rainfall, splashing water, and powerful water jets. Water flow rate, spray angle, pressure, and distance are controlled according to IEC 60529 requirements.
 Test time:
Depends on the IP protection level selected, typically 10 min for IPX1–IPX4 and at least 3 min for IPX5–IPX6.

The advantages of LIB Combined Waterproof Test Chamber

Name		Combined Waterproof Test Chamber
Dimension	Internal dimensions	900*950*950mm -D*W*H
	Overall dimensions	1180*1420*1920mm -D*W*H
	IPX5 IPX6 tube dimensions	Length is 2000mm, diameter is 325mm
IPX1 IPX2	Drip box	600*600mm
	Hole spacing	20mm
	Hole diameter	φ0.4mm
IPX3 IPX4	Oscillating tube radius	400mm
	Spraying hole diameter	φ0.4mm
	Hole spacing	50 mm
	Number of holes	25
	Oscillating tube range	0~ ±180°
	Swivel velocity speed of tubes	60°/seconds
IPX5 IPX6	Nozzle diameter	Dia6.3mm for IPX5 nozzle diameter, Dia12.5mm for IPX6 nozzle diameter
	Water flow rate	12.5L/min ±5% for IPX5 test, 100L/min ±5% for IPX6 test
	Core of the substantial stream	circle of approximately 40 mm diameter at 2,5 m distance from nozzle
Turntable	Diameter	600mm
	Height	350~600mm, adjustable
	rotation speed	1~5r/min

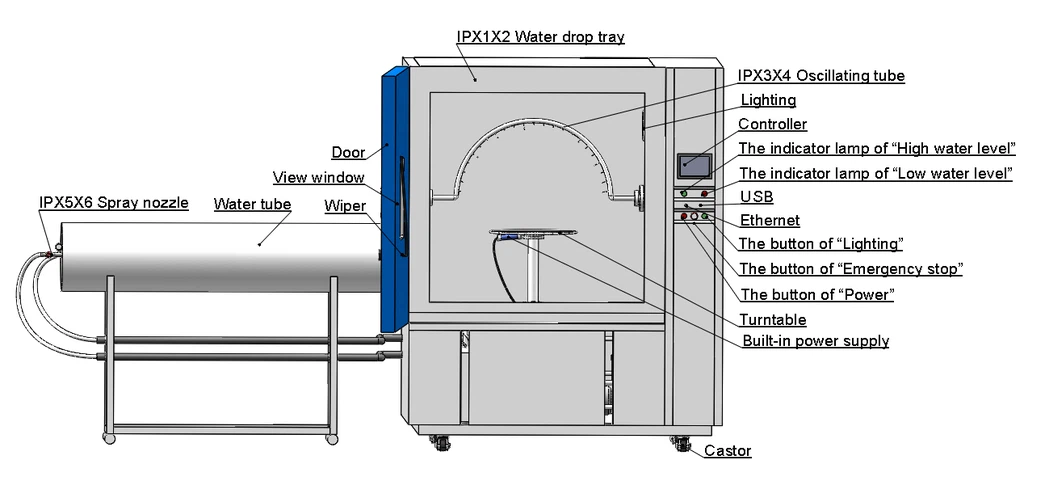

1. Multi-level Test Integration Helps Save Lab Space

LIB's Combined Test Chamber (IPX1–IPX6) integrates the drip box (IPX1/IPX2), oscillating tube (IPX3/IPX4), and jet nozzles (IPX5/IPX6) in a single chamber. This allows all six levels of water ingress testing to be performed using one piece of equipment, reducing laboratory space requirements and simplifying equipment management.

2. Automatic Water Filtration and Circulation System

The chamber is equipped with a closed-loop water recycling system and automatic water refill function. This design reduces water consumption and supports long-term continuous testing while enabling unattended operation.

3. Compliance with International Standards Ensures Data Authority

The chamber performs in accordance with IEC 60529.

IPX1: Drip rate of 1 mm/min for at least 10 minutes; specimen mounted on a rotating turntable at 1 rpm.

IPX2: Same drip rate; specimen tilted 15° in four directions for 2.5 minutes each (total 10 minutes).

IPX3: Oscillating tube sprays water with ±60° swing, hole diameter 0.4 mm, nozzle spacing 50 mm, spray rate 0.07 L/min per hole; test duration ≥10 minutes.

IPX4: Swing angle extended to ±180°, other parameters the same as IPX3 to simulate more severe splashing conditions.

IPX5: Special nozzle with 6.3 mm orifice, water flow 12.5 ± 0.625 L/min, pressure 30–100 kPa, spray distance 2.5–3 m, duration ≥3 minutes covering all specimen surfaces.

IPX6: 12.5 mm nozzle diameter, water flow 100 ± 5 L/min, pressure 100 ± 5 kPa, same spray distance as IPX5, duration ≥3 minutes.

4. Flexible Sample Handling for Diverse Product Requirements

The chamber includes a height-adjustable turntable and a 15° inclined plate specifically for IPX2 testing. The turntable supports loads up to 50 kg and can be customized to accommodate different product sizes.

5. SUS304 Stainless Steel for Durability and Environmental Compliance

The chamber structure is fully made of SUS304 stainless steel, offering excellent corrosion resistance and long-term durability under high humidity, water spray, and continuous testing environments.

6. Multi-Angle Spray Systems

Different spray systems simulate multiple waterproof scenarios:

IPX1/IPX2: Stainless steel drip box providing uniform vertical dripping at 1 mm/min.

IPX3/IPX4: Stainless steel oscillating tube with φ0.4 mm evenly spaced nozzles and ±60° swing to simulate rainfall and splashing water.

IPX5/IPX6: High-pressure spray nozzles delivering 12.5 L/min and 100 L/min flow respectively, with adjustable angle and 2.5–3 m spray distance.

These systems ensure accurate and repeatable waterproof testing for automotive components, outdoor electronics, electrical enclosures, and industrial devices.

7. Transparent Viewing Window and Built-in Lighting for Real-Time Monitoring

A large observation window, manual wiper, and built-in LED lighting allow operators to visually monitor the test process in real time, facilitating experiment recording and fault diagnosis.

8. Waterproof Sample Power Supply

The chamber includes a built-in waterproof power supply and adjustable-height turntable with tilt support, enabling live power-on testing of electronic devices during waterproof testing for more realistic performance evaluation.

》》》For more technical information and details about our Combined Waterproof Test Chamber, please feel free to email us at info@libtestchamber.com.

• Method name: Temporary time immersion test.
• Test equipment: Immersion tank.
• Test conditions: After the sample is put into the immersion tank, the distance from the bottom of the sample to the water surface should be at least 1 m. The distance between the top of the sample and the water surface should be at least 0.15 m.
• Test time :30 min.

The advantages of LIB IPX7 Waterproof Test Equipment :

• Fixing device for safety

  The tank is of cylindrical design, and the bottom must be supported by a tripod. Designed a Z-shaped foot with three M8 holes, which has good grip and requires user to fix the equipment with screws to ensure safety.

• Sample holder

  We have designed a height-adjustable sample holder to prevent the sample from floating during the immersion test.

• Pressure limiting protection

  An independent manual setting pressure limiting device is specially designed to ensure effective control of the pressure in the tank.

If you want a more detailed test of the waterproof performance of test pieces, you can also buy other rain test chamber to perform other waterproof test.

Xi 'an LIB Industry is a company specializing in environmental testing equipment. We have a huge R & D team and professional technical consultants, are committed to continuous innovation in technology and improve the process, manufacturing industry cutting-edge products. At LIB Industry, we can provide you with professional rain test equipment.

If you are interested in this IPX7 waterproof test and IPX7 test chamber, you can contact LIB Indsutry at any time, we will provide you with the most professional test program and product introduction. Xi 'an LIB Industry, your most professional partner!
