Definition
IPX9K waterproof testing is a rigorous test method that assesses the ability of a product to withstand high-pressure and high-temperature water jets without leaking water or failing. This test is performed by spraying water jets at the product in different directions and angles at a pressure of up to 100 bar and a temperature of up to 80 °C. This test is designed to simulate extremely harsh weather conditions and is considered one of the most severe tests for water resistance.
Application
IPX9K waterproof testing is mainly used in industries that require high-level waterproofing, such as automotive, aerospace, military, and marine industries. This test is commonly performed on automobile components, electronic equipment, and other products that are intended to be used in wet or harsh environments. This testing ensures that products are able to withstand exposure to extreme weather conditions, including heavy rain, high-pressure water sprays, and even immersion in water.
IPX9K waterproof testing is an essential tool for ensuring the durability and reliability of products that are exposed to harsh weather conditions. By subjecting products to rigorous testing, manufacturers can confidently guarantee their products' ability to withstand tough conditions, providing peace of mind to their customers and ensuring the highest quality and safety of their products.
Test equipment
|
|

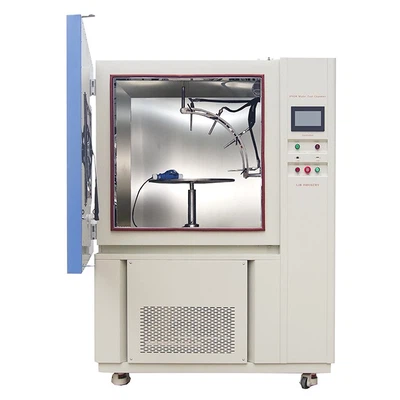

Name:IPX9K waterproof test chamber Standard: ISO20653,IEC60529; Water Spray Temperature: Ambient ~ +88℃; Water Spray Pressure: 8000-10000Kpa; Spray Nozzle: four, 30 Seconds each position; Water Flow Rate: 14L-16L/min; Testing Platform Height: 200-400 nm (Adjustable); Standard & customized; |
 |
 |
Advantages of LIB IPX9K Waterproof Test Chamber

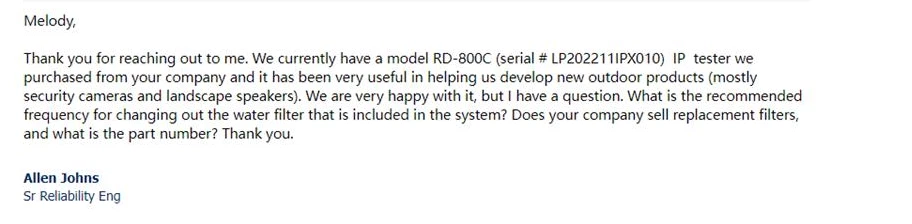

Recently, Allen Johns, a Senior Reliability Engineer, shared his experience with the RD-800C IP tester, explaining that the system has played an important role in their development of new outdoor products. According to him, the equipment has been particularly helpful when testing devices such as security cameras and landscape speakers. He emphasized that features such as the automated rotating platform, high-pressure multi-angle spray system, and the ability to conduct live operational testing provide significant practical benefits during real laboratory validation processes.
✉✉✉👇
1. Realistic Simulation of Extreme Water Environments
The chamber is engineered to reproduce some of the most severe water exposure conditions found in real applications. High-temperature water combined with powerful multi-angle jets recreates environments similar to industrial washdowns, vehicle cleaning systems, and severe storm exposure. By closely matching real operating conditions, manufacturers can identify potential sealing weaknesses during development rather than after products reach the market.
2. Highly Stable Water Pressure and Temperature Control
Testing reliability depends heavily on maintaining stable parameters throughout the entire test cycle. LIB's control system precisely regulates water pressure, temperature, and flow rate, ensuring that every test run remains consistent and repeatable. This stability allows engineers to compare test results across multiple product prototypes and maintain confidence in certification data.
3. Flexible Test Configuration for Different Product Sizes

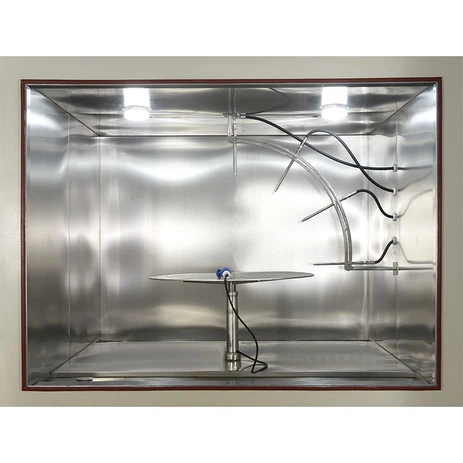

Products requiring waterproof testing vary greatly in size-from compact sensors and cameras to larger electrical assemblies. The adjustable turntable height, stable load capacity, and spacious chamber design allow a wide range of products to be tested in their real installation orientation. This flexibility enables laboratories to simulate practical mounting conditions and obtain more realistic performance data.
4. Continuous Functional Testing During Water Exposure
Many electronic products must remain operational during exposure to water. The chamber supports live-function testing through integrated waterproof power connections, allowing engineers to monitor product performance while high-pressure hot water is being applied. This capability is particularly valuable for devices such as security cameras, sensors, and outdoor lighting systems where functionality during harsh weather conditions is critical.
5. Durable Construction for Long-Term Reliability
The chamber structure is designed for long-term laboratory operation under demanding conditions. Corrosion-resistant materials, reinforced structural components, and industrial-grade spray systems ensure reliable performance during repeated high-pressure tests. This durability minimizes downtime and maintenance requirements, supporting continuous product development and certification work.
6. Efficient Water Management and Environmental Sustainability
The built-in water circulation and filtration system reduces water consumption by recycling test water during operation. This design lowers operating costs while maintaining stable pressure and temperature conditions. Laboratories can therefore perform intensive testing cycles while minimizing resource usage and environmental impact.
Whether you are testing automotive electronics, outdoor cameras, sensors, or industrial equipment, LIB provides both standard and customized IPX9K testing systems to match different product sizes and laboratory requirements. Our engineering team supports customers from equipment selection to installation and technical guidance, ensuring reliable and repeatable environmental testing.
Contact LIB Industry today to learn more about our IPX9K waterproof test chambers and discover how our solutions can enhance your product reliability testing.
