Xenon Arc Lamp Device And UV Weather Aging Test Chamber For Color Fastness And Durability

When materials such as plastics, coatings, or textiles are exposed to sunlight, heat, and moisture, they can fade, crack, or become brittle. To ensure color fastness and long-term durability, manufacturers rely on laboratory equipment that can accurately reproduce outdoor environmental conditions.

LIB's Xenon Arc Lamp Device and UV Weather Aging Test Chamber provide precise, standards-compliant accelerated aging solutions. By simulating full-spectrum sunlight or targeted UV exposure, these systems enable R&D and quality teams to predict product performance, reduce time-to-market, and ensure reliability in real-world environments.

Why Choose Xenon Arc Lamp Device and UV Weather Aging Test Chamber for Color Fastness and Durability?

When products are exposed to sunlight and outdoor weather, they are continuously influenced by ultraviolet radiation, temperature fluctuations, moisture, and rainfall. These environmental factors accelerate the chemical reactions that cause color fading, gloss loss, embrittlement, and surface cracking. Because it is impractical to wait for years of natural exposure to evaluate product durability, laboratory accelerated weathering tests are used to replicate these effects within a much shorter time.

The Xenon Arc Lamp Device is widely used because it provides the most realistic simulation of natural sunlight. It employs a 4500 W water-cooled xenon lamp that emits light across the full 280–800 nm spectrum. Since this range covers ultraviolet, visible, and infrared wavelengths, the device can reproduce all the major components of sunlight that contribute to material degradation. Because UV light triggers photochemical reactions, visible light affects color tone and gloss, and infrared radiation causes heating, the combination of all three produces an accurate aging process that reflects real outdoor exposure.

Because different environments have different sunlight intensities, the device allows the irradiance to be adjusted between 0.30 and 1.10 W/m²·nm. Therefore, users can simulate conditions ranging from mild indoor daylight to high-intensity tropical sunlight. In addition, interchangeable optical filters-such as daylight, window glass, or extended-UV types-are used to control the spectrum precisely, ensuring that materials are tested under conditions matching their actual applications.

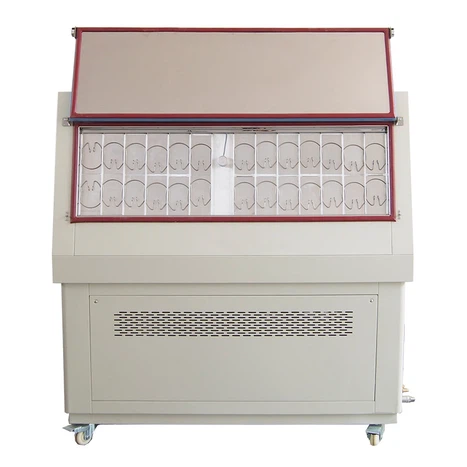

In contrast, the UV Weather Aging Test Chamber is selected when the focus is specifically on UV degradation. Because ultraviolet light below 400 nm is responsible for most polymer aging reactions, this chamber uses UVA-340 and UVB-313 fluorescent lamps (40 W each) to provide a targeted spectrum from 290–400 nm. Therefore, it allows rapid evaluation of material resistance to UV-induced discoloration and mechanical weakening. Since many outdoor failures occur from repeated exposure to sunlight and moisture, the chamber also maintains a black-panel temperature of 35–85 °C ± 2 °C and relative humidity above 95 %, creating realistic cycles of condensation, dew, and heating.

Both xenon and UV aging tests are effective because they reproduce light, heat, and moisture under stable, controllable, and repeatable conditions. Therefore, manufacturers can observe color fading, surface chalking, or structural change before products reach the market. Because test parameters such as temperature, humidity, and irradiance are precisely controlled (±2 °C and ±2.5 % RH), the results are consistent and scientifically valid.

Moreover, because the systems use closed-loop water recovery, up to 80 % of water can be reused, making operation both efficient and environmentally sustainable. Automated PID control, programmable test cycles, and real-time irradiance monitoring ensure accuracy and data traceability. Therefore, test results can be confidently used for product certification, research, and quality assurance.

Since both devices meet international standards including ASTM G151, G154, G155, ISO 11341, and ISO 4892-3, their results are globally recognized. In conclusion, because the xenon lamp reproduces full-spectrum sunlight while the UV chamber focuses on short-wave radiation, using both together provides a complete and reliable solution for evaluating color fastness, coating performance, and long-term durability of materials.

Similarities and Differences Between LIB Xenon Arc Lamp Device and UV Weather Aging Test Chamber

Feature	Xenon Arc Lamp Device	UV Weather Aging Test Chamber
Light Spectrum	Full 280–800 nm (UV–Visible–IR)	UV-focused 290–400 nm
Applications	Automotive, architectural coatings, outdoor plastics	Indoor polymers, packaging, and preliminary R&D
Temperature Range	Ambient ~ 100 °C ±2 °C	Ambient ~ 90 °C ±2 °C
Humidity Range	50 % ~ 98 % RH	≥95 % RH
Water Spray Cycle	1 – 9999 h 59 m adjustable	1 – 9999 h adjustable
Sample Holder	Rotating, customizable (up to 42 samples)	Flat or 3D aluminum holders (up to 52 samples)
Key Standards	ASTM G151-19, G155, D6695, ISO 11341, D7869	ASTM G154-16, G151, ISO 4892-3
Best For	Full sunlight and outdoor exposure simulation	UV-only accelerated degradation

Both chambers allow programmable daylight and dark cycles such as 102 minutes light + 18 minutes spray or 6 hours dark + 95 % RH, providing flexible replication of real-world environmental variations. Users can select between Daylight and Window Glass filters in xenon systems for tailored spectrum control, or utilize the UV chamber for high-intensity UV degradation screening.

xenon lamp and filters

Xenon Rotating sample holder

FAQs about Xenon Arc Lamp Device and UV Weather Aging Test Chamber

Q1: What are the advantages of LIB xenon lamps?
LIB xenon lamps offer exceptional cost performance and maintenance convenience. Each lamp provides a service life up to 1600 hours, lowering operational costs. The lamp can be manually cleaned for extended lifespan and stable long-term performance, ensuring consistent irradiance and reduced downtime.

Q2: Can the photoaging test chamber simulate both daytime and nighttime conditions, and can illumination and spraying be performed simultaneously in the laboratory?
Yes. The photoaging chamber can simulate day–night environmental cycles using programmable light and spray intervals. Whether illumination and spraying occur simultaneously depends on the selected testing standard-ASTM, ISO-as each specifies unique light and moisture cycles. Test programs should therefore be configured according to the applicable standard to ensure reliable and comparable results.

Q3: How is Xenon calibrated?
Calibration in LIB xenon chambers focuses on temperature and humidity uniformity. A 9-point test method measures values at multiple positions to ensure environmental consistency. Irradiance calibration is completed at the factory using certified radiometer probes, so users can operate the system directly without additional calibration.

Q4: What is the purpose of water heating at the bottom of the UV chamber?
The water heating system at the chamber bottom ensures high-humidity environments up to 98 % RH, as required by ASTM G154 and ISO 4892-3 standards. Heated water produces vapor for condensation testing, accurately replicating real-world high-moisture conditions to assess material weather resistance and coating durability.

Q5: Is the sprayed water heated or cold?
The UV chamber uses room-temperature water for spray cycles. However, heated-water spray can be custom-designed for specific test needs-this is a non-standard customization that LIB can provide upon request.

LIB's Xenon Arc Lamp Device and UV Weather Aging Test Chamber combine precision, reproducibility, automation, and sustainability. Fully compliant with ASTM G151, G154, G155, ISO 11341, and ISO 4892-3 standards, these instruments provide accurate, repeatable, and globally recognized data for color fastness and material durability testing.

Contact LIB Industry today to get your exclusive Xenon and UV accelerated aging testing solutions.
